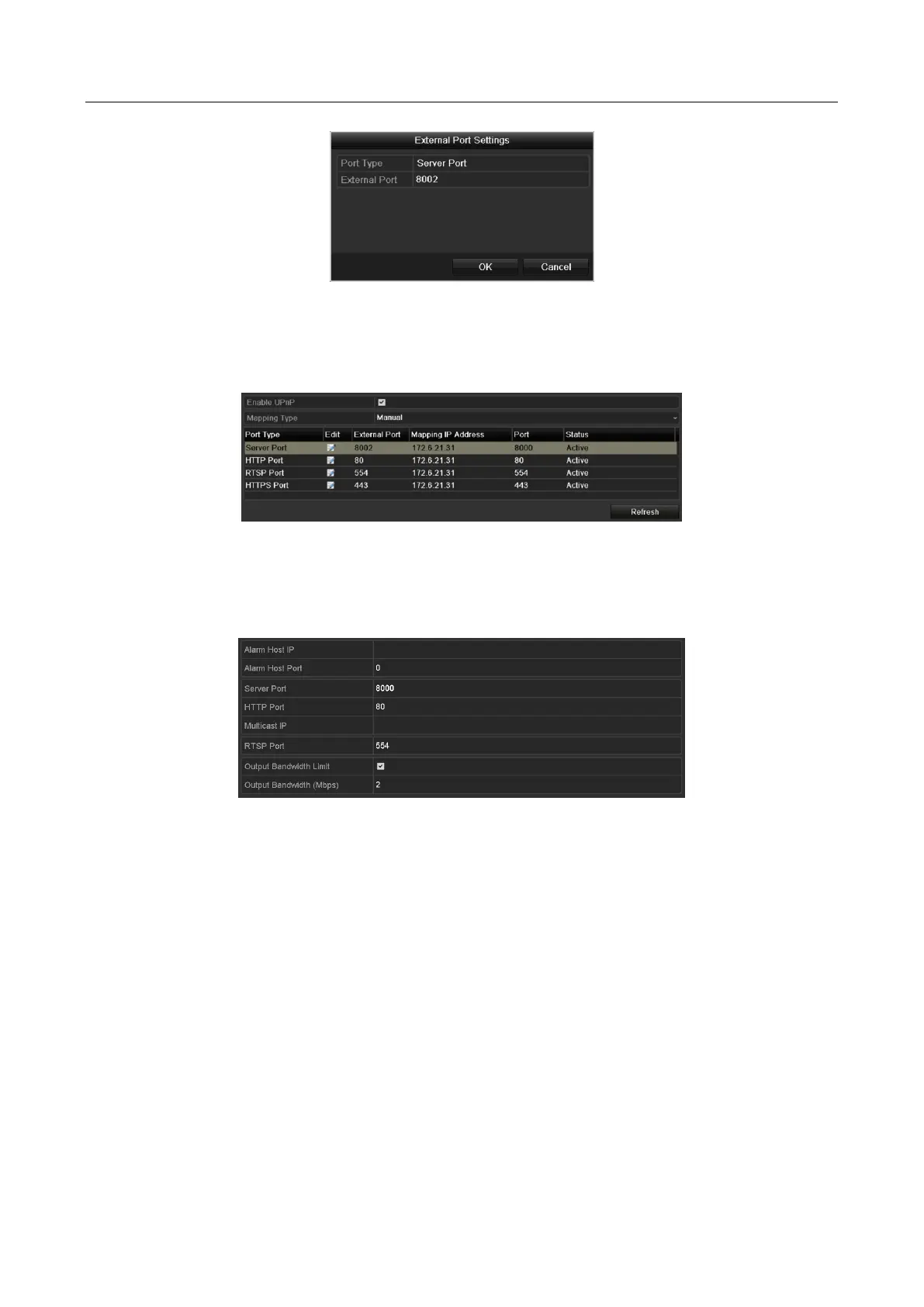

Figure 12-12 External Port Settings Dialog Box
2) Click Apply button to save the settings.
3) You can click Refresh button to get the latest status of the port mapping.
Figure 12-13 UPnP™ Settings Finished-Manual
12.2.6 Configuring More Settings
Step 1 Go to Menu > Configuration > Network > More Settings.
Figure 12-14 More Settings Interface
Step 2 Configure the remote alarm host, server port, HTTP port, multicast, and RTSP port.
 Alarm Host IP/Port: With a remote alarm host configured, the device will send the alarm
event or exception message to the host when an alarm is triggered. The remote alarm
host must have the CMS (Client Management System) software installed.
The Alarm Host IP refers to the IP address of the remote PC on which the CMS (Client
Management System) software (e.g., iVMS-4200) is installed, and the Alarm Host Port
must be the same as the alarm monitoring port configured in the software (default port is
7200).
 Multicast IP: The multicast can be configured to realize live view for more than the
maximum number of cameras through network. A multicast address spans the Class-D IP
range of 224.0.0.0 to 239.255.255.255. It is recommended to use the IP address ranging
from 239.252.0.0 to 239.255.255.255.

HIKVISION DS-7216HQHI-K1 Specifications

General

Product color	Black
Channels quantity	16 channels
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, 3840 x 2160, 2560 x 1440
Audio input	RCA
BNC input ports	16
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	25 W
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
