Quick Operation Guide of DS-7200-SH/SV/SL and DS-7300/8100-SH Series DVR
29

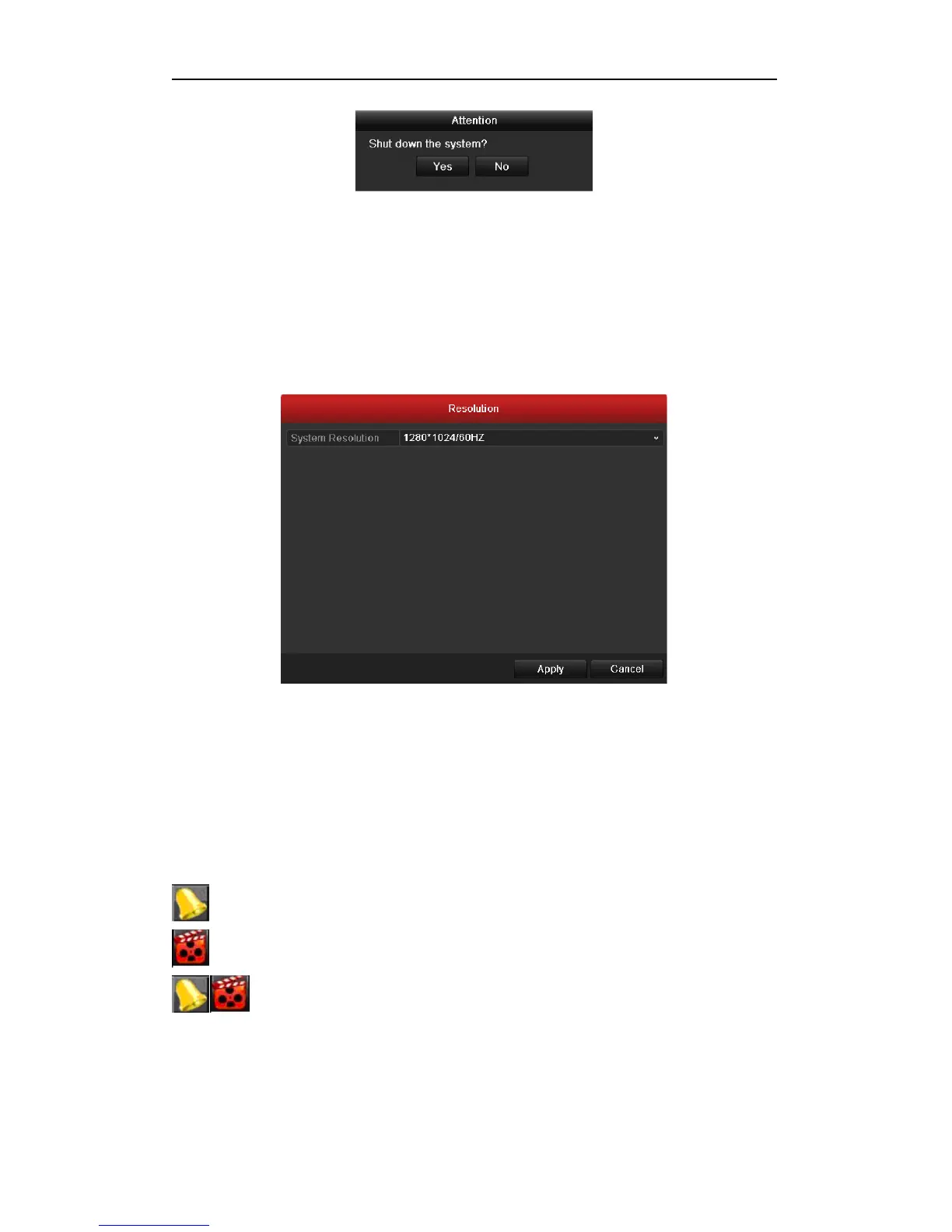

3. Click the Yes button.
4. Turn off the power switch on the rear panel of DVR.
Using the Setup Wizard
The Setup Wizard can walk you through some important settings of the device. By default, the Setup Wizard starts
once the device has loaded.
Operating the Setup Wizard:
1. Select the system resolution from the dropdown menu. The default resolution is 1280×1024/60Hz.
Click Apply to save the resolution settings.
2. Check the checkbox to enable Setup Wizard when device starts. Click Next to continue the setup wizard.
Follow the guide of the Setup Wizard to configure the system resolution, password modification, system
date/time, network settings, HDD management, record settings, etc.
Live View
Some icons are provided on screen in Live View mode to indicate different camera status. These icons include:
Live View Icons
In the live view mode, there are icons at the right top of the screen for each channel, showing the status of the
record and alarm in the channel, so that you can find problems as soon as possible.
Alarm (video loss, tampering, motion detection or sensor alarm).
Record (manual record, schedule record, motion detection record or alarm triggered record)
Alarm & Record
Note: The sensor alarm and alarm triggered record are supported by DS-7300-SH, DS-8100-SH and HDVR
models only.
Using the Mouse in Live View
In the live view mode, use the mouse to right-click on the window to access the following menu:

HIKVISION DS-7316HWI-SH Specifications

General

Product color	Black
Channels quantity	16 channels
Maximum frame rate	30 fps
Total storage capacity	12000 GB
Video compression formats	H.264
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x576, 704x480
Audio input	4
RS-485 ports	1
BNC input ports	16
BNC output ports	2
USB 2.0 ports quantity	3
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power requirements	100-240 VAC, 5A, 50-60Hz
Power consumption (typical)	35 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
