HIKVISION DS-7316HWI-SH User Manual

Quick Operation Guide of DS-7200-SH/SV/SL and DS-7300/8100-SH Series DVR
33
Record

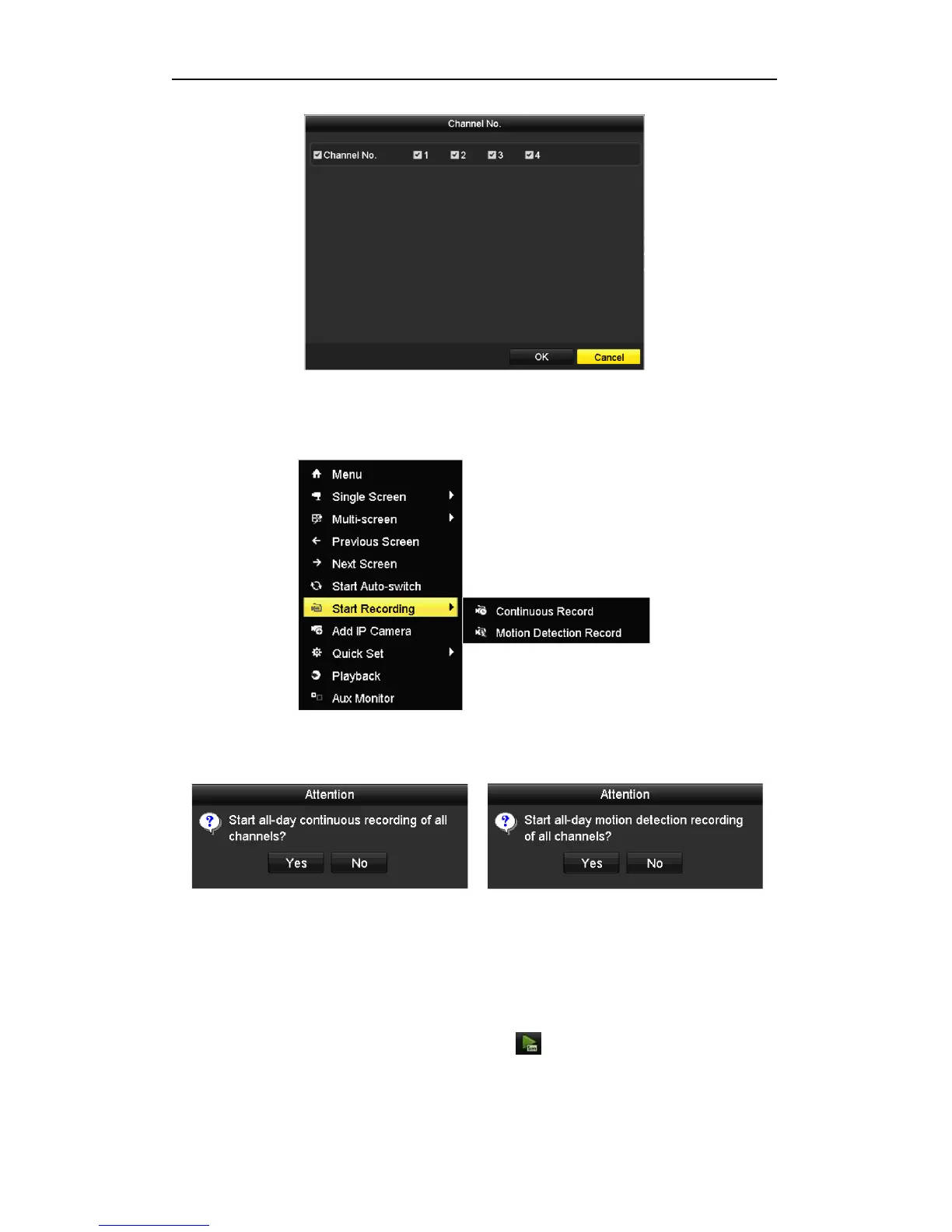

You can use the right-click menu in live view mode to configure recording for all channels.
1. In the live view mode, use the mouse to right-click on the window to access the following menu:
2. Click the Start Recording submenu and select the recording mode to Continuous Record or Motion
Detection Record.
3. In the pop-up message box, click Yes to finish the quick recording settings for all channels.
Note: The full-screen motion detection triggered recording is configured by default in this mode.
Playback
Play back the record files of a specific channel in the live view menu.
Instant playback by channel
Choose a channel under live view using the mouse and click the button in the shortcut operation menu.
Note: Only record files recorded during the past five minutes on this channel will be played back.

HIKVISION DS-7316HWI-SH Specifications

General

Product color	Black
Channels quantity	16 channels
Maximum frame rate	30 fps
Total storage capacity	12000 GB
Video compression formats	H.264
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x576, 704x480
Audio input	4
RS-485 ports	1
BNC input ports	16
BNC output ports	2
USB 2.0 ports quantity	3
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power requirements	100-240 VAC, 5A, 50-60Hz
Power consumption (typical)	35 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
