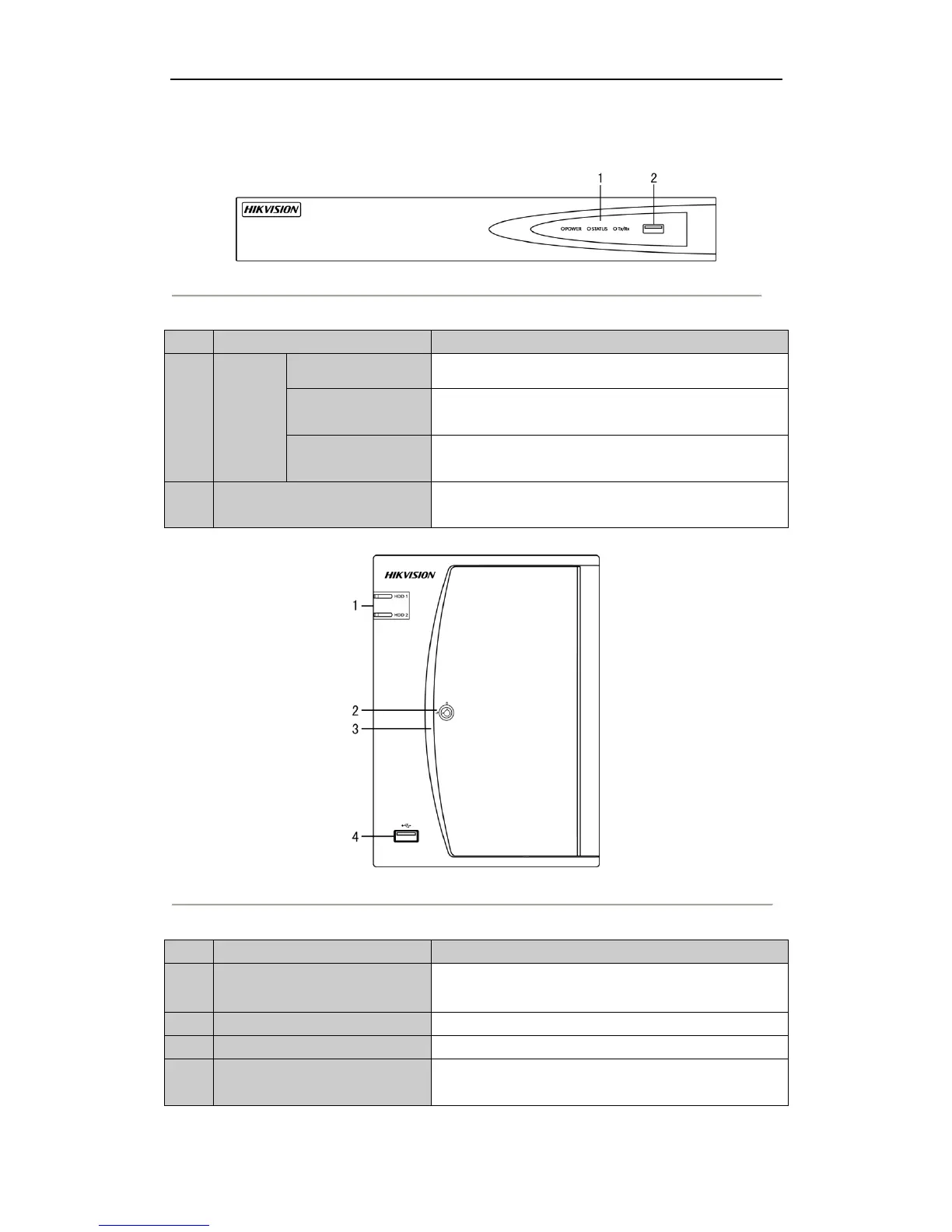

1.1 Front Panel
Figure 1. 1 DS-7600NI-SE(/N) and DS-7600NI-SE/P
Table 1. 1 Description of Front Panel
No.
Name
Description
1
Status
Indicator
Power
Power indicator turns yellow when system is running.
Status
Status indicator blinks red when data is being read from or
written to HDD.
Tx/Rx
TX/RX indictor blinks yellow when network connection is
functioning properly.
2
USB Interface
Universal Serial Bus (USB) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
Figure 1. 2 DS-7600NI-V and DS-7600NI-VP
Table 1. 2 Description of Front Panel
No.
Name
Description
1
HDD Status Indicators
The corresponding indicator blinks when the HDD is being read
or written.
2
Panel Lock
You can lock or unlock the panel by the key.
3
Running Status Indicator
The indicator lights when the device is running.
4
USB Interface
Universal Serial Bus (USB) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
