User Manual of DS-7600NI Series NVR
20

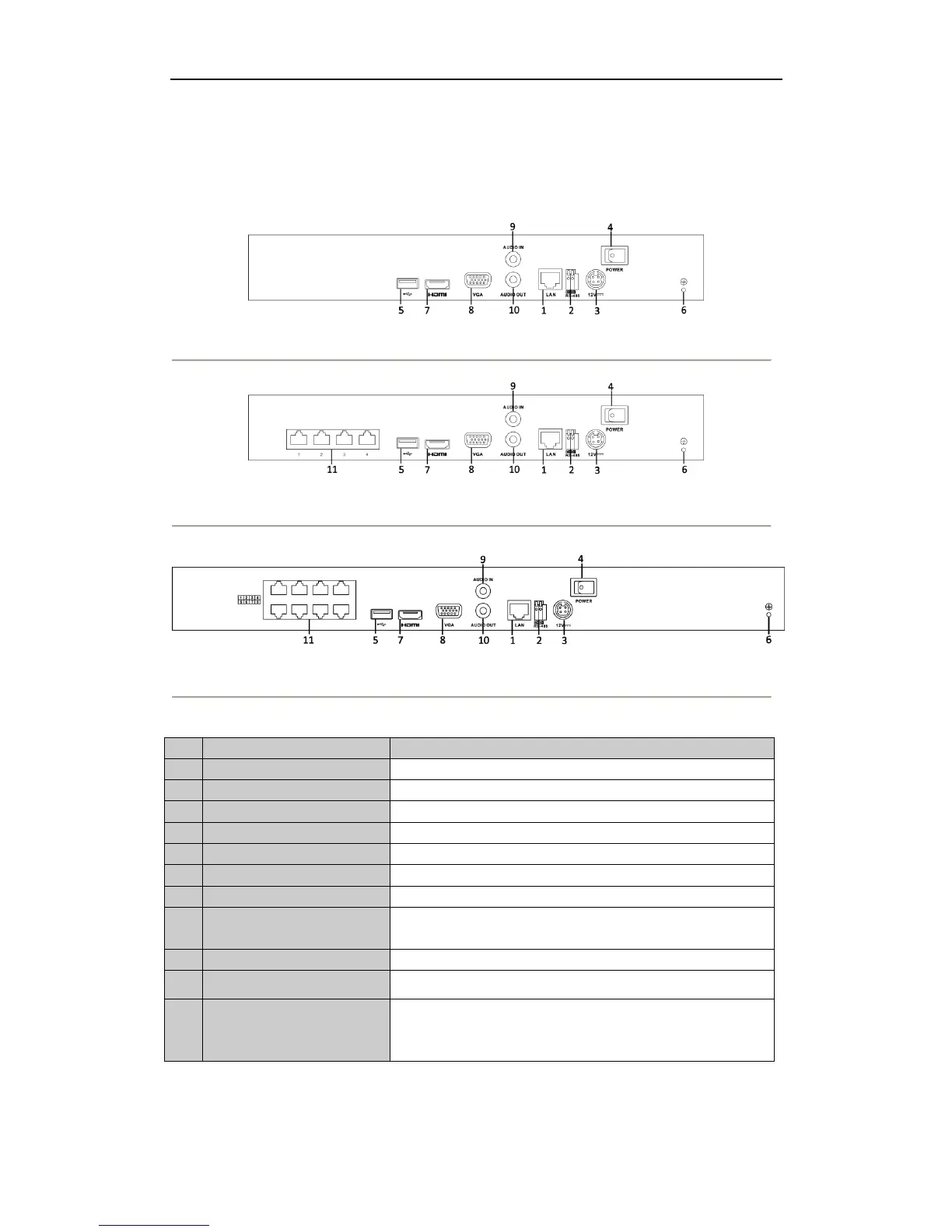

1.5 Rear Panel
Figure 1. 5 DS-7604&7608NI-SE
Figure 1. 6 DS-7604NI-SE/N
Figure 1. 7 DS-7608&7616NI-SE/N
Table 1. 6 Description of Rear Panel Interfaces
No.
Item
Description
1
LAN Interfaces
Connector for LAN (Local Area Network).
2
RS-485 Interface
Connector for RS-485 devices.
3
Power Supply
12VDC power supply.
4
Power Switch
Switch for turning on/off the device.
5
USB
Connects USB disks and devices.
6
Ground
Ground (needs to be connected when NVR starts up).
7
HDMI
HDMI video output connector.
8
VGA
DB9 connector for VGA output. Display local video output and
menu.
9
AUDIO IN
BNC connector for audio input. (Also for two-way audio)
10
AUDIO OUT
BNC connector for audio output.
11
Network interfaces with
built-in switch function
(for DS-7600NI-SE/N)
Independent 10 /100 Mbps PoE Ethernet interfaces.
