Step 6 Set the rules and areas for smart search of line crossing detection, intrusion detection or
motion detection event triggered recording.
 Line Crossing Detection
Select the button, and click on the image to specify the start point and end point of the
line.
 Intrusion Detection
Click the button, and specify 4 points to set a quadrilateral region for intrusion detection.
Only one region can be set.
 Motion Detection
Click the button, and then hold the mouse on the image to draw the detection area
manually. You can also click the button to set the full screen as the detection area.
Step 7 (Optional) You can click to filter the searched video files by setting the target
characters, including the gender and age of the human and whether he/she wears glasses.

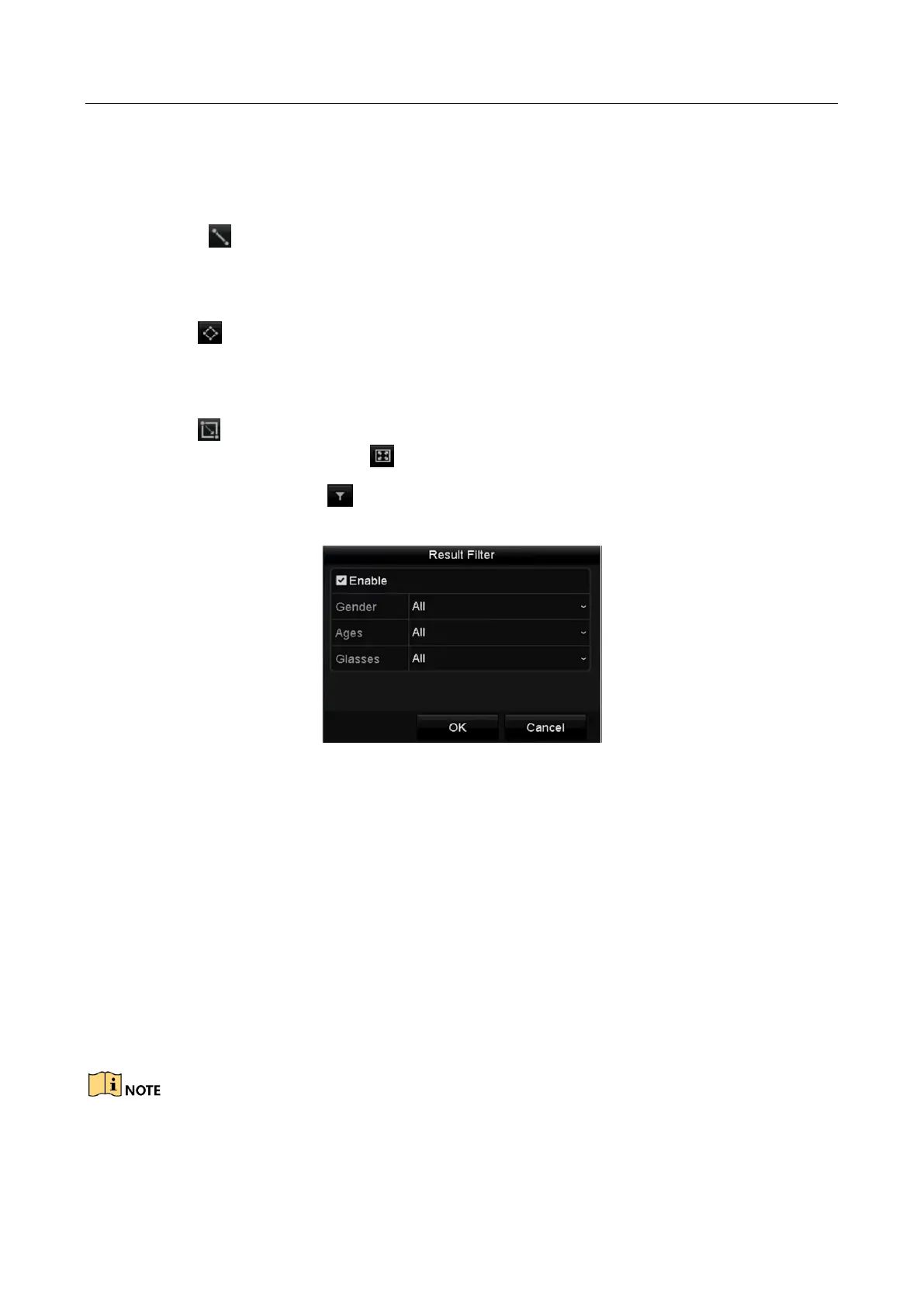

Figure 6-7 Set Result Filter
6.1.4 Playing Back by Event Search
Purpose
Play back record files on one or several channels searched out by event type (e.g., alarm input,
motion detection and VCA).
Step 1 Enter the Playback interface.
Menu>Playback
Step 2 Select the Event in the drop-down list on the top-left side.
Step 3 Select the major type to Alarm Input, Motion, or VCA as the event type.
We take playback by VCA as the example in the following instructions.

HIKVISION DS-7608NI-Q1 Specifications

General

Two-way talk	Yes
Input bandwidth	80 Mbit/s
Number of users	64 user(s)
Maximum resolution	4096 x 2160 pixels
Video input channels	8 channels
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Wi-Fi	No
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Number of HDDs supported	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Output voltage	12 V
Power consumption (typical)	10 W
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035:
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	240 mm
Width	320 mm
Height	48 mm
Weight	1000 g
