Network Video Recorder User Manual
151
Chapter 10 VCA Search
With the configured VCA detection, the NVR supports the VCA search for the behavior analysis,
face capture, people counting and heat map results.
10.1 Face Search
Purpose:
When there are detected face picture captured and saved in HDD, you can enter the Face Search
interface to search the picture and play the picture related video file according to the specified
conditions.
Before you start:
Please refer to Chapter 9.1 Face Detection for configuring the face detection.
Step 1 Enter the Face Search interface.
Menu >VCA Search > Face Search
Step 2 Select the camera (s) for the face search.

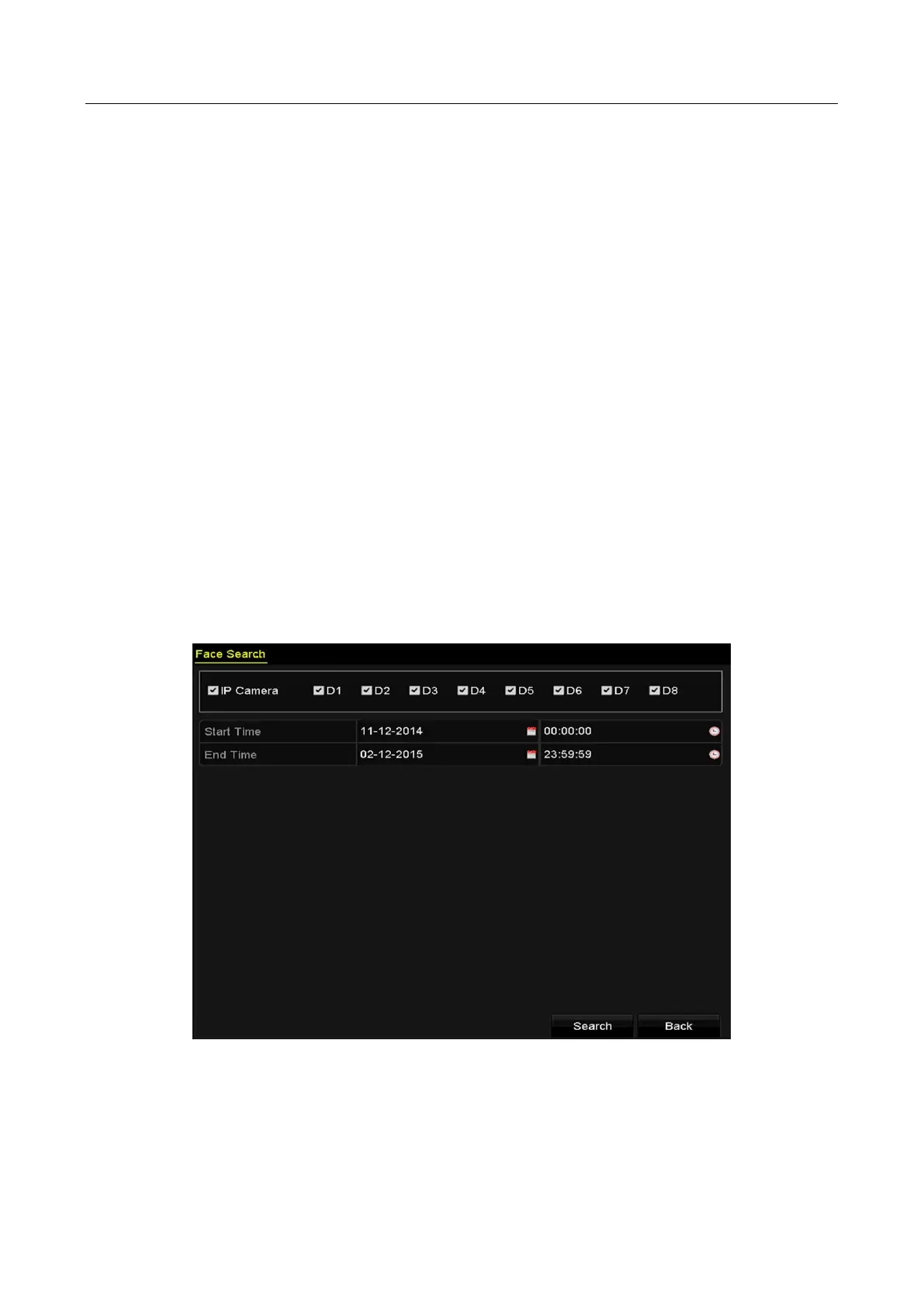

Figure 10-1 Face Search
Step 3 Specify the start time and end time for search the captured face pictures or video files.
Step 4 Click Search to start searching. The search results of face detection pictures are displayed in
list or in chart.

HIKVISION DS-7608NI-Q1 Specifications

General

Two-way talk	Yes
Input bandwidth	80 Mbit/s
Number of users	64 user(s)
Maximum resolution	4096 x 2160 pixels
Video input channels	8 channels
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Wi-Fi	No
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Number of HDDs supported	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Output voltage	12 V
Power consumption (typical)	10 W
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035:
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	240 mm
Width	320 mm
Height	48 mm
Weight	1000 g
