HIKVISION DS-7608NI-Q1 User Manual

Network Video Recorder User Manual
122
7.1.3 Backing up by Event Search
Purpose:
Back up event-related record files using USB devices (USB flash drives, USB HDDs, USB writer),
SATA writer or eSATA HDD. Quick Backup and Normal Backup are supported.
Step 1 Enter Export interface.
Menu>Export>Event
Step 2 Select the cameras to search.
Step 3 Select the event type to alarm input, motion, or VCA.

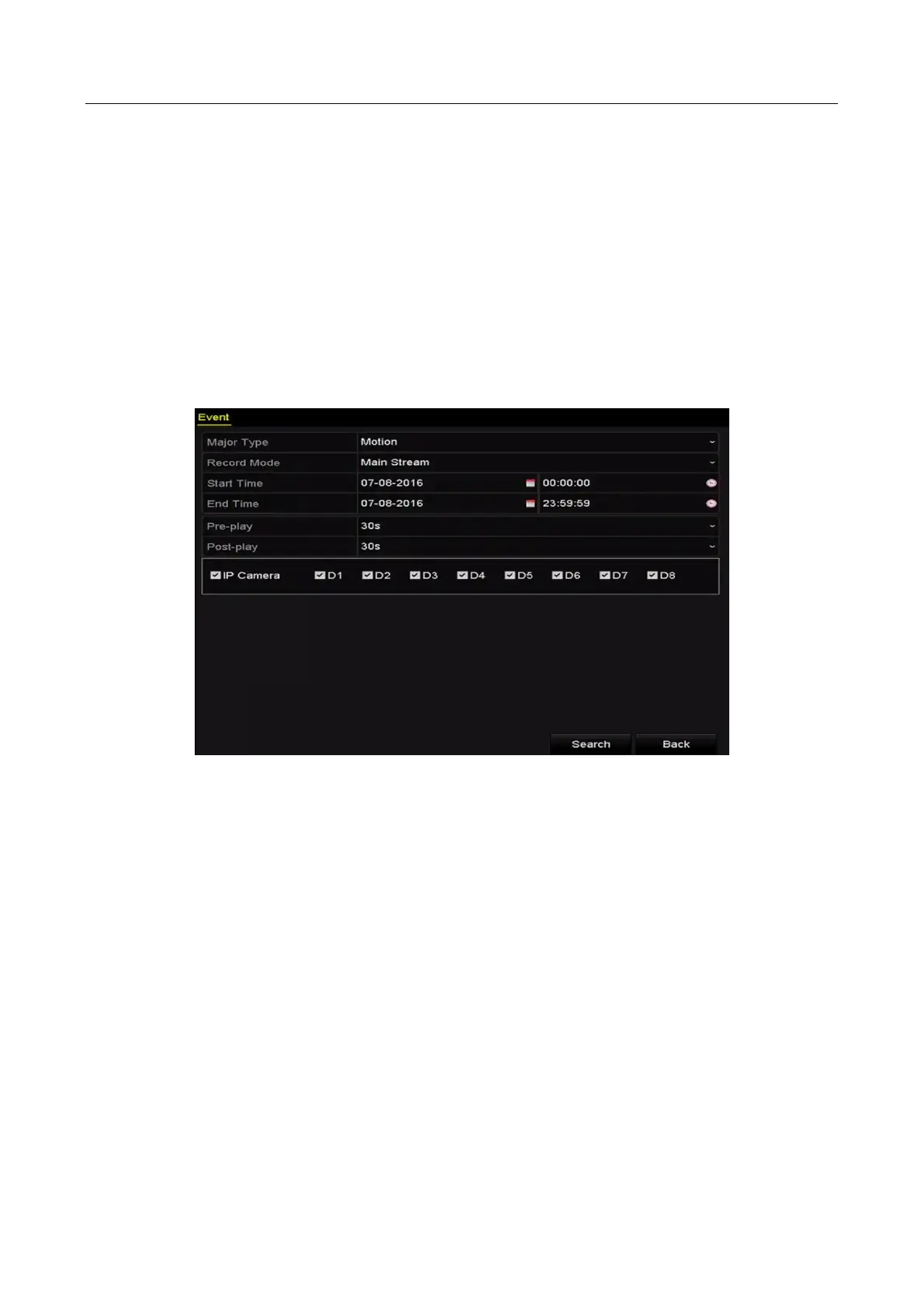

Figure 7-9 Event Search for Backup
Step 4 Set the search conditions and click Search button to enter the search result interface. For the
POS event type, you can also set the Keyword and enable the Case Sensitivity (upper case
and lower case) to search the video files with the key word contained POS information.
Step 5 The matched video files are displayed in Chart or List display mode. Select video files from
the Chart or List interface to export.

HIKVISION DS-7608NI-Q1 Specifications

General

Two-way talk	Yes
Input bandwidth	80 Mbit/s
Number of users	64 user(s)
Maximum resolution	4096 x 2160 pixels
Video input channels	8 channels
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Wi-Fi	No
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Number of HDDs supported	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Output voltage	12 V
Power consumption (typical)	10 W
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035:
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	240 mm
Width	320 mm
Height	48 mm
Weight	1000 g
