HIKVISION DS-7608NI-Q1 User Manual

Network Video Recorder User Manual
152

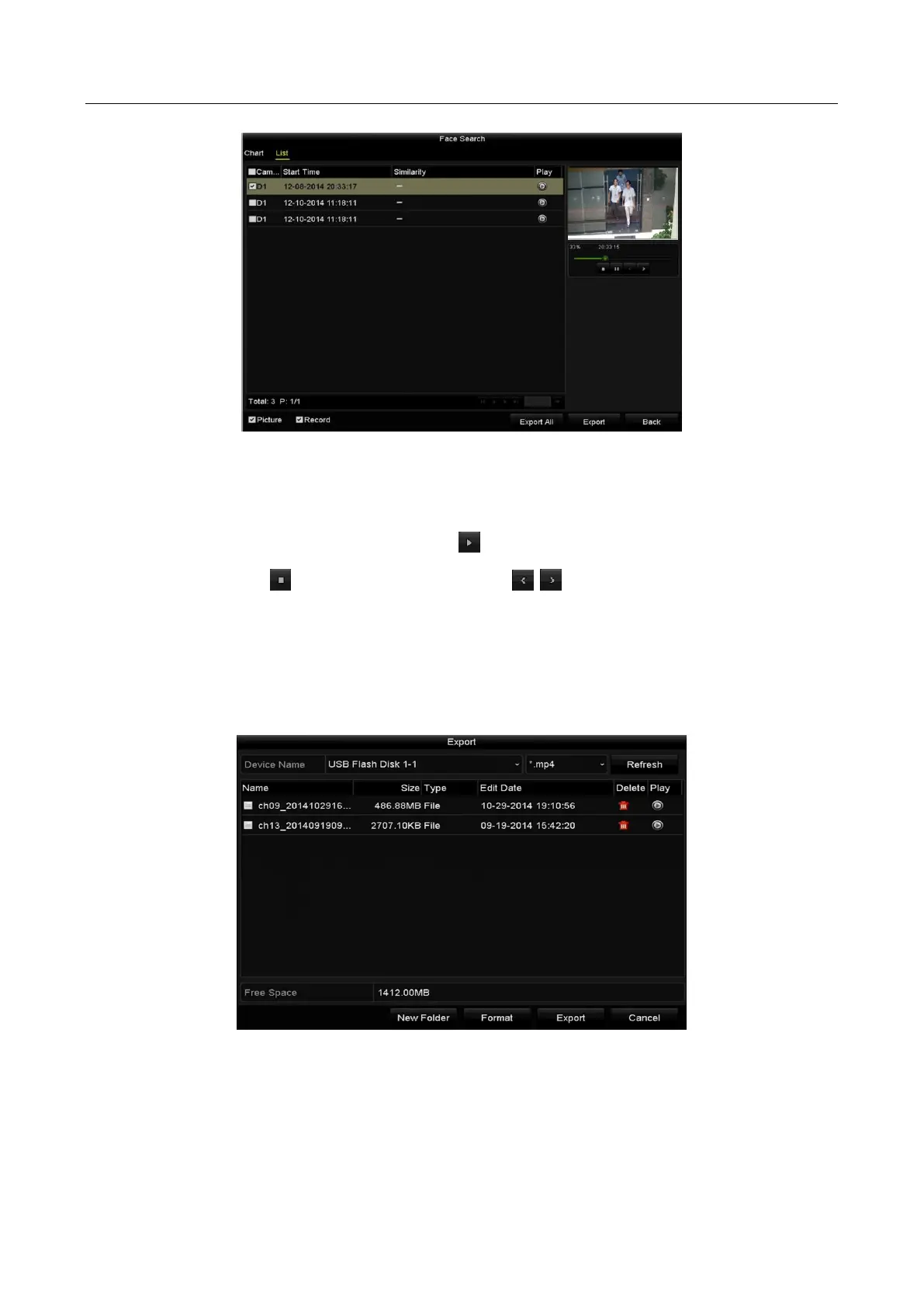

Figure 10-2 Face Search Interface
Step 5 Play the face picture related video file.
You can double click on a face picture to play its related video file in the view window on the
top right, or select a picture item and click to play it.
You can also click to stop the playing, or click / to play the previous/next file.
Step 6 If you want to export the captured face pictures to local storage device, connect the storage
device to the device and click Export All to enter the Export interface.
Click Export to export all face pictures to the storage device.
Please refer to Chapter7 Backup for the operation of exporting files.
Figure 10-3 Export Files
10.2 Behavior Search
Purpose:

HIKVISION DS-7608NI-Q1 Specifications

General

Two-way talk	Yes
Input bandwidth	80 Mbit/s
Number of users	64 user(s)
Maximum resolution	4096 x 2160 pixels
Video input channels	8 channels
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Wi-Fi	No
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Number of HDDs supported	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Output voltage	12 V
Power consumption (typical)	10 W
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035:
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	240 mm
Width	320 mm
Height	48 mm
Weight	1000 g
