HIKVISION DS-7608NI-Q1 User Manual

Network Video Recorder User Manual
187

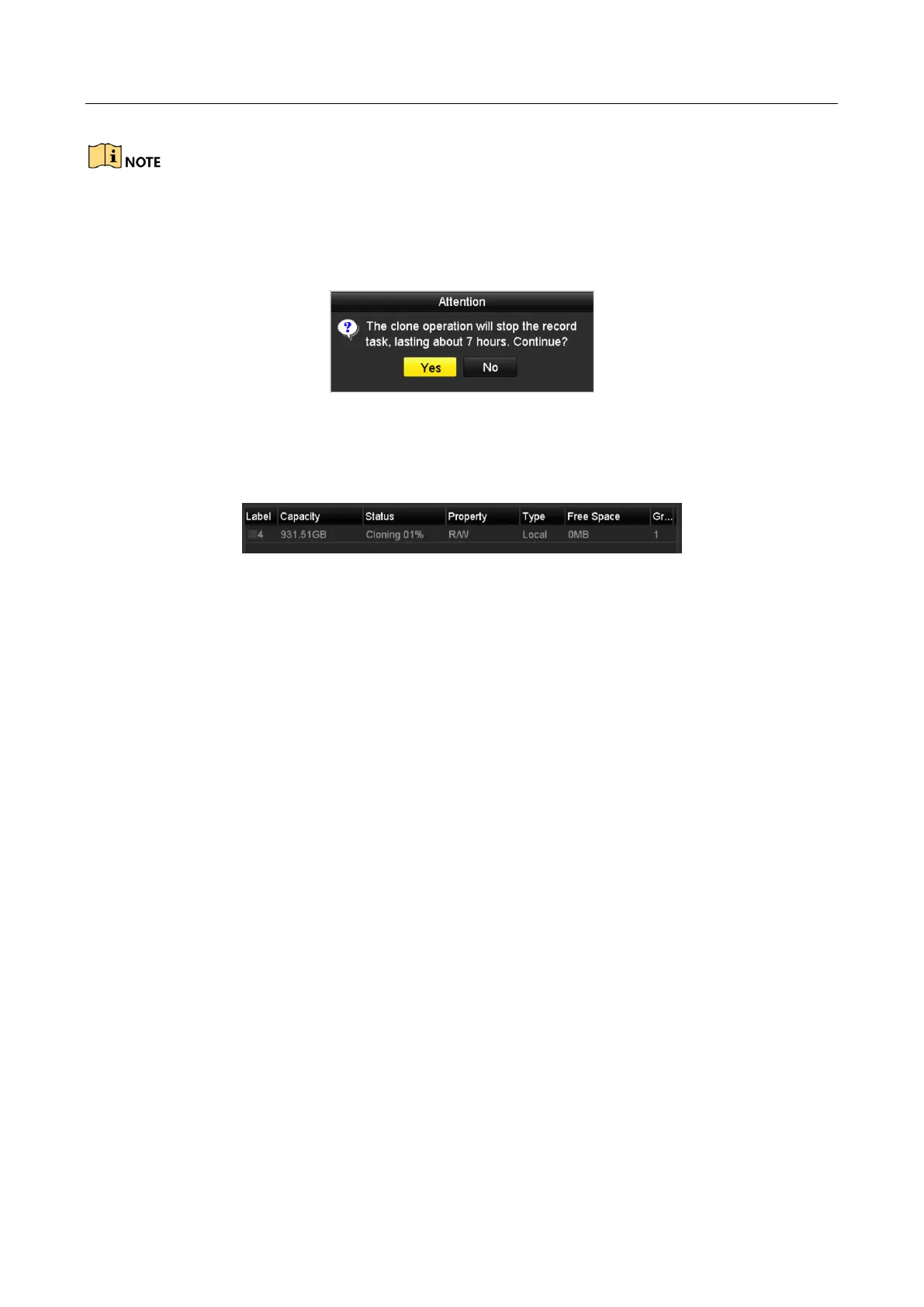

The capacity of destination disk must be the same as that of the clone source disk.
Step 4 Check the checkbox of the HDD to be cloned in the Clone Source list.
Step 5 Click the Clone button and a message box pops up.
Figure 12-21 Message Box for Disk Clone
Step 6 Click the Yes button to continue.
You can check the clone progress in the HDD status.
Figure 12-22 Check Disk Clone Progress

HIKVISION DS-7608NI-Q1 Specifications

General

Two-way talk	Yes
Input bandwidth	80 Mbit/s
Number of users	64 user(s)
Maximum resolution	4096 x 2160 pixels
Video input channels	8 channels
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Wi-Fi	No
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Number of HDDs supported	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Output voltage	12 V
Power consumption (typical)	10 W
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035:
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	240 mm
Width	320 mm
Height	48 mm
Weight	1000 g
