HIKVISION DS-7804N-K1/W User Manual

Network Video Recorder User Manual
109

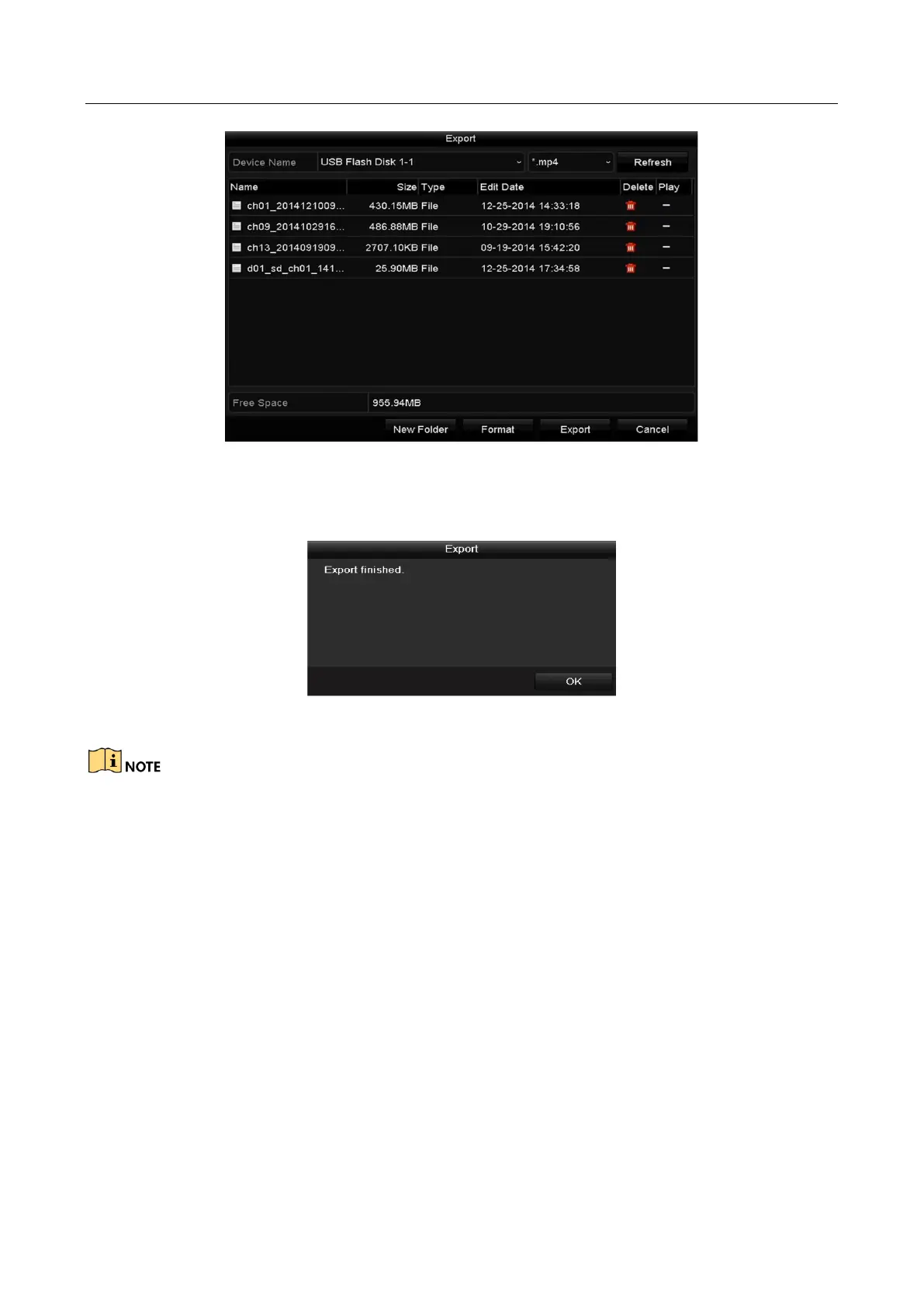

Figure 7-3 Export by Normal Video Search using USB Flash Drive
Stay in the Exporting interface until all record files are exported with pop-up message box
“Export finished”.
Figure 7-4 Export Finished
The backup of video files using USB writer or SATA writer has the same operating instructions.
Please refer to steps described above.
7.1.2 Backing up by Event Search
Purpose:
Back up event-related record files using USB devices (USB flash drives, USB HDDs, USB writer),
SATA writer or eSATA HDD. Quick Backup and Normal Backup are supported.
Step 1 Enter Export interface.
Menu > Export > Event
Step 2 Select the cameras to search.
Step 3 Select the event type to alarm input, motion, or VCA.

HIKVISION DS-7804N-K1/W Specifications

General

Brand	HIKVISION
Model	DS-7804N-K1/W
Category	Network Hardware
Language	English
