VGA AUDIO OUT
BNC connector for audio output. This connector is
synchronized with VGA video output.
3
LINE IN
BNC connector for audio input.
4
RS-232 Interface
Connector for RS-232 devices.
5
VGA
DB9 connector for VGA output. Display local video output
and menu.
6
HDMI
HDMI video output connector.
7
eSATA (Optional)
Connects external SATA HDD, CD/DVD-RM.
8
LAN Interface
Connector for LAN (Local Area Network).
9
Termination Switch
RS-485 termination switch.
Up position shows the RS-485 is not terminated.
Down position shows the RS-485 is terminated with 120Ω
resistance.
10
RS-485 Interface
Connector for RS-485 devices. T+ and T- pins connects to R+
and R- pins of PTZ receiver respectively.
Controller Port
D+, D- pin connects to Ta, Tb pin of controller. For cascading
devices, the first NVR’s D+, D- pin should be connected with
the D+, D- pin of the next NVR.
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
11
GROUND
Ground (needs to be connected when NVR starts up).
12
AC 100V ~ 240V
AC 100V ~ 240V power supply.
13
POWER
Switch for turning on/off the device.
14
USB interface
Universal Serial Bus (USB) ports for additional devices such
as USB mouse and USB Hard Disk Drive (HDD).
15
Network Interfaces
with PoE function
Network interface for the cameras and to provide power over
Ethernet.

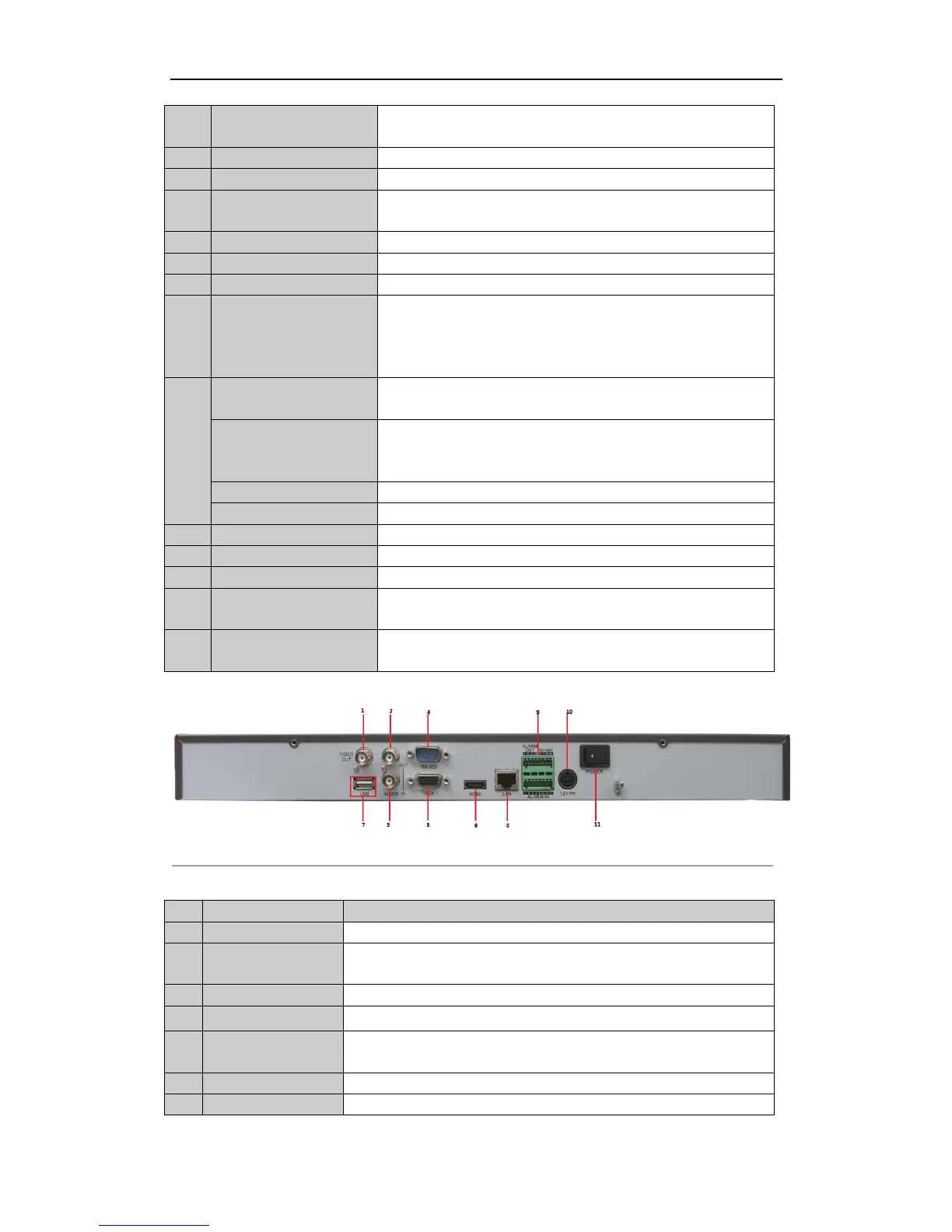

Figure 1. 14 DS-7600NI-ST
Table 1. 10 Description of Rear Panel Interfaces
No.
Item
Description
1
VIDEO OUT
BNC connector for video output.
2
AUDIO OUT
BNC connector for audio output.
3
AUDIO IN
BNC connector for audio input. (Also for voice talk)
4
RS-232 Interface
Connector for RS-232 devices.
5
VGA
DB9 connector for VGA output. Display local video output and
menu.
6
HDMI
HDMI video output connector.
7
USB
Connects USB disks and devices.
