User Manual of DS-9600/8600/7700/7600 Series NVR
96
If more than one channel is optional, clicking button takes you to step 3and step 4.

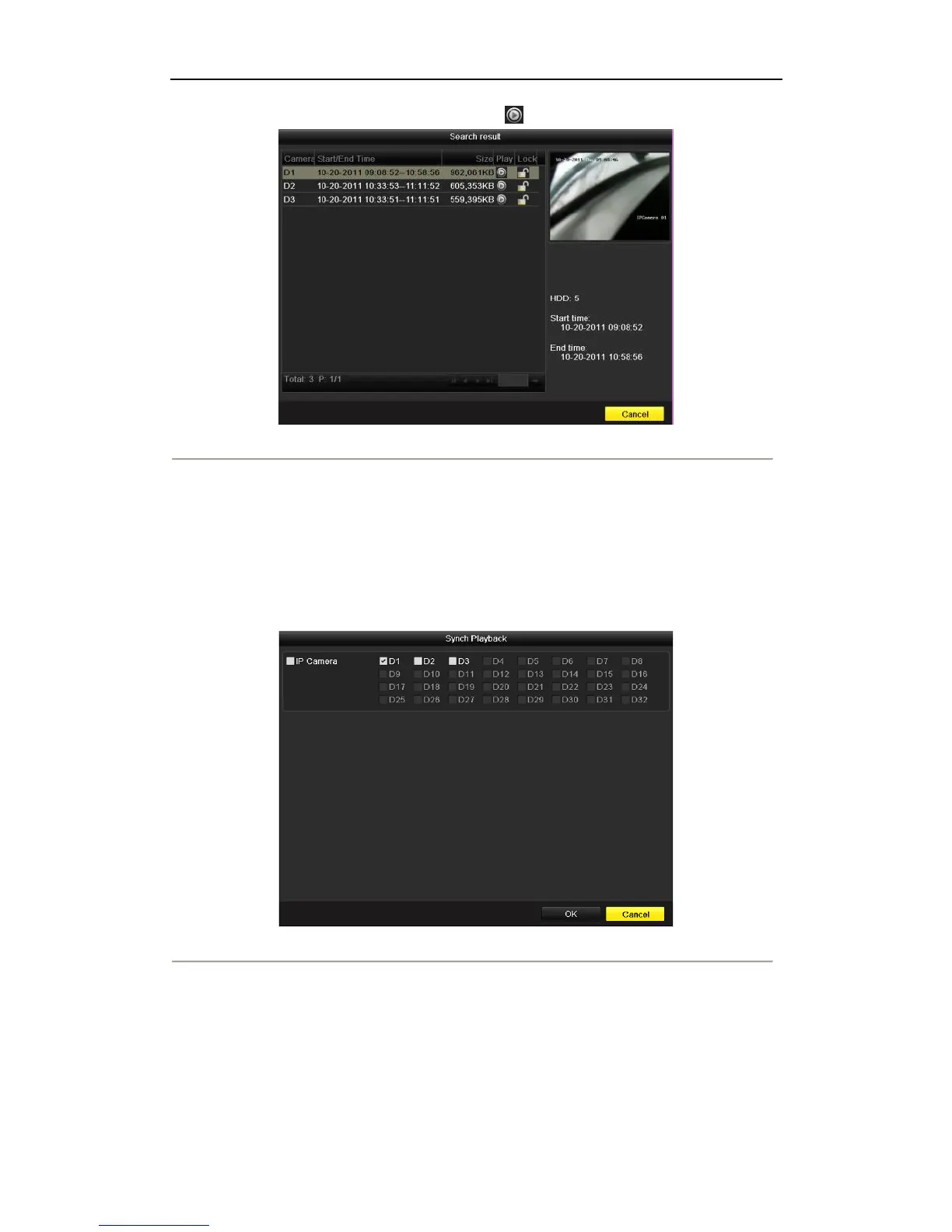

Figure 6. 11 Result of Normal Video Search
4. Choose channels for simultaneous playback.
Note: Optional channels for simultaneous playback are the same as the channels chosen to
search record files in step 1. And the channel with the recorded file selected in step 2 is the
main channel during multi-channel playback and it is displayed at the upper left corner.
4-ch, 8-ch and 16-ch devices support 4-ch, 8-ch and 16-ch simultaneous playback
respectively.
Figure 6. 12 Select Channels for Synchronous Playback
5. Synchronous Playback interface.
The toolbar in the bottom part of Playback interface can be used to control playing process.
