HIKVISION DS-K1102M - Physical Card Reader Installation

DS-K1100 Series Card Reader
11
Yellow
Blue
Black
Red
Black
Red
Green
White
Purple
Orange
Brown
Controller
Card Reader

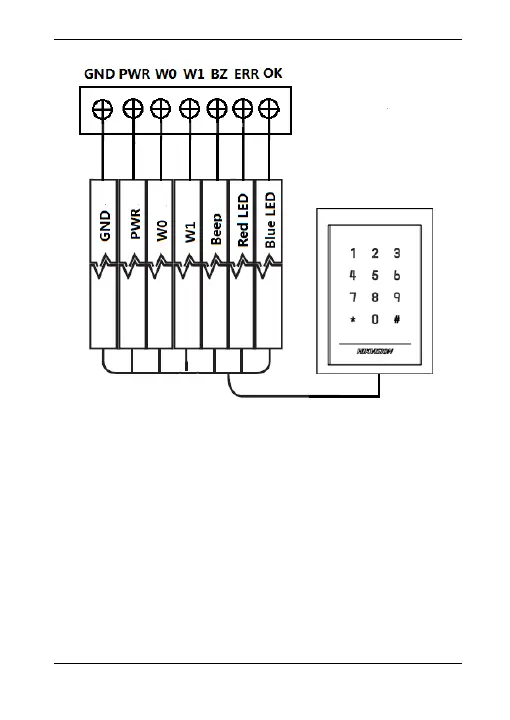

Figure 2-5 Wiring for Wiegand Communication Mode
2.5 Installing Card Reader
Before you start:
Set the DIP switch. For details, refer to 2.2 Introduction for DIP
Switch.
Steps:
