Access Control Terminal·Quick Start Guide
6

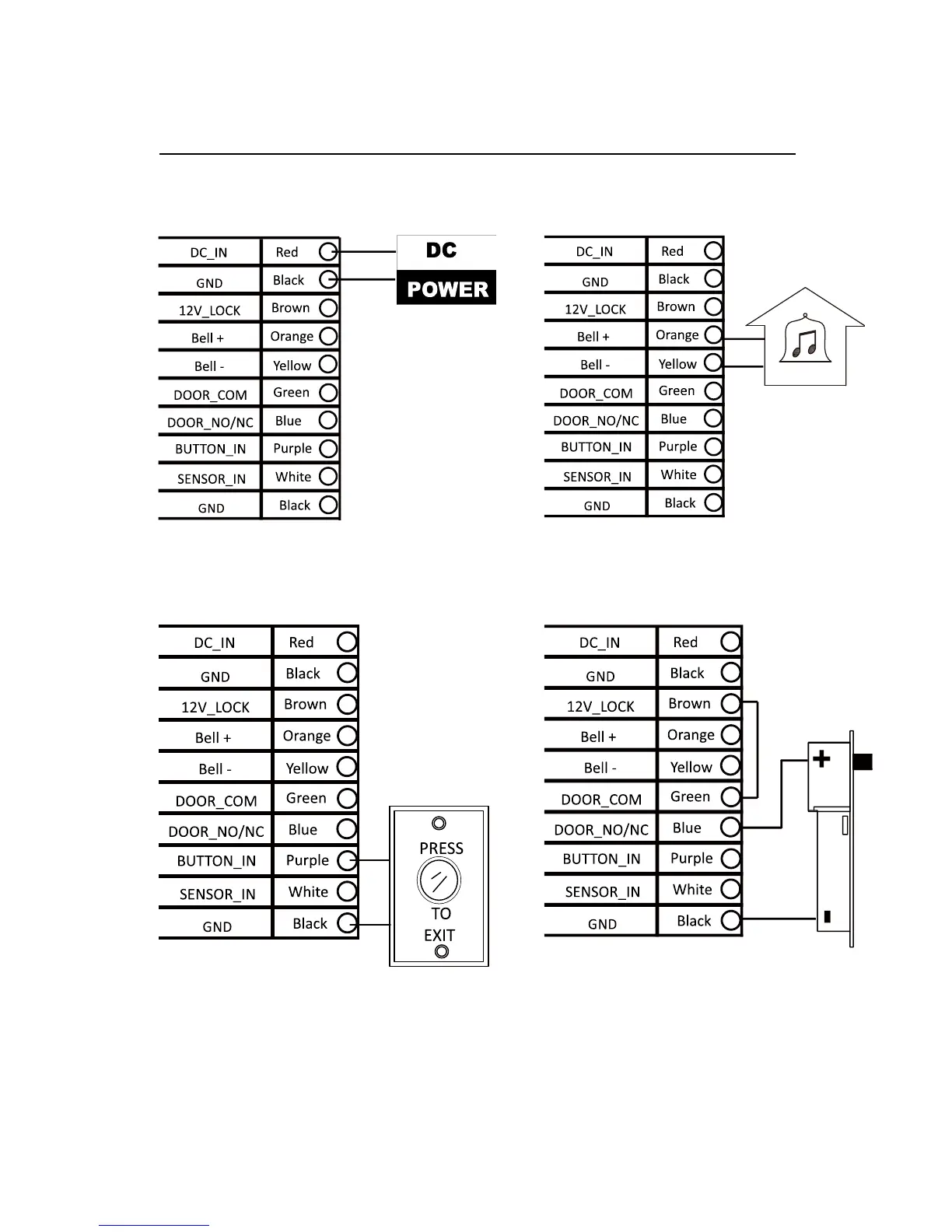

3.2 External Device Wiring
Power Supply Wiring
Doorbell Wiring
Power Supply
Figure 3-1
Connection Diagram
Doorbell Wiring
Figure 3-2
Diagram
Door Button Wiring
Door Lock Wiring
Door Button Wiring
Figure 3-3
Diagram
Door Lock Wiring
Figure 3-4
Diagram
