HIKVISION DS-KD-DIS User Manual

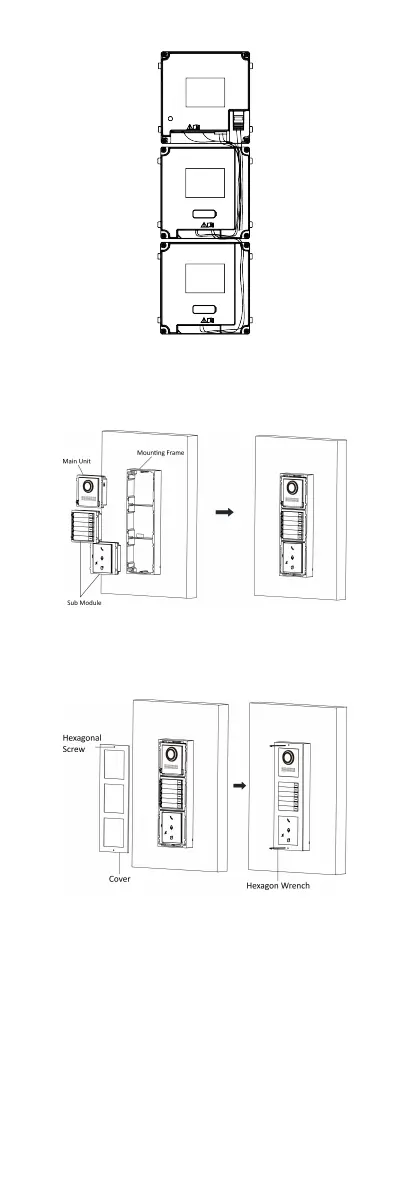

Figure 4-21 Line Connecon Eect Picture
7. Insert the modules into the frame
aer wiring. The main unit
must be placed in the top grid.
Figure 4-22 Insert the Modules into the Frame
8. Use the hexagon wrench in the package to x the cover onto
the frame.
Figure 4-23 Fix the Cover
4.3.2 Three-Module Flush Mounng
22
