HIKVISION DS-KH8301-WT Quick Start Guide

Video Intercom Indoor Station·Quick Start Guide
8
3 Installation and Wiring
Before you start:
 Make sure the device in the package is in good condition and all the assembly parts
are included.
 The power supply the indoor station supports is 12 VDC. Please make sure your
power supply matches your indoor station.
 Make sure all the related equipment is power-off during the installation.
 Check the product specification for the installation environment.
3.1 Indoor Station Installation
The wall mounting plate and the junction box are required to install the indoor station
onto the wall. Junction boxes for 8-series and 6-series indoor stations are the same.

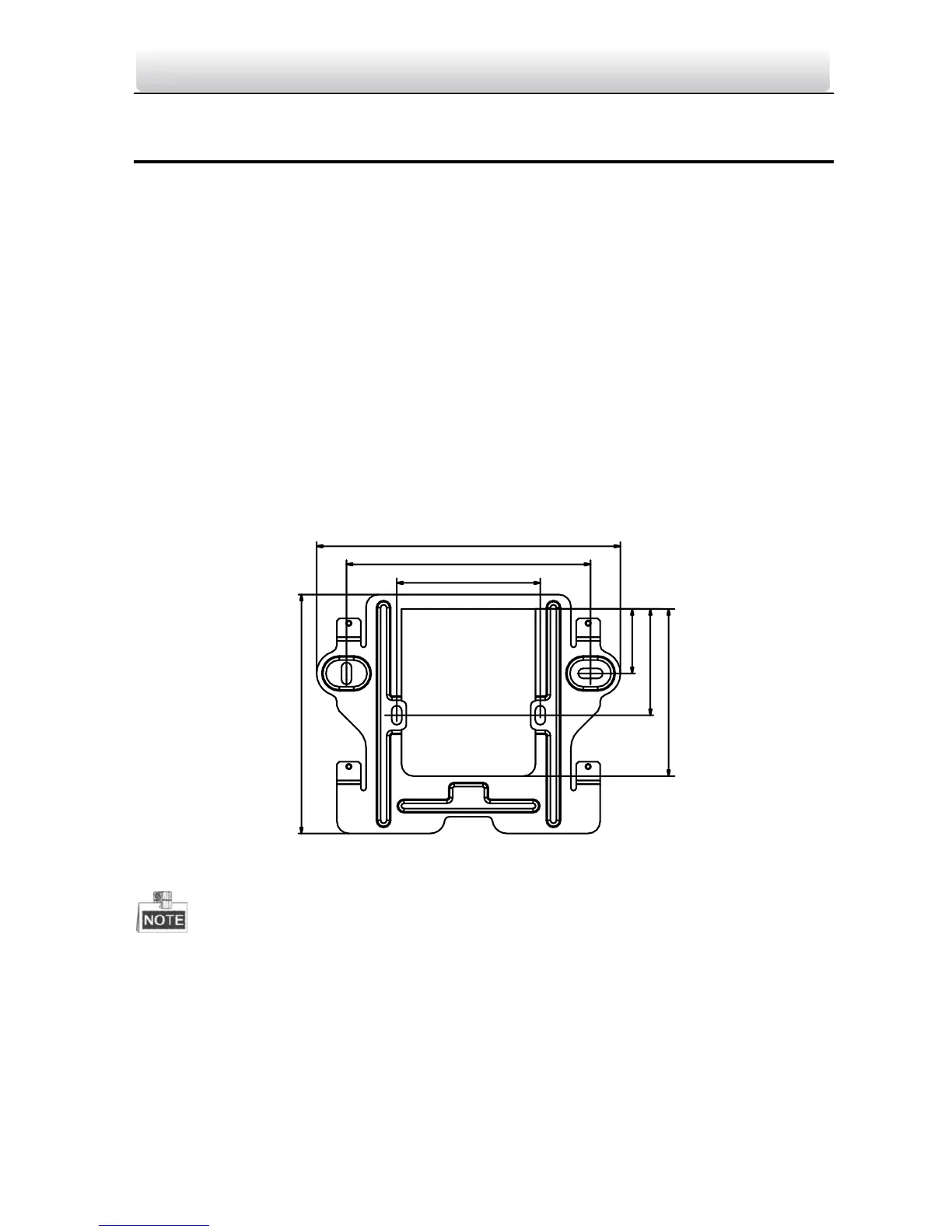

3.1.1 Wall Mounting Plate
60 mm
102 mm
127 mm
100 mm
27 mm
44.5 mm
70 mm
Figure 3-1 Wall Mounting Plate
The dimension of junction box should be 75 mm (width) × 75 mm (length) × 50 mm
(depth).
3.1.2 Wall Mounting with Junction Box
Wall mounting installations are the same for the 6-series indoor stations and the
8-series indoor stations. Here we take the wall mounting of DS-KH6310 model as an
example.

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
