HIKVISION DS-KH8301-WT Quick Start Guide

Video Intercom Indoor Station·Quick Start Guide
30

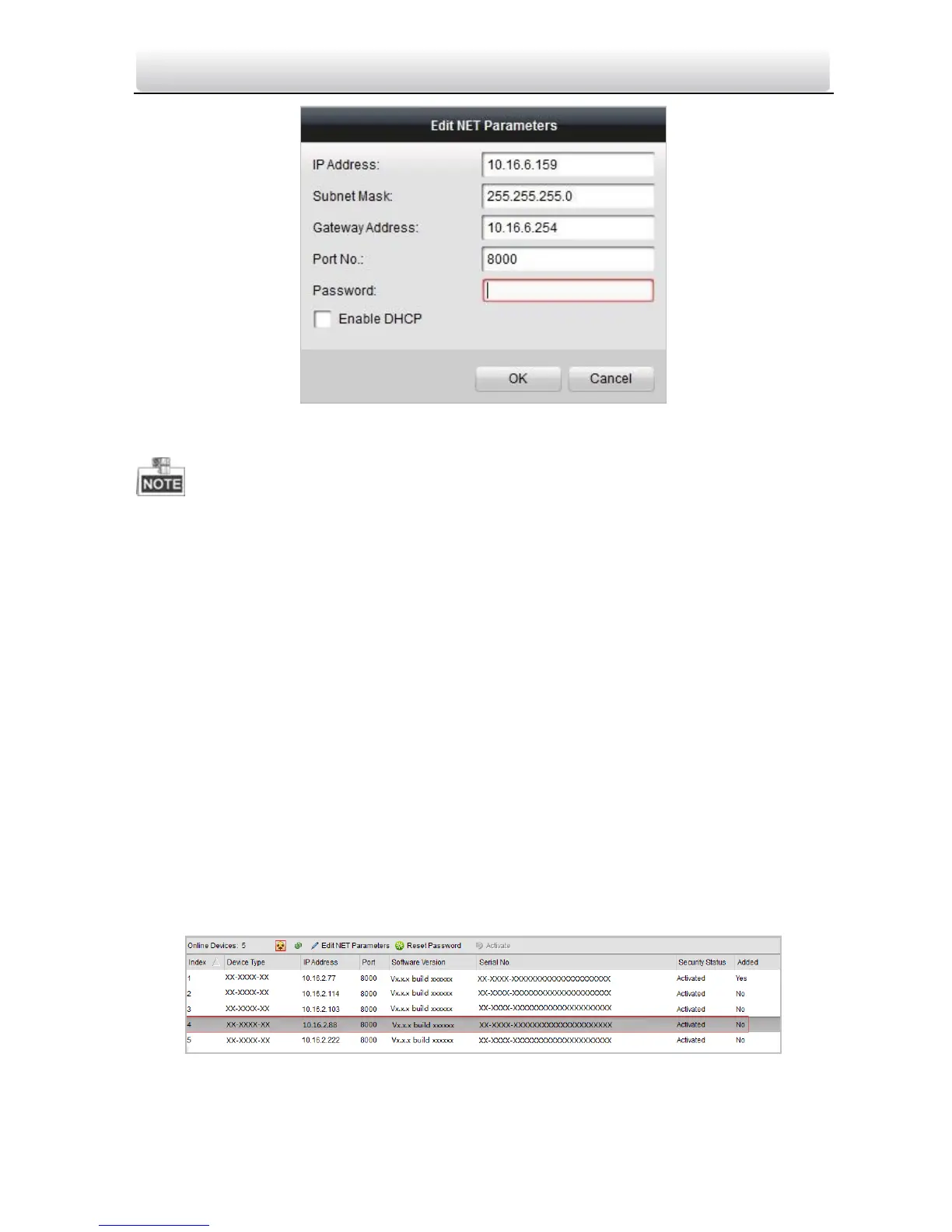

Figure 6-4 Editing Network Parameters
 The default port No. is 8000.
 After editing the network parameters of device, you should add the devices to the
device list again.
6.3 Adding Device
For batch configuration tool and iVMS-4200 software, you should add device to the
software so as to configure the device remotely.
4 ways for adding the device are supported: adding active online devices within your
subnet, adding device by IP address, adding device by IP segment, and adding device by
port No. range. Here take adding online device and adding device by IP address via batch
configuration tool as example.
6.3.1 Adding Online Device
Steps:
1. Select an active online device or hold the Ctrl or Shift key to select multiple devices in
the online devices list.
Figure 6-5 Online Devices Interface

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
