HIKVISION DS-KH8301-WT Quick Start Guide

Video Intercom Indoor Station·Quick Start Guide
1
1 Appearance
1.1 Appearance of DS-KH8301-WTS/DS-KH8301-WT/
DS-KH8300-T

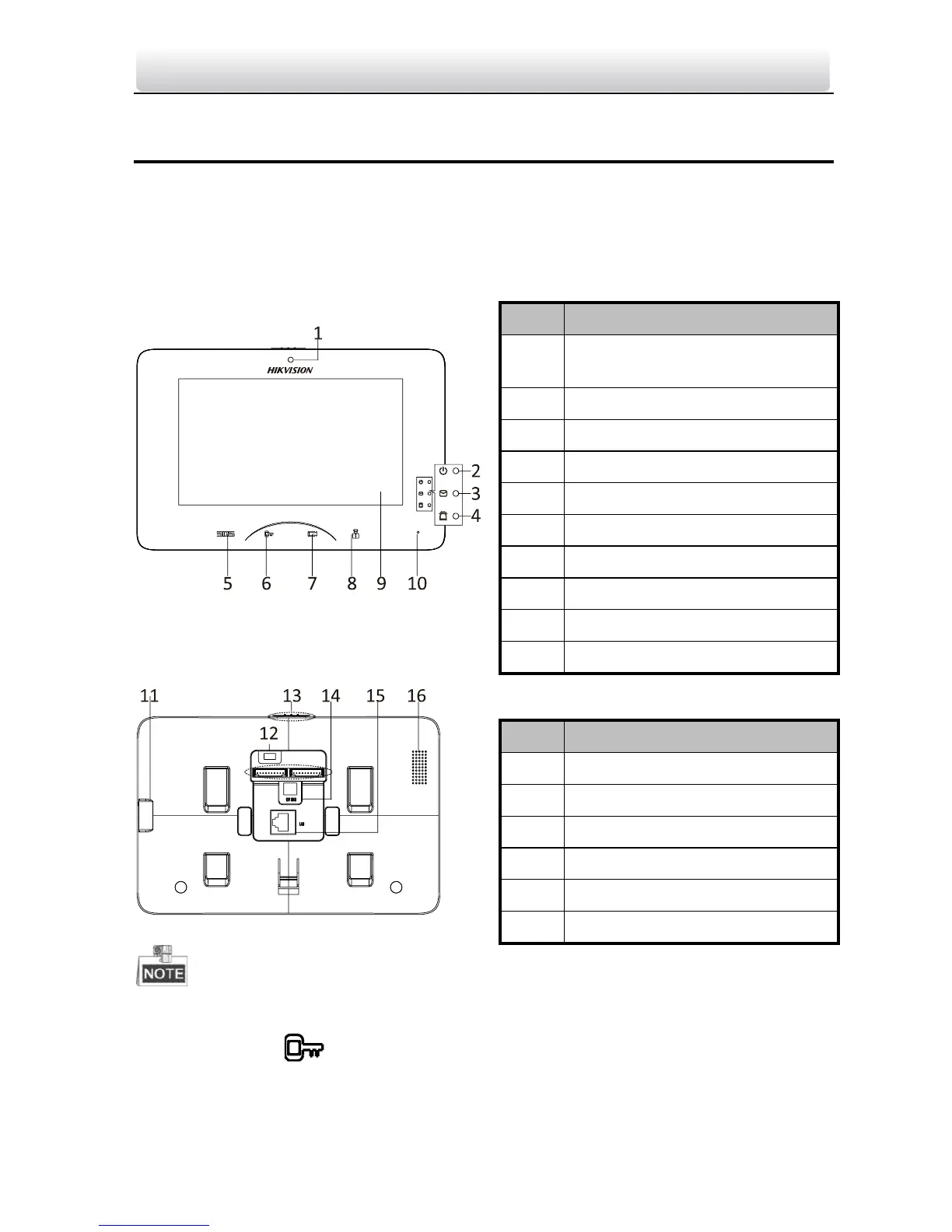

Figure 1-1 Front Panel
Table 1-1 Components Description
No.
Description
1
Built-in Camera (Only
DS-KH8301-WT supports)
2
Power Supply Indicator
3
Information Indicator
4
Alarm Indicator
5
SOS Touch Key
6
Unlock Touch Key
7
Live View Touch Key
8
Management Center Touch Key
9
LCD Display Screen
10
Microphone
Figure 1-2 Rear Panel
Table 1-2 Components Description
No.
Description
11
TF Card Slot
12
Serial Port
13
Mechanical Switch
14
Power Supply Indicator
15
Network Interface
16
Loudspeaker
 Hold down the SOS touch key to trigger a SOS alarm and upload the alarm message to
the management center (iVMS-4200 client software or the master station).
 The Unlock key ( ) is valid only when does the indoor station speak with the door
station or open the live view of the door station.

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
