HIKVISION DS-KM9503 User Manual

2 Terminal Descripon

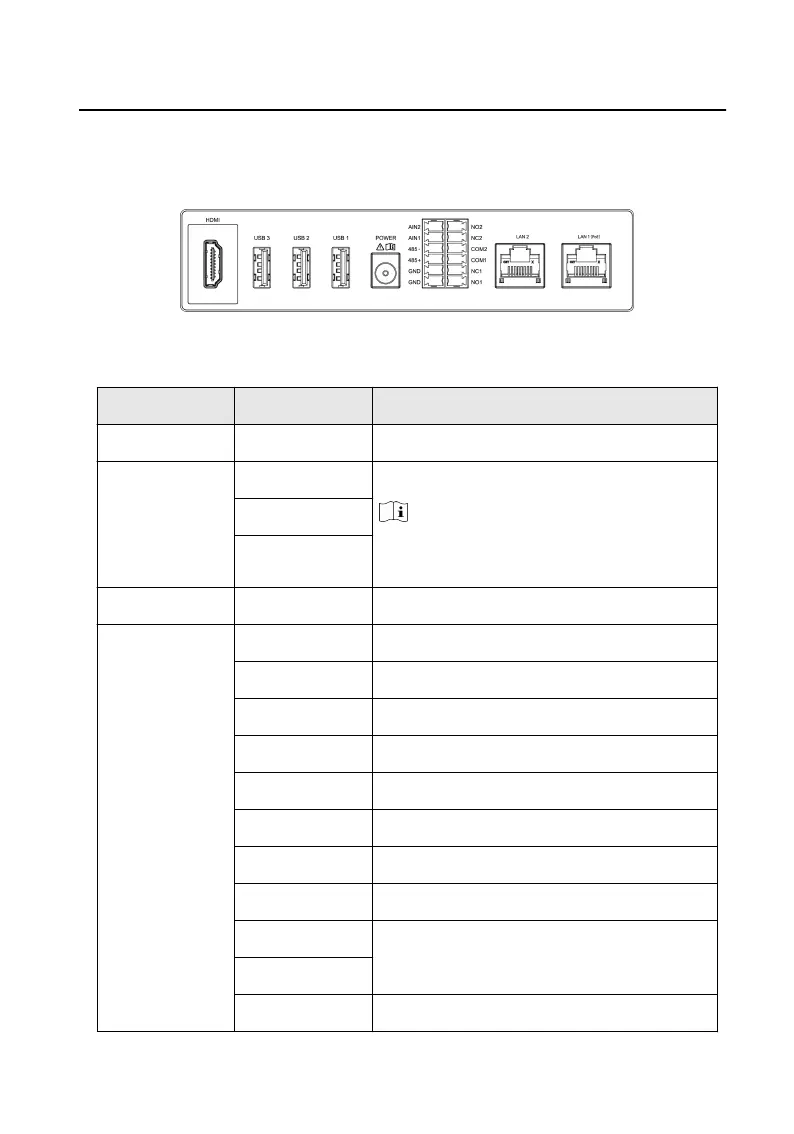

Figure 2-1 Terminal Descripon
Table 2-1 Terminal Descripon
Name Interface Descripon
Video Interface HDMI HDMI Signal Output
USB Interface USB 1 USB Interface
Note
USB3 is used to debugging only. It cannot
connect to USB ash drive.
USB 2
USB 3
Power Interface POWER 12 VDC Power Input
Terminal NO1 Alarm Output 1(NO)
NC1 Alarm Output 1(NC)
COM1 Common Interface
NO2 Alarm Output 2(NO)
NC2 Alarm Output 2(NC)
COM2 Common Interface
AIN1 Alarm Input 1
AIN2 Alarm Input 2
485+ RS-485 Communicaon Interfaces
485-
GND Grounding
Video Intercom Main Staon Operaon Guide
4

HIKVISION DS-KM9503 Specifications

General

Product color	Black, Grey
Display diagonal	10.1 \
Touchscreen type	Capacitive
Display resolution	1280 x 800 pixels
Display technology	IPS
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	2
Supported network protocols	TCP/IP, SIP, RTSP
Video codecs	H.264
Number of buttons	3 buttons
Connectivity technology	Wired
Number of displays supported	-
Megapixel	2 MP
Viewing angle, vertical	48.1 °
Viewing angle, horizontal	64.1 °
Voice codecs	G.711a, G.711u
Compatible memory cards	SD
Package weight	2305 g
Power consumption (typical)	12 W

Weight and Dimensions

Depth	166 mm
Width	292 mm
Height	31 mm
Weight	1285 g
