HIKVISION DS-KM9503 User Manual

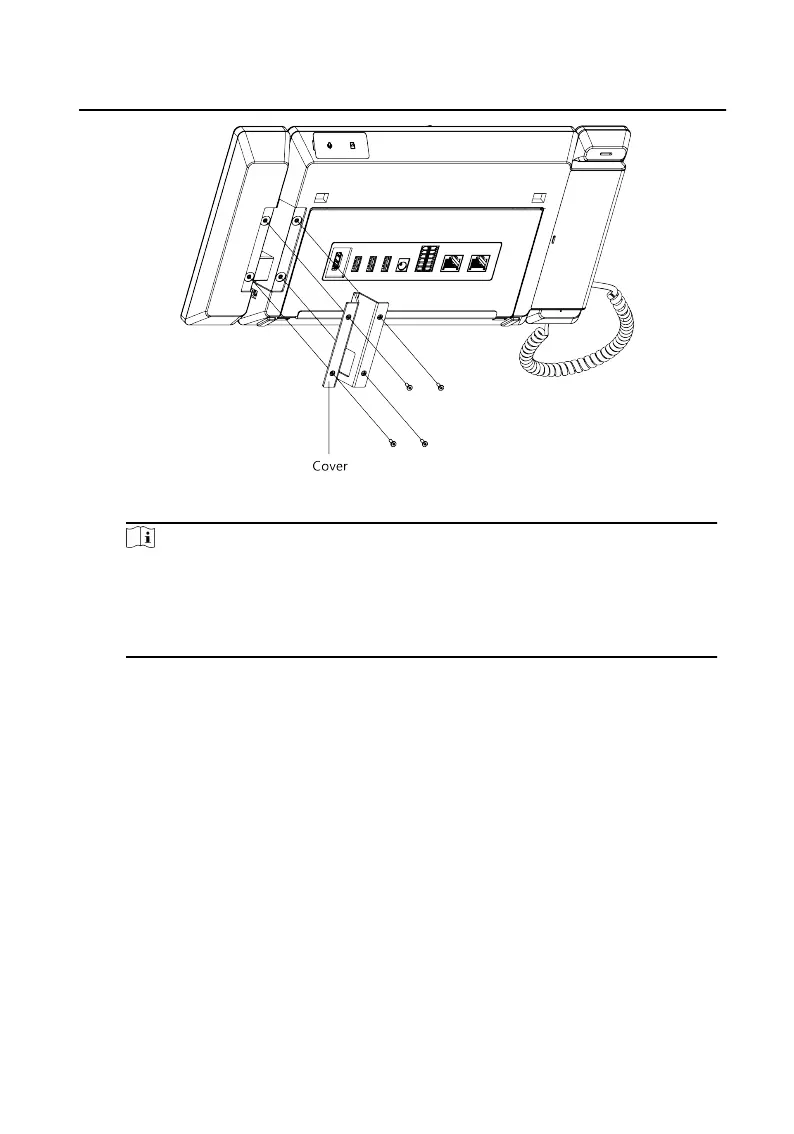

Figure 3-4 Secure the Speaker
Note
•
The speaker and earphone can not be used at the same me. If you want to
use the earphone, you should remove the speaker.
•
When using earphones, the small size of the earphone plug should be
selected. The size of the plug should be smaller than 7 mm.
3.2.2 Install Goose Neck Microphone
If you want to use the goose neck microphone to create two-way audio
communicaon.
Steps
1.
Remove the cover of the device on the top panel.
2.
Insert the goose neck microphone to the interface.
Video Intercom Main
Staon Operaon Guide
8

HIKVISION DS-KM9503 Specifications

General

Product color	Black, Grey
Display diagonal	10.1 \
Touchscreen type	Capacitive
Display resolution	1280 x 800 pixels
Display technology	IPS
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	2
Supported network protocols	TCP/IP, SIP, RTSP
Video codecs	H.264
Number of buttons	3 buttons
Connectivity technology	Wired
Number of displays supported	-
Megapixel	2 MP
Viewing angle, vertical	48.1 °
Viewing angle, horizontal	64.1 °
Voice codecs	G.711a, G.711u
Compatible memory cards	SD
Package weight	2305 g
Power consumption (typical)	12 W

Weight and Dimensions

Depth	166 mm
Width	292 mm
Height	31 mm
Weight	1285 g
