HIKVISION DS-KM9503 User Manual

3 Installaon
•
Make sure the device in the package is in good condion and all the assembly
parts are included.
•
The power supply the door staon support is 12 VDC. Please make sure your
power supply matches your door staon.
•
Make sure all the related equipment is power-o during the installaon.
•
Check the product specicaon for the installaon environment.
3.1 Table Bracket(Oponal)

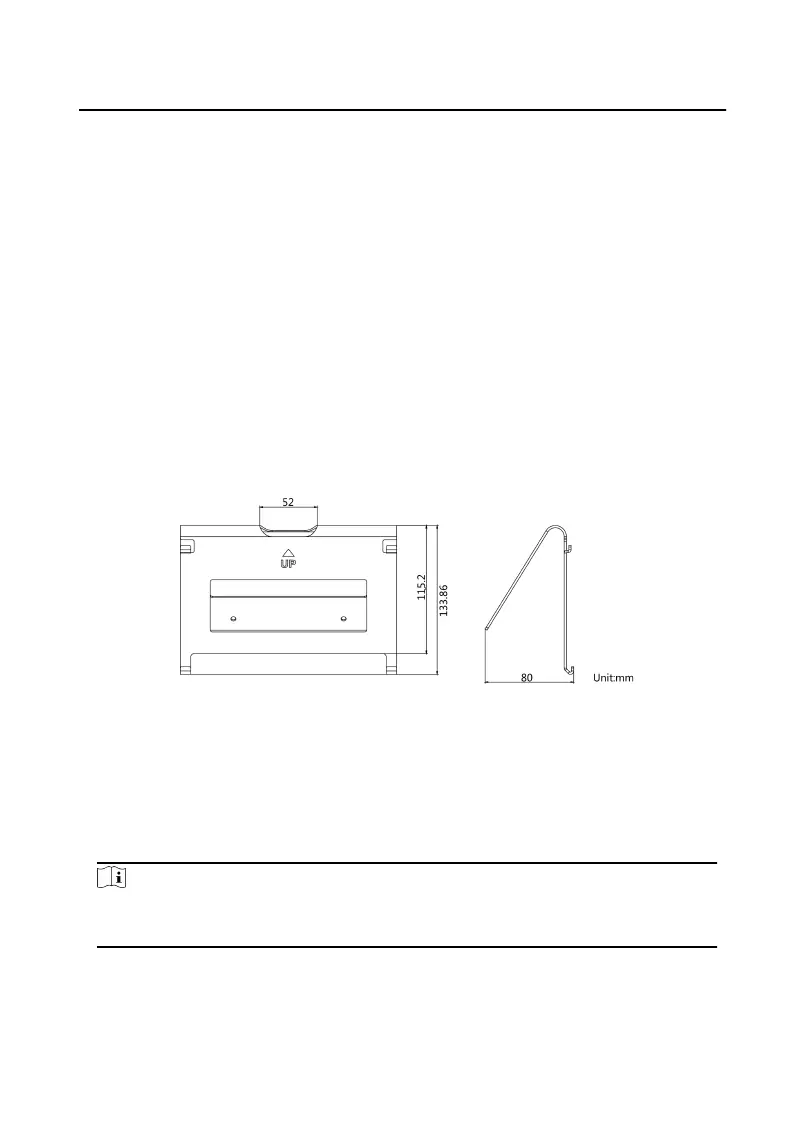

The device supports table mounng and wall mounng. The dimensions of the table
bracket(oponal) is shown as below.
Figure 3-1 Table Bracket
3.2 Accessory Installaon(Oponal)
Before installing the device on the wall or on the table, you should install the
accessories rst.
Note
Ask our technique supports and sales and purchase mounng plate, speaker and
goose neck microphone.
3.2.1 Install Speaker
Video Intercom Main Staon Operaon Guide
6

HIKVISION DS-KM9503 Specifications

General

Product color	Black, Grey
Display diagonal	10.1 \
Touchscreen type	Capacitive
Display resolution	1280 x 800 pixels
Display technology	IPS
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	2
Supported network protocols	TCP/IP, SIP, RTSP
Video codecs	H.264
Number of buttons	3 buttons
Connectivity technology	Wired
Number of displays supported	-
Megapixel	2 MP
Viewing angle, vertical	48.1 °
Viewing angle, horizontal	64.1 °
Voice codecs	G.711a, G.711u
Compatible memory cards	SD
Package weight	2305 g
Power consumption (typical)	12 W

Weight and Dimensions

Depth	166 mm
Width	292 mm
Height	31 mm
Weight	1285 g
