HIKVISION HD Series User Manual

Quick Start Guide of Digital Video Recorder
15

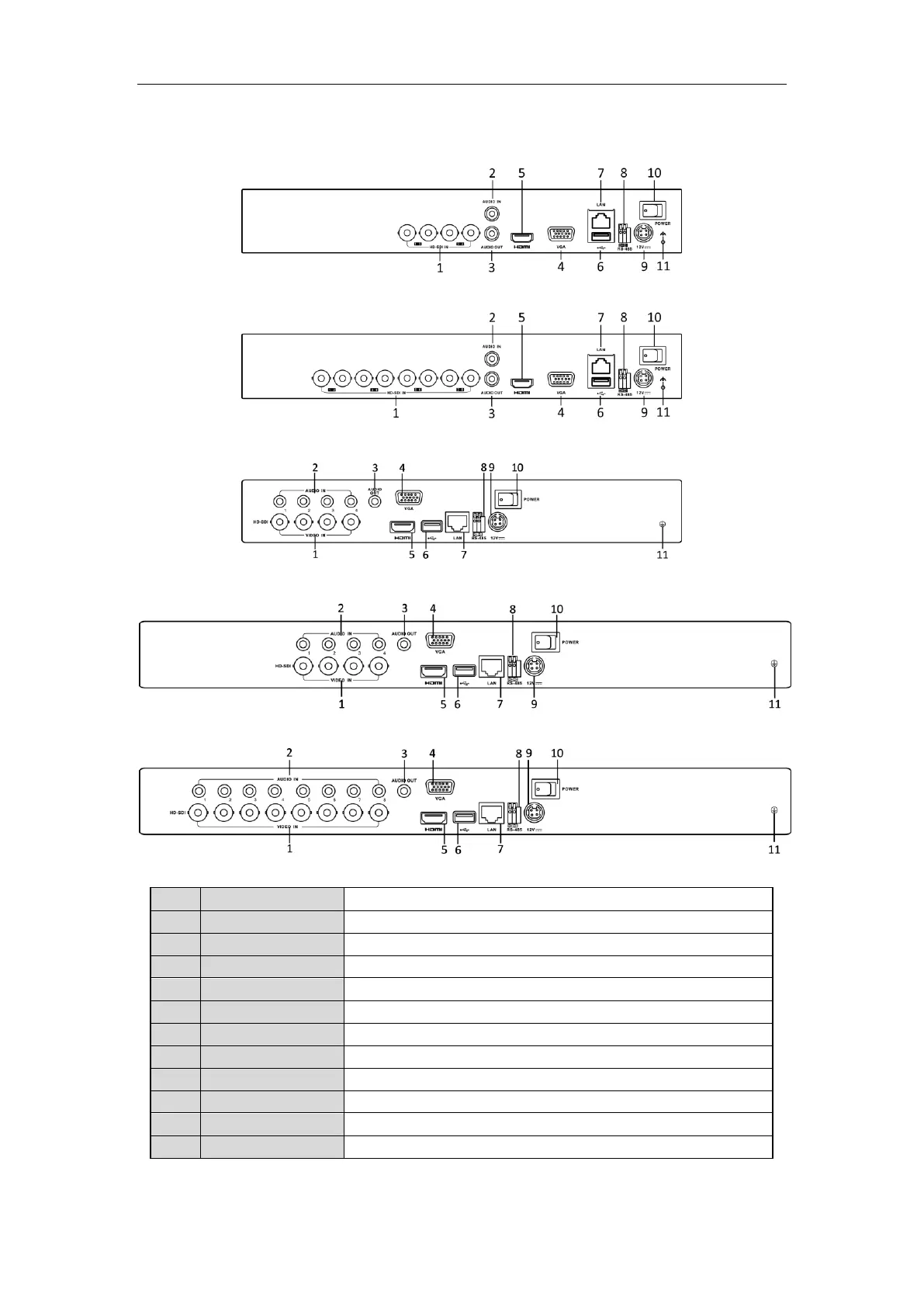

Rear Panels
DS-7204HFHI-SL
DS-7208HFHI-SL
DS-7204HFHI-SE
DS-7204HFHI-ST
DS-7208HFHI-SE and DS-7208HFHI-ST
No.
Item
Description
1
VIDEO IN
HD-SDI interface for video input.
2
AUDIO IN
RCA connector
3
AUDIO OUT
RCA connector
4
VGA
DB15 connector for VGA output. Display local video output and menu.
5
HDMI
HDMI video output connector.
6
USB Port
Universal Serial Bus (USB) port for additional devices.
7
Network Interface
Connector for network
8
RS-485 Interface
Connector for RS-485 devices.
9
Power Supply
DC 12V power supply.
10
Power Switch
Switch for turning on/off the device.
11
GND
Ground
