HIKVISION iDS-2CD9396-AIS User Manual

Network Traffic Camera • User Manual
37

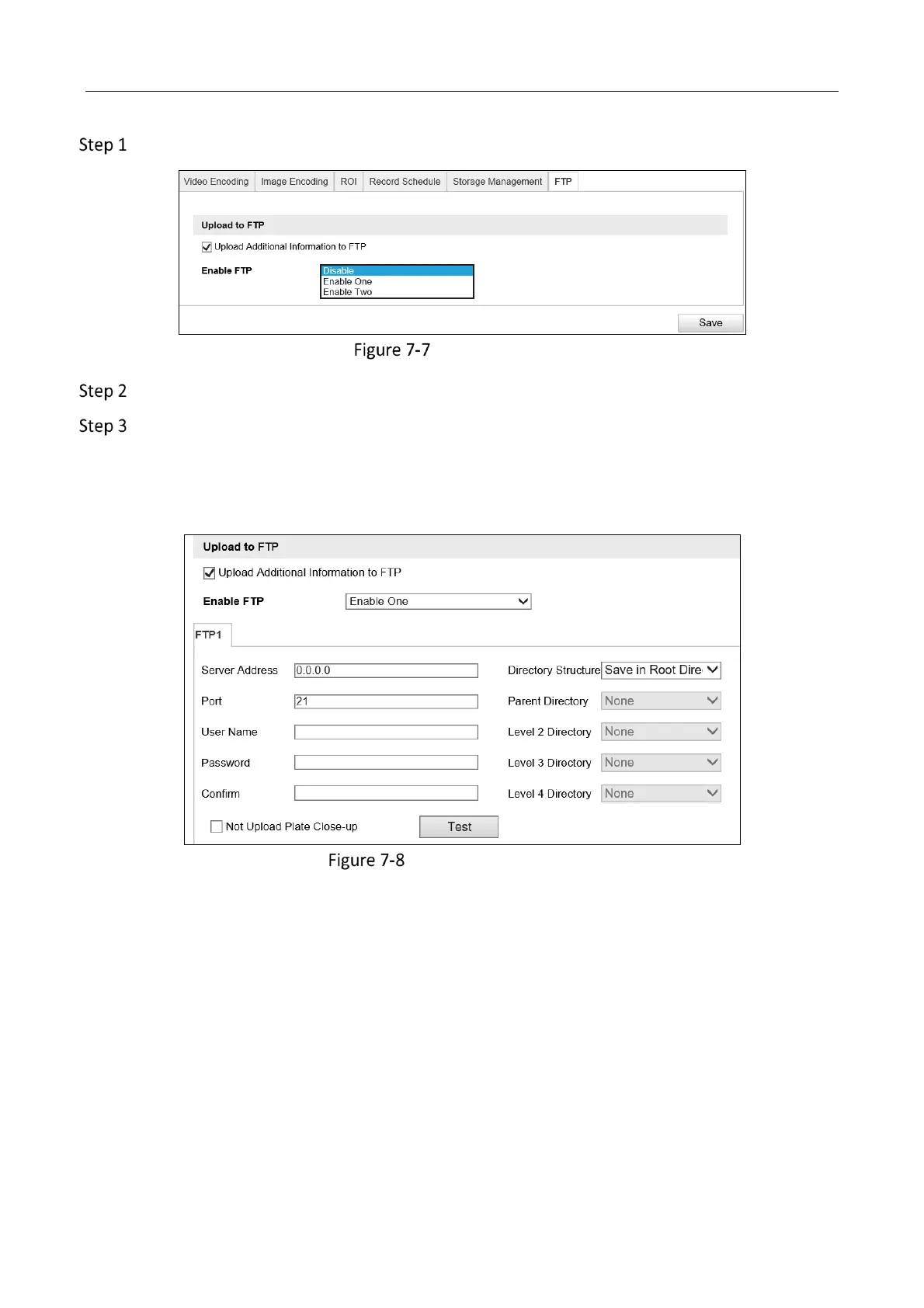

Go to Configuration > Device Configuration > Encoding and Storage > FTP.
FTP Configurations
Check Upload Additional Information to FTP to enable the uploading function.
Select the FTP uploading mode.
 Disable: No data will be uploaded to FTP.
 Enable One: Data can be uploaded to one FTP server.
1) Select Enable One.
Upload to One FTP Server
2) Configure the FTP server parameters, including Server Address, Port, User Name, and
Password.
3) Select the Directory Structure to save the files. Save in Root Directory, Save in Parent
Directory, and Save in Level 2/3/4 Directory are selectable.
4) Select the content in different directories. For the Parent Directory, you can select
Device Name, Device No., and Device IP Address. For the Level 2/3/4 Directory, you
can select Camera Name, Camera No., Device IP Address, etc.
5) (Optional) Check Not Upload Plate Close-up, the close-up of the license plate will not
be uploaded to the FTP server.
 Enable Two: Data can be uploaded to two FTP servers.
1) Select Enable Two.

HIKVISION iDS-2CD9396-AIS Specifications

General

Model	iDS-2CD9396-AIS
Type	Network Camera
Sensor Type	1/1.8" Progressive Scan CMOS
Aperture	F1.6
Video Compression	H.265+/H.265/H.264+/H.264
Bit Rate	32 Kbps to 16 Mbps
Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Ingress Protection	IP67
Focal Length	2.8 mm to 12 mm
Vertical Field of View	18°
Minimum Illumination	0 Lux with IR
Day/Night	IR cut filter
IR Range	Up to 30 m
Audio Compression	G.711/G.726
Network Interface	RJ45 (10/100/1000 Mbps)
Power Supply	PoE (802.3af)
Lens	Motorized varifocal lens
Lens Type	Motorized varifocal
