HIKVISION Network Audio/Video Encoder User Manual

User Manual of DS-6700 Series Audio/Video Encoder
59

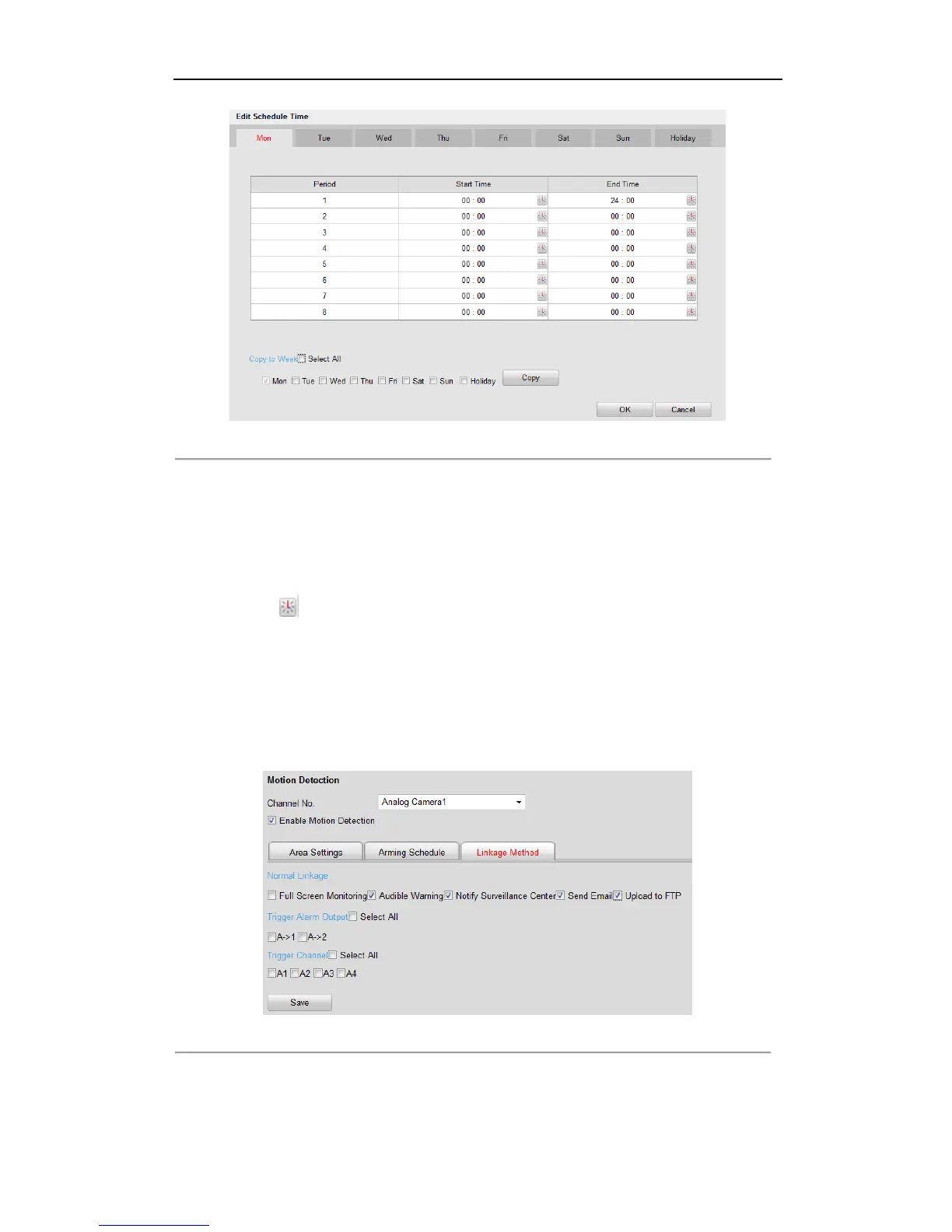

Figure 8.13 Motion Detection-Edit Arming Schedule
Notes:
1. The time of each segment can’t be overlapped. Up to 8 segments can be configured for each day.
2. The Holiday option is available in the Schedule dropdown list when you have enabled holiday
schedule in Holiday settings.
(3) Choose the day you want to set the arming schedule.
(4) Click the button to set the time period for the arming schedule.
(5) After you set the arming schedule, you can copy the schedule to other days.(Optional)
(6) Click OK button to save the settings.
3. Set the Alarm Actions Taken for Motion Detection
Purpose:
You can specify the alarm type when an event is triggered.
Figure 8.14 Motion Detection-Linking Method
Steps:
