Hirschmann RSPL 20 User Manual

18
Installation RSPL 20/30
Release 04 02/2013

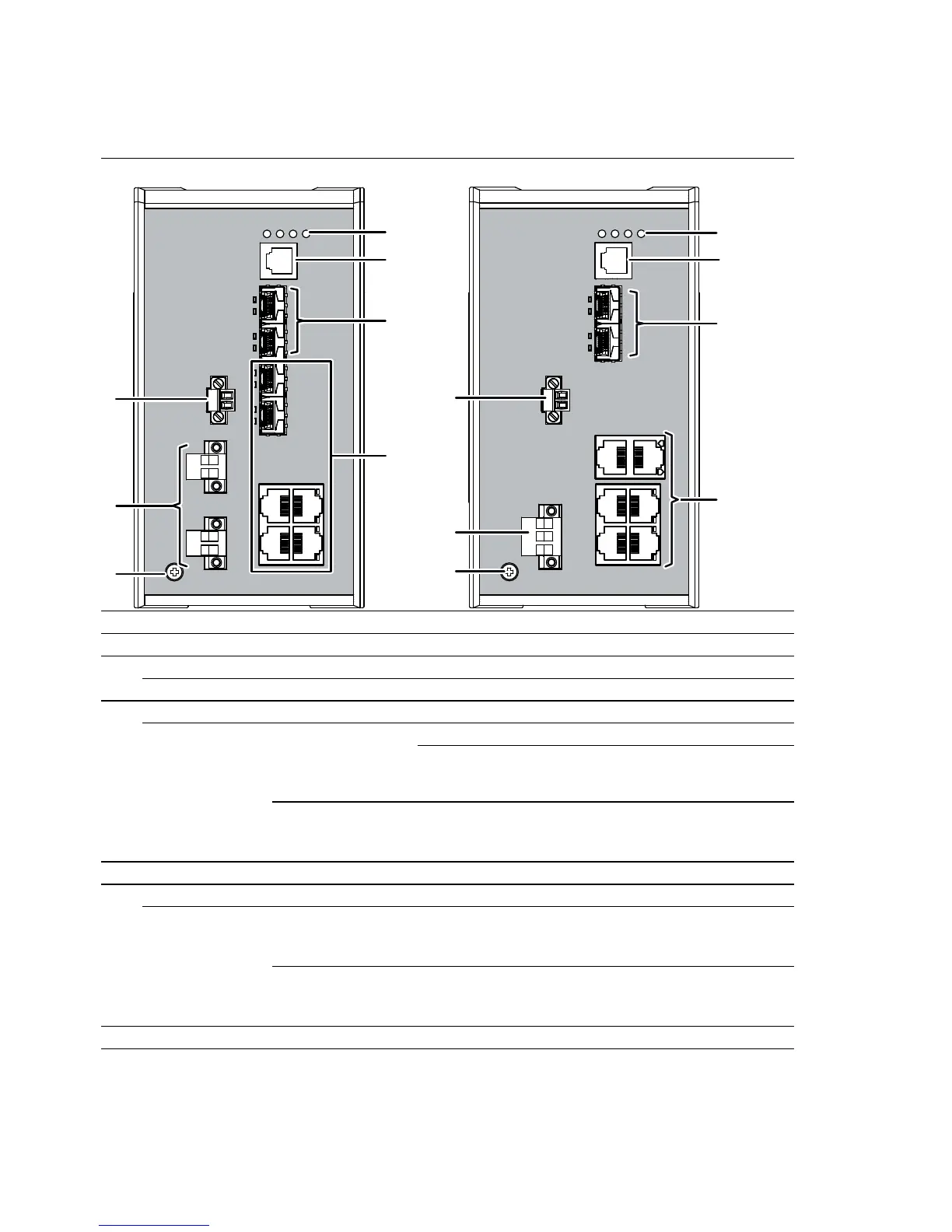

1.4 Device views
1.4.1 Front view
1 LED display elements for device status
2 V.24 interface
3 Uplink ports
2 × SFP slot for 100 Mbit/s F/O connection
4 Other ports
alternatively,
depending on
device variant
Port configuration
of the type:
YT
2 × SFP slot for 100 Mbit/s F/O connection
4 × RJ-45 socket for 10/100 Mbit/s twisted-pair
connection
Port configuration
of the type:
TT
6 × RJ-45 socket for 10/100 Mbit/s twisted-pair
connection
5 Grounding screw
6 Connection for the supply voltage
alternatively,
depending on
device variant
Operating voltage
of the type:
CC
 2 voltage inputs for redundant voltage supply
 2-pin terminal block
Operating voltage
of the type:
M9
 1 voltage input
 3-pin terminal block
7 Connection for the signal contact
Table 3: Front view:
left: Device variants RSPL20.........2Z6YT..CC....
right: Device variants RSPL20.........2Z6TT..M9....
1
2
3
4
7
5
6
1
4
7
6
3
5
2
