Installation RSPL 20/30
Release 04 02/2013
29
Note: The shield ground wire of the twisted pair lines is connected to the front
panel as a conductor.
 Mount the device on a 35 mm DIN rail in accordance with DIN EN 60175.
 Attach the upper snap-in guide of the device into the DIN rail and press
the device down against the DIN rail until it snaps into place.
2.3.2 Grounding
The housing is grounded via the separate ground screw on the bottom left of
the front panel.
The device variants with operating voltage type M9 have a protective
grounding.
The device variants with operating voltage type CC have a function
grounding.
 Connect the grounding to the ground screw of the device.
Note: For safety reasons, make sure you only connect the ground wire
before you set up the other connections.
2.4 Installing the SFP transceivers (optional)

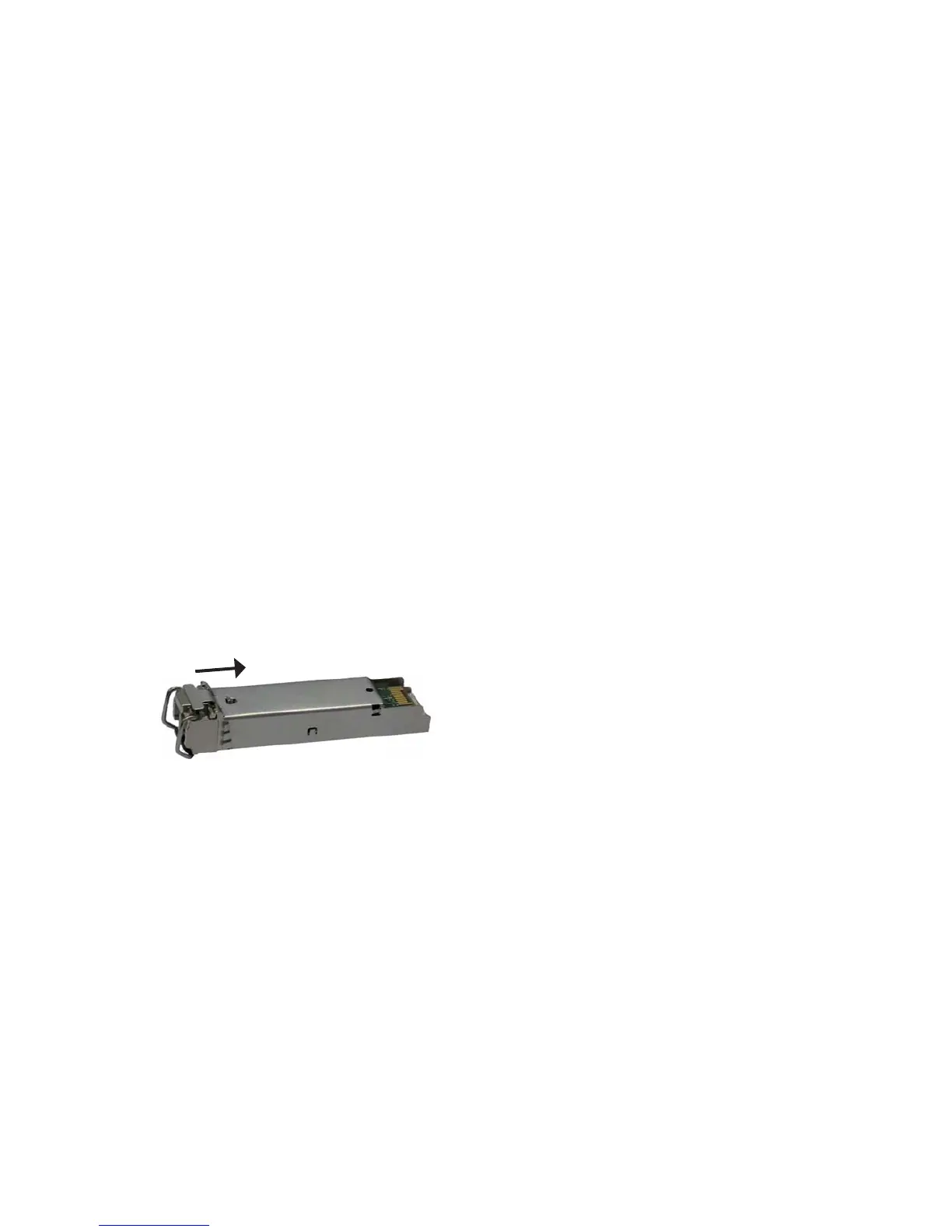

Figure 5: Fast Ethernet / Gigabit Ethernet Fiberoptic SFP Transceiver
 Before attaching an SFP transceiver, first remove the protective cap over
the socket.
 Push the SFP transceiver with the lock closed into the socket until you
hear it latch in.
Note: Only use Hirschmann SFP transceivers (see page 49 “Accessories”).
