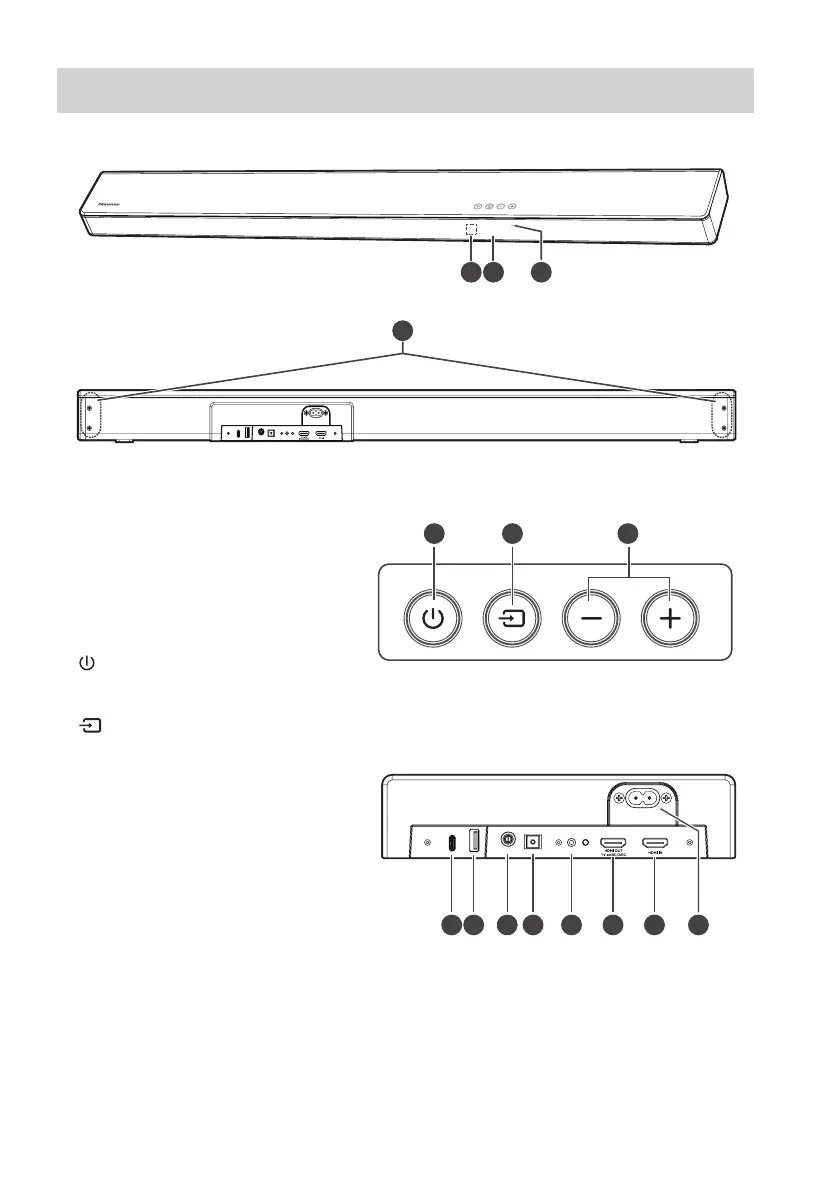

Identifying the Parts
Main Unit
5 6 7
8 15
OPT
2
9 10 11 12 13 14
3
4
1
1 Remote Control Sensor
Receive signal from the remote control.
2 Display Window
Show the current status.
3 Standby Indicator
4 Screws
Remove the screws then install the wall
mounting screws into the back of the unit.
5 (ON/OFF) button
Switch the unit between ON and Standby
mode.
6 (SOURCE) button
Select the play function.
7 VOL+/VOL- buttons
Increase/decrease the volume level.
8 DONGLE Socket
9 USB Socket
Insert the USB device to play music.
10 COAXIAL Socket
11 OPTICAL Socket
12 IR Socket
IR pass-through Cable connector.
13 HDMI OUT (TV eARC/ARC) Socket
Connect to a TV via HDMI cable.
14 HDMI IN Socket
15 AC~ Socket
