ABOUT VIDEOCASSETTE TAPES
29

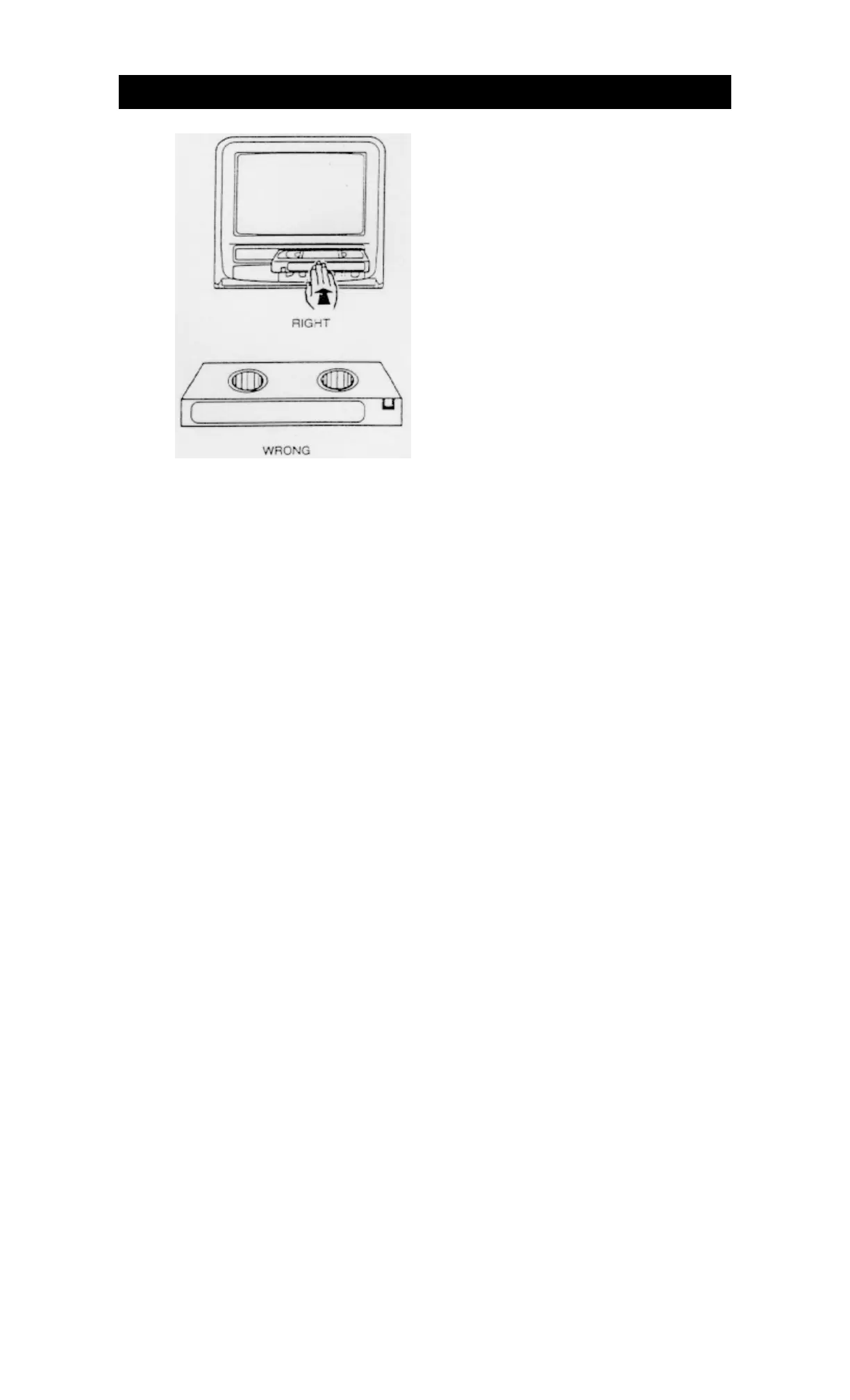

Push the videocassette gently into the slot on the front of the TV/VCR
Combination. You will feel the TV/VCR Combination take it in.
When the cassette is all the way in, the TV/VCR Combination powers up
automatically and a TAPE-IN indicator lights. It may also start playing
immediately if the safety tab has been removed.
To remove the cassette, simply press the STOP/EJECT button on the TV/VCR
Combination. (If the tape is playing, press STOP/EJECT once to stop the tape and
a second time to eject it.)
Now you can take the cassette out and put it away.
Tape Storage
Store your videocassettes in their jackets and in an upright position (like books in
a bookshelf) away from any magnetic sources. Resist the temptation to leave them
lying flat on top of the TV/VCR Combination. Tapes will last longer-and so will
your TV/VCR Combination-if you store them properly. Remember, dust, dirt and
liquids are enemies of your tapes and TV/VCR Combination.
To avoid aggravation later, apply the labels that come with new tapes. On them,
write notes to yourself about what you recorded.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Hitachi 20VR4B and is the answer not in the manual?

Hitachi 20VR4B Specifications

13VR3B

Display IconDisplay
picture tube size13 inches
VCR IconVCR
formatVHS
record/playback systemVideo: 4 heads, Audio: Monaural
tape speed33.35mm/sec(SP), 16.67mm/sec(LP), 11.12mm/sec(EP)
Power IconPower
power source120V AC, 60Hz
power consumptionApprox. 71W
Operating Environment IconOperating Environment
television systemEIA Standard NTSC color
channel coverage181 ch.
operating temperature41º F~104º F (5º C~40º C)
Weight and Dimensions IconWeight and Dimensions
height15 9/16 in.
width15 9/16 in.
depth14 3/4 in.
weight29.0 lbs.

20VR4B

Display IconDisplay
picture tube size20 inches
VCR IconVCR
formatVHS
record/playback systemVideo: 4 heads, Audio: Monaural
tape speed33.35mm/sec(SP), 16.67mm/sec(LP), 11.12mm/sec(EP)
Power IconPower
power source120V AC, 60Hz
power consumptionApprox. 89W
Operating Environment IconOperating Environment
television systemEIA Standard NTSC color
channel coverage181 ch.
operating temperature41º F~104º F (5º C~40º C)
Weight and Dimensions IconWeight and Dimensions
height19 7/8 in.
width20 1/2 in.
depth18 5/16 in.
weight52.0 lbs.
