(2) Assembly of clamp lever
q Insert spring and screw into the hole of the clamp lever
as shown in Fig. 9.
w Assemble the clamp lever to the handle collar, then
tighten the screw as shown in Fig. 10.
BEFORE USING
1. Make sure the power source is appropriate for the tool.
WARNING: Never connect the power tool unless the available AC power source is of the same
voltage as that specified on the nameplate of the tool.
Never connect this power tool to a DC power source.
2. Make sure the trigger switch is turned OFF.
WARNING: If the power cord is connected to the power source with the trigger switch turned
ON the power tool will start suddenly and can cause a serious accident.
3. Check the saw blade for visible defects.
Confirm that the saw blade is free of cracks or other visible damage.
4. Confirm that the saw blade is attached securely to the power tool.
Using the supplied wrench, tighten the bolt on the arbor shaft to secure the saw blade. For details, see Fig.
34-a and Fig. 34-b in the section on “SAW BLADE MOUNTING AND DISMOUNTING”.
5. Check the blade guards for proper operation.
Blade guards are designed to protect the operator from coming
into contact with the saw blade during operation of the tool.
Always check that the blade guard (plastic) moves smoothly and
covers the saw blade properly.
WARNING: Never operate the power tool if the blade guard (plastic) does not function smoothly.

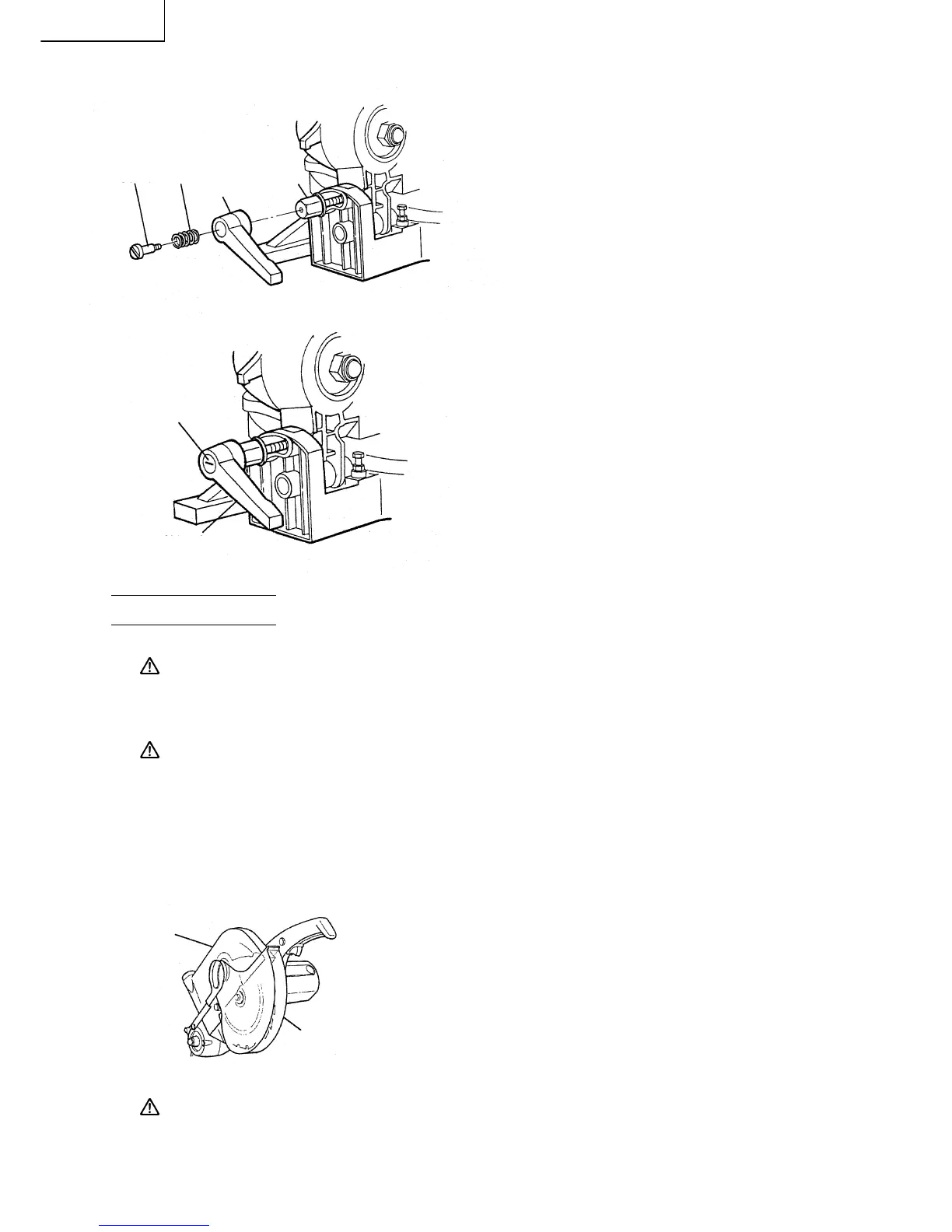

Fig. 9
Handle
Collar
Clamp
Lever
Screw
Spring
Fig. 10
Clamp Lever
Screw
Fig. 11
Blade Guard
(Metal)
Blade Guard
(Plastic)
