11
English

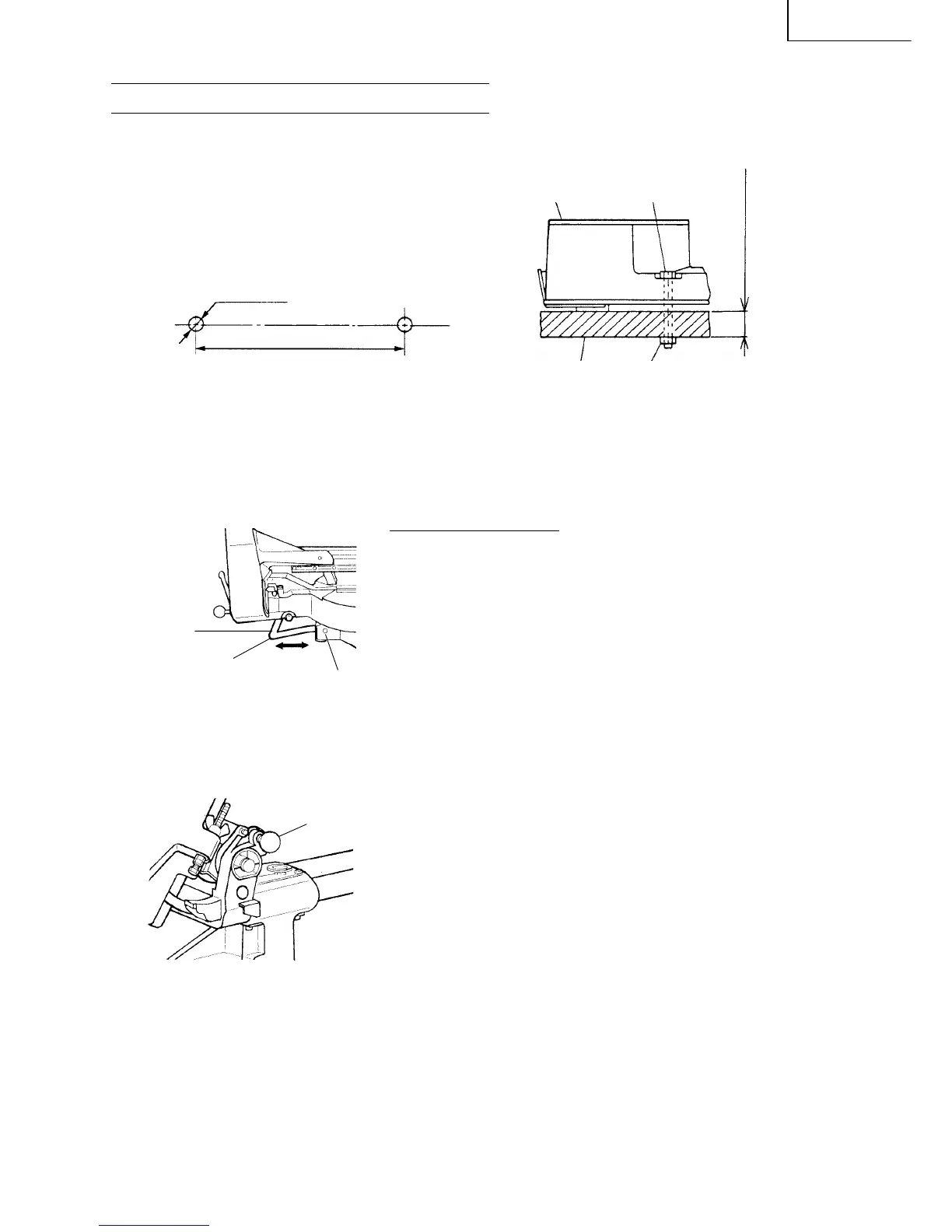

PREPARATION BEFORE OPERATION
Make the following preparations before operating the power tool:
1. Installation
Fig. 4
Attach the power tool to a level, horizontal work bench in accordance with Fig. 4.
Select 13/32" (10mm) diameter bolts suitable in length for the thickness of the work bench.
Bolt length should be at least 1" (25mm) plus the thickness of the work bench.
For example, use 2-23/64" (60mm) or larger bolts for a 1" (25mm) thick work bench.
The holder (B) attached to the rear of the base helps stabilize the power tool.
Holder (B) adjustment:
Loosen the 6mm bolt with the supplied 10mm × 13mm wrench.
Adjust the holder (B) until its bottom surface contacts the work
bench surface.
After adjustment, firmly tighten the 6mm bolt.
Fig. 5
2. Releasing the locking pin
When the power tool is prepared for shipping, its main parts are
secured by a locking pin.
Move the handle (see Fig. 1) slightly so that the locking pin can be
disengaged.
NOTE: Lowering the handle (see Fig. 1) slightly will enable you
to disengage the locking pin more easily and safely.
The lock position of the locking pin is for carrying and
storage only.
Fig. 6
3. Installing the dust bag, holder, stopper and vises
(The holder and stopper are optional accessories.)
Attach the dust bag, holder, stopper and vise assembly as indicated in Fig. 1.
7/16" (11mm)
2 Holes
17-21/64" (440mm)
1" (25mm) thick bench
Work Bench
13/32" (10mm) Nut
13/32" (10mm) BoltBase
6mm Bolt
Move
Adjust the holder
(B) until its bottom
surface contacts the
work bench surface.
Holder (B)
Locking Pin
To Next Page
