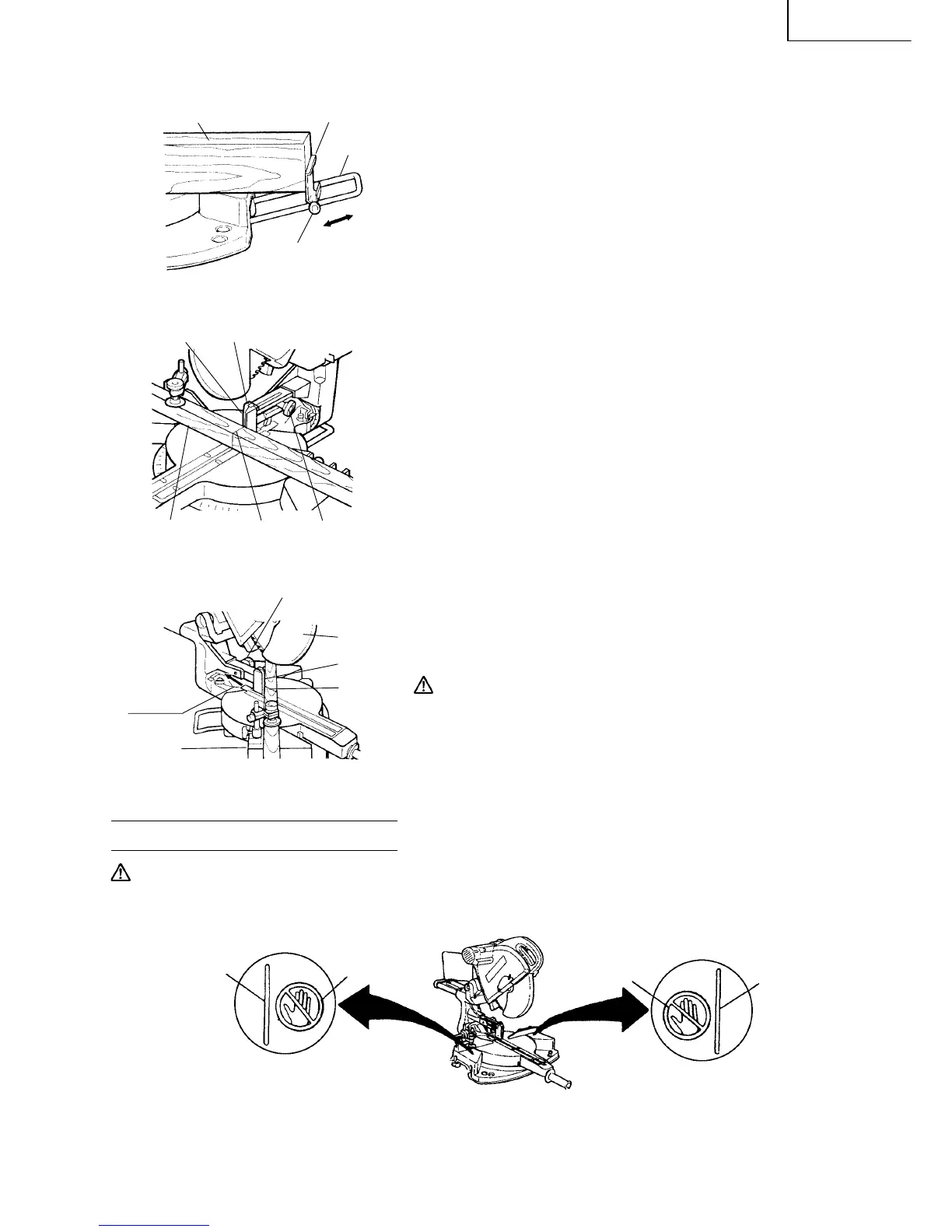

7. Stopper for precision cutting ... (Stopper is optional accessory)
The stopper facilitates continuous precision cutting in lengths of
11-13/32" to 18-1/2" (290mm to 470mm).
To install the stopper, attach it to the holder with the 6mm knob
bolt as shown in Fig. 13.
Fig. 13
8. Using an ink line
(1) Right angle cutting
Loosen the 8mm knob bolt and contact the tip of the guard
with the workpiece.
Aligning the ink line on the workpiece with the groove of the
guard, the workpiece is cut on the ink line (Fig. 14).
Fig. 14
(2) Miter cutting and compound cutting
(Miter cutting + bevel cutting)
Upon lowering the motor section, the safety cover is raised and
the saw blade appears.
Align the ink line with the saw blade (Fig. 15).
CAUTION: In some arrangements when the turntable is
rotated, the guard projects from the fence sur-
face. Loosen the 8mm knob bolt and push the
guard to the retracted position. Never lift the
safety cover while the saw blade is rotating.
Fig. 15
PRACTICAL APPLICATIONS
WARNING: * To avoid personal injury, never remove or place a workpiece on the table while the tool
is being operated.
* Never place your limbs inside of the line next to warning sign while the tool is being
operated. This may cause hazardous conditions (see Fig. 16).
Fig. 16
