CHB number Port 1 Port 2

CHB-2C 2C 4C

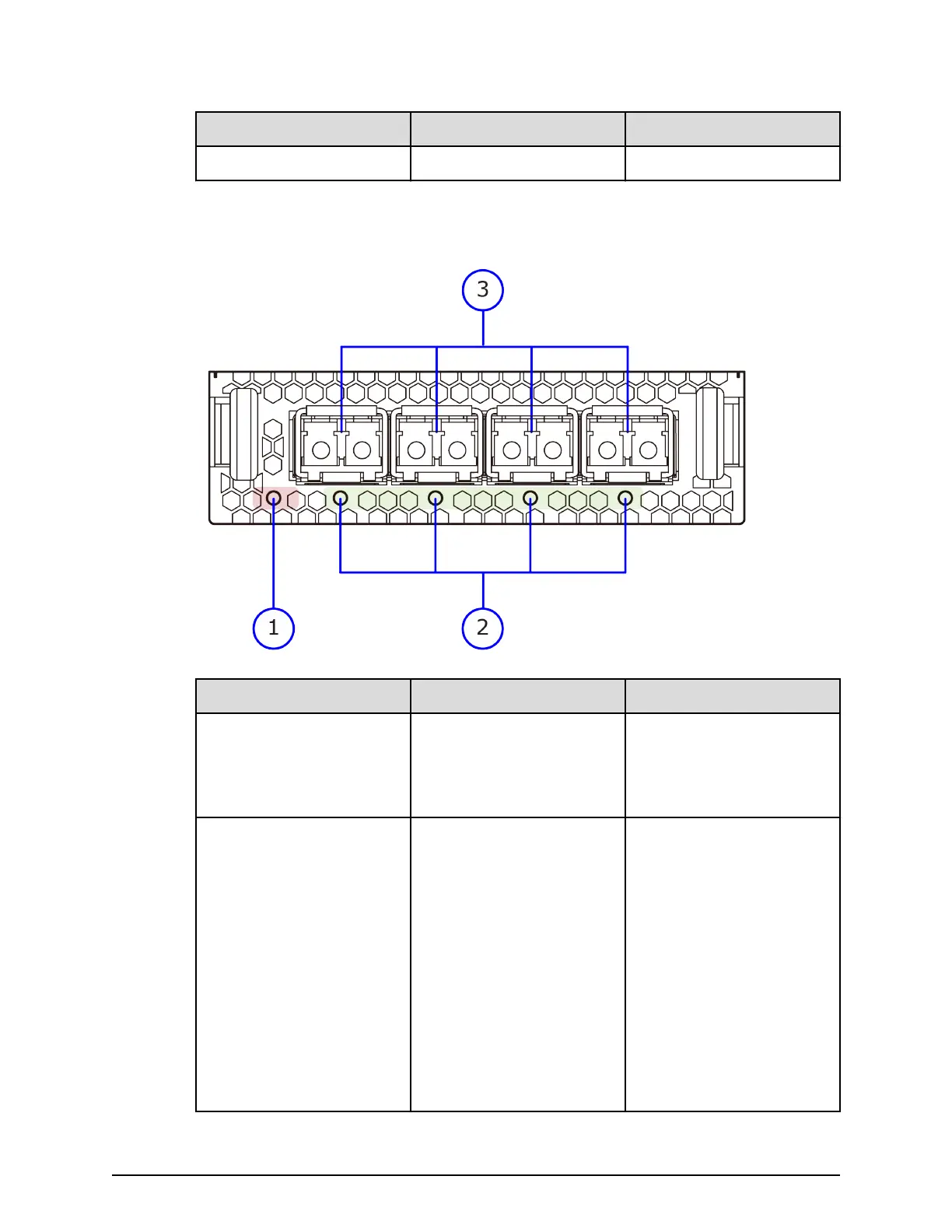

16-Gbps or 32-Gbps Fibre Channel (4-port) board LEDs and connectors

Number Item Description

1 STATUS LED Green: Front-end module is

in power-on state.

Red: Front-end module can

be removed safely.

2 PORT LED Red: Small form-factor (SFF)

pluggable can be removed.

Blue: Normal link status at

16-Gbps (16-Gbps).

Blue: Normal link status at

32-Gbps (32-Gbps).

Green: Normal link status at

4-Gbps or 8-Gbps (16-

Gbps).

Green: Normal link status at

8-Gbps or 16-Gbps (32-

Gbps).

16-Gbps or 32-Gbps Fibre Channel (4-port) board LEDs and connectors

Chapter 2: Hardware overview

Hitachi Virtual Storage Platform E590 and E790 Hardware Reference Guide 19
