Connections

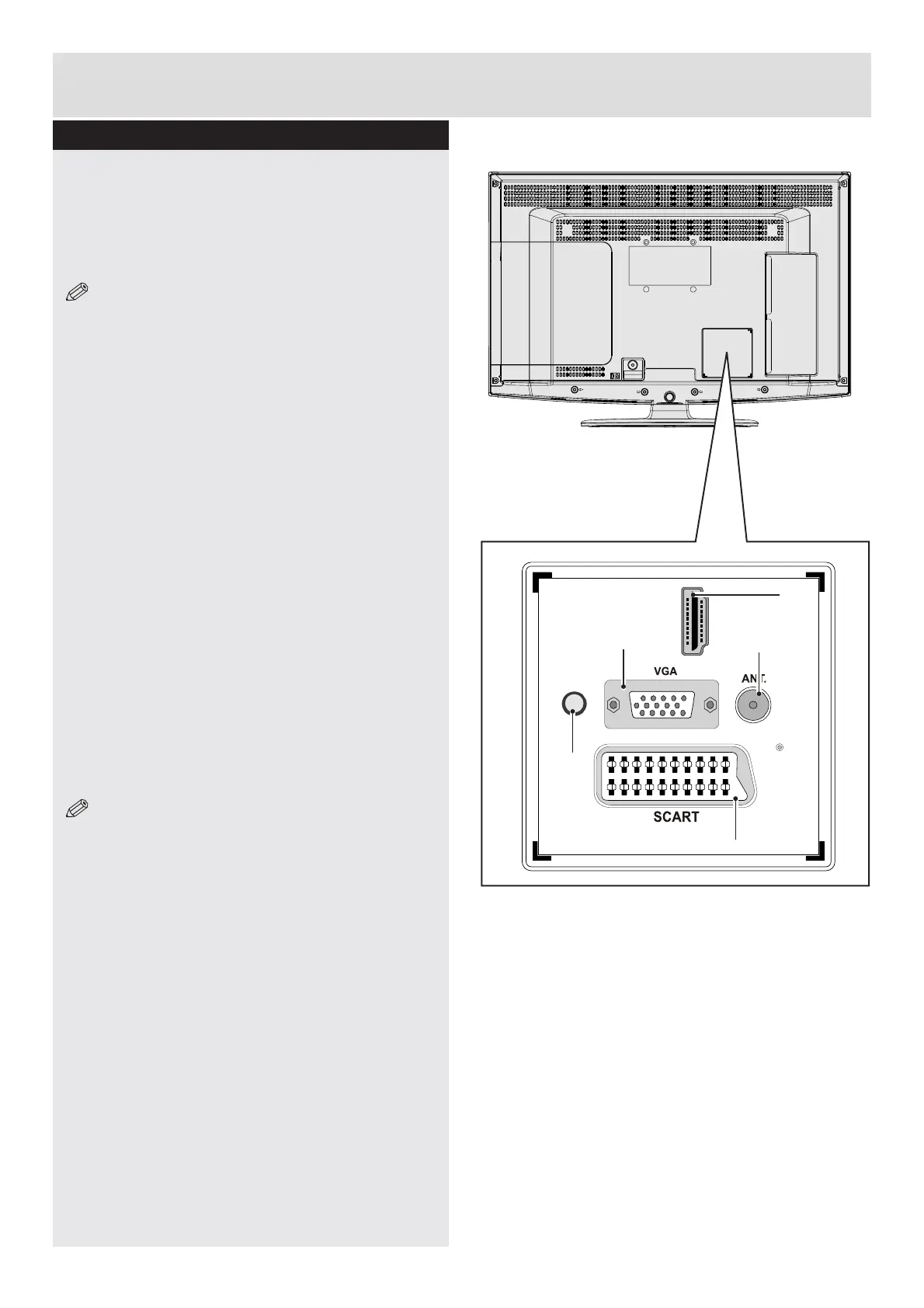

Back connections explained
1. SCART socket
Inputs or outputs for external devices. Connect the
SCART cable between the SCART socket on the
TV and the SCART socket on the external device
(decoder, VCR or DVD player).
NOTE: If an external device is connected via the
SCART socket, the TV will automatically switch to AV
mode.
2. HDMI Input
Connects a device that has an HDMI socket.
The TV can display High Defi nition pictures from
devices such as a High Defi nition Satellite Receiver
or DVD Player. These devices must be connected
via the HDMI sockets or Component Socket. No
sound connection is needed for an HDMI to HDMI
connection.
3. PC Input (VGA)
Connects a personal computer to the TV. Connect
the PC cable between the PC INPUT on the TV
and the PC output on the PC.
4. RF Input (ANT.)
Connects to aerial (antenna) or cable TV. If you use
a decoder or a media recorder, you should connect
the aerial cable through the device to the TV with
an appropriate aerial cable (see page 00).
NOTE: When using the wall mounting kit (optional),
we recommend that you plug all your cables into the
back of the TV before mounting on the wall.
5. S/PDIF Coaxial Out
Outputs digital audio signals of the currently
watched source.
Use an SPDIF coaxial cable to trasfer audio
signals to a device that has S/PDIF input.
HDMI 1
SPDIF
Coax.OUT
4
2
1
3
5
