Connections

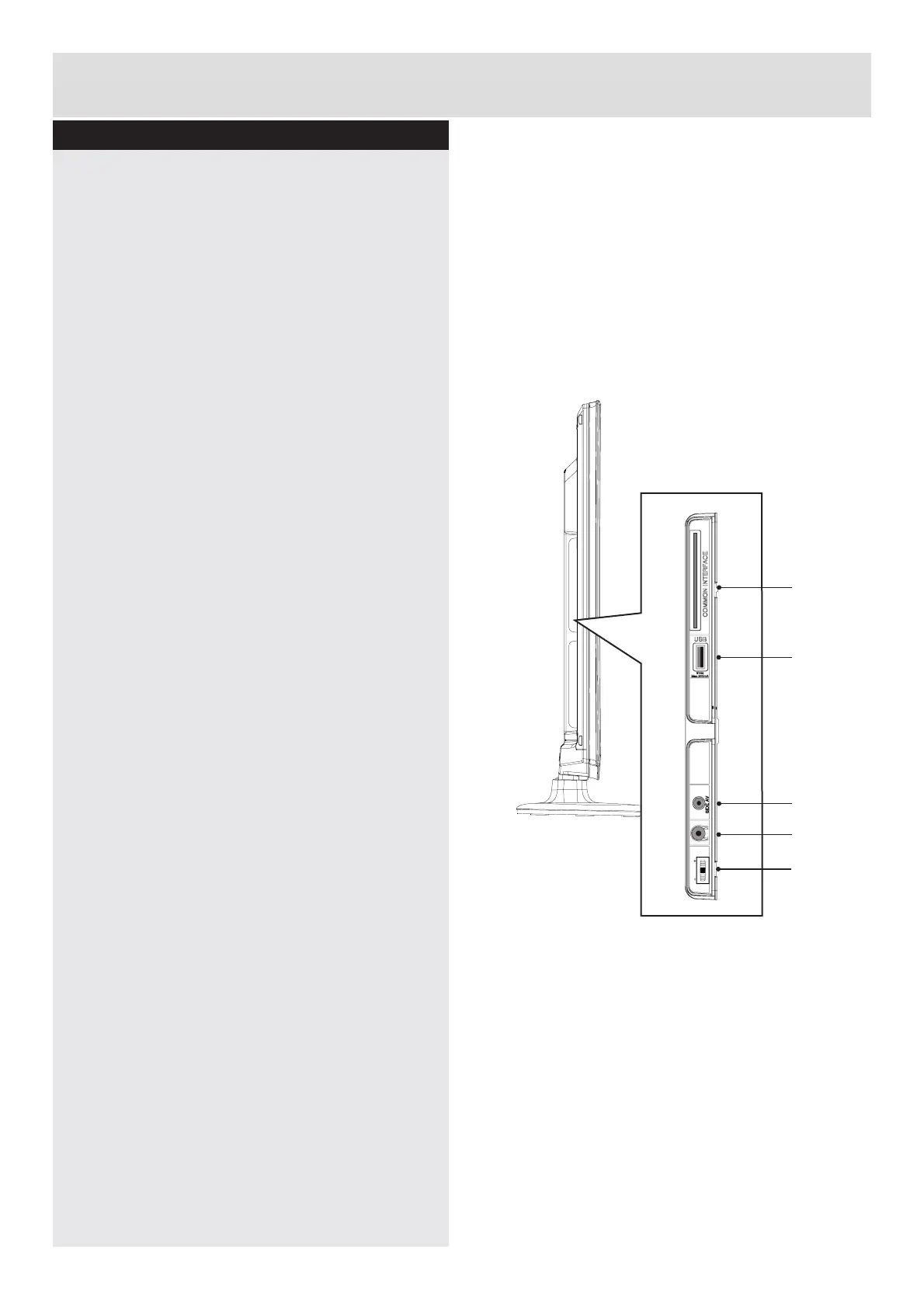

Left side connections explained
6. CI Slot
Used to insert a CI card. A CI card allows you to
view all the channels that you subscribe to. For more
information, see “Conditional Access” section.
7. USB Input
To connect devices to the TV, providing fast data
exchange. USB will only function in DTV mode.
Use an SPDIF coaxial cable to trasfer audio signals to
a device that has S/PDIF input.
8. Side audio-video connection
Side audio-video connection input is used for connecting
video and audio signals of external devices. To make
a video connection, you must use the supplied AV
connection cable for enabling connection. First,
plug singular jack of the cable to the TV’s Side AV
socket. Afterwards, insert your video cable’s (not
supplied) connector into the YELLOW input (located
on the plural side) of the supplied AV connection
cable. Colours of the connected jacks should match.
To enable audio connection, you must use RED and
WHITE inputs of the side AV connection cable. Afterwards,
insert your device’s audio cable’s connectors into the
RED and WHITE jack of the supplied side AV connection
cable. Colours of the connected jacks should match.
Note: You should use audio inputs of side AV connection
cable (RED & WHITE) to enable sound connection
when connecting a device to your TV by using PC or
COMPONENT VIDEO input.
9. Headphone
Headphone jack is used for connecting an external
headphone to the system. Connect to the HEADPHONE
jack to listen to the TV from headphones (optional).
10. Magic Button
Volume/ Programme/ Source and Standby-On
switch.
6
7
MODE
o
9
10
8
