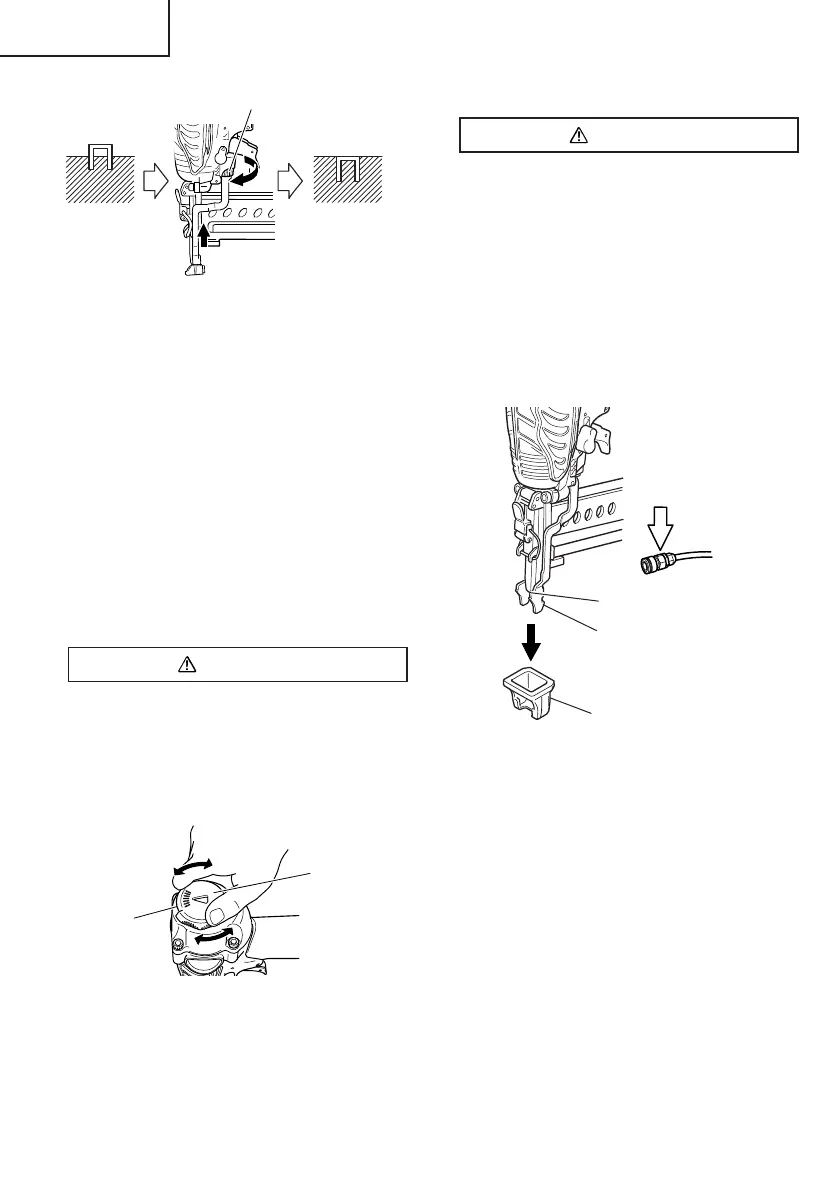

Hitachi n3804ab3 User Manual

Flush
Too Shallow
Turn Adjuster
3 Stop turning the adjuster when a suitable position is
reached for a stapling test.
4 Connect the air hose.
ALWAYS WEAR SAFETY GLASSES.
Perform a stapling test.
5 DISCONNECT AIR HOSE FROM STAPLER.
6 Choose a suitable position for the adjuster.
NOTE:
● The staple might not drive deep enough if using high
pressure with the adjuster set upwards (shallow side)
due to factors such as the material hardness or staple
type.
If that happens, reduce pressure and set the adjuster
to lowest position so the staple drives in at a good
position.
CHANGING THE EXHAUST DIRECTION
WARNING
● When changing the exhaust direction, be
sure to remove your fi nger from the trigger
and disconnect the air hose from the stapler.
The direction of the exhaust vent can be changed by
turning the top cover.
Exhaust
vent
Top cover
USING THE NOSE CAP
WARNING
● When detaching or attaching the nose cap,
be sure to remove your fi nger from the trigger
and disconnect the air hose from the stapler.
The nose cap is attached to the push lever tip to protect
the workpiece from scratches or damage. Remove in the
order shown below when not using.
1 DISCONNECT AIR HOSE FROM STAPLER.
2 Pull out the nose cap in the direction of the arrow as
shown in the diagram.
○ Attach to the tip of the push lever in the reverse order
of detaching.
Firing head
Nose cap
Push lever
Disconnect air
hose
1
18
English
000BookN3804AB3(S)US.indb18000BookN3804AB3(S)US.indb18 2015/12/2516:49:542015/12/2516:49:54
