10-4. Disassembly and Reassembly of the Magazine Section
Tools required Phillips screwdriver
Roll pin pullers (4 mm dia., 2.5 mm dia.)
Hex. bar wrench (4 mm)
Wrench M5
(1) Disassembly and reassembly of the magazine section
(a) Disassembly (See Fig. 19.)
Loosen the Hex. Socket Hd. Bolt M5 x 20 [86] and the Nylon Nut M5 [69] then remove the Sleeve [70].
Deform Pushing Lever Cover (A) [71] using a flat-blade screwdriver and disengage it from the Nose [22].
Loosen the Machine Screw (W/Washers) M5 x 30 (Black) [37] of the Body [18]. Then the Magazine Ass'y
[98] can be removed.
Engaged.
Deform Pushing Lever Cover (A)
by inserting a flat-blade screwdriver.

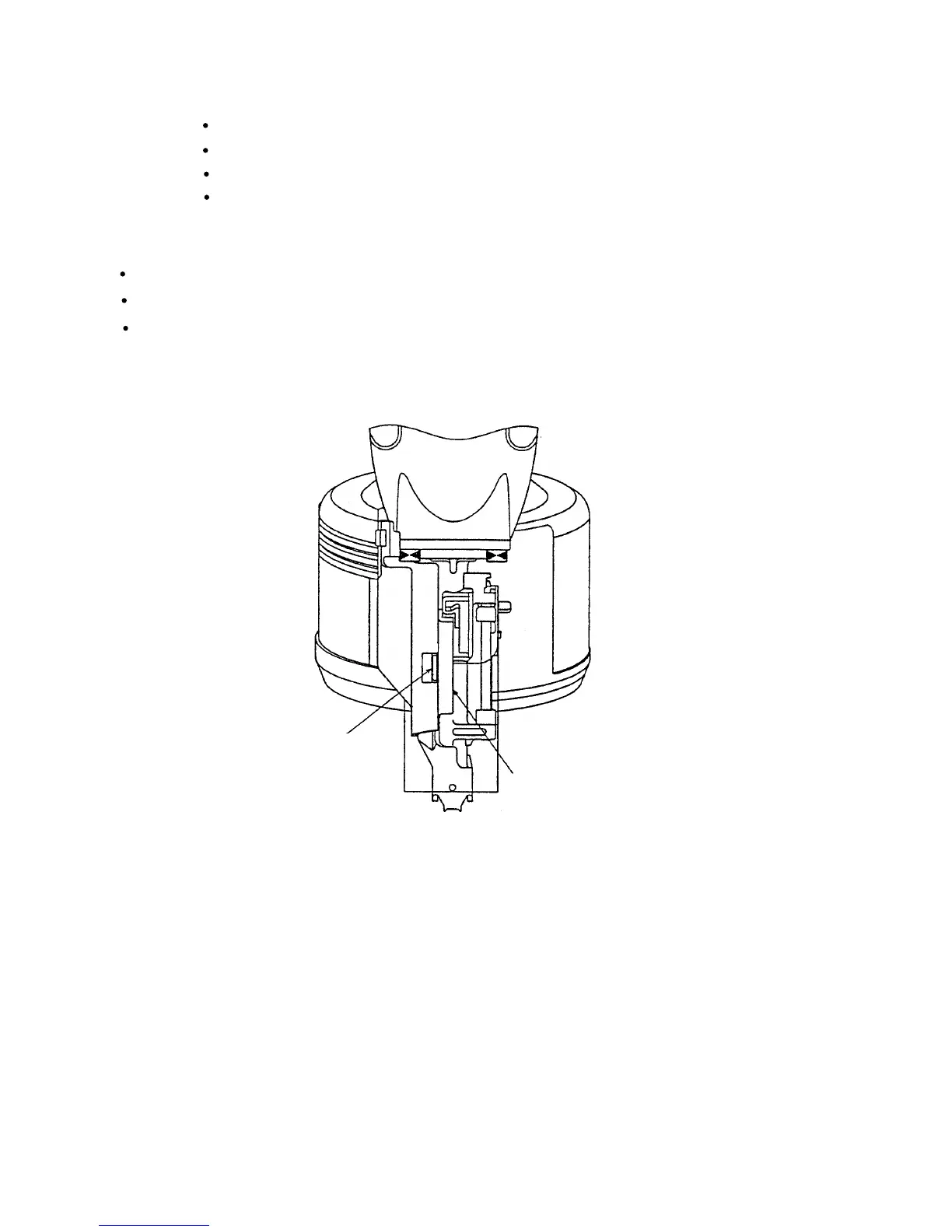

Fig. 18
