10-5. Disassembly and Reassembly of the Driving Section

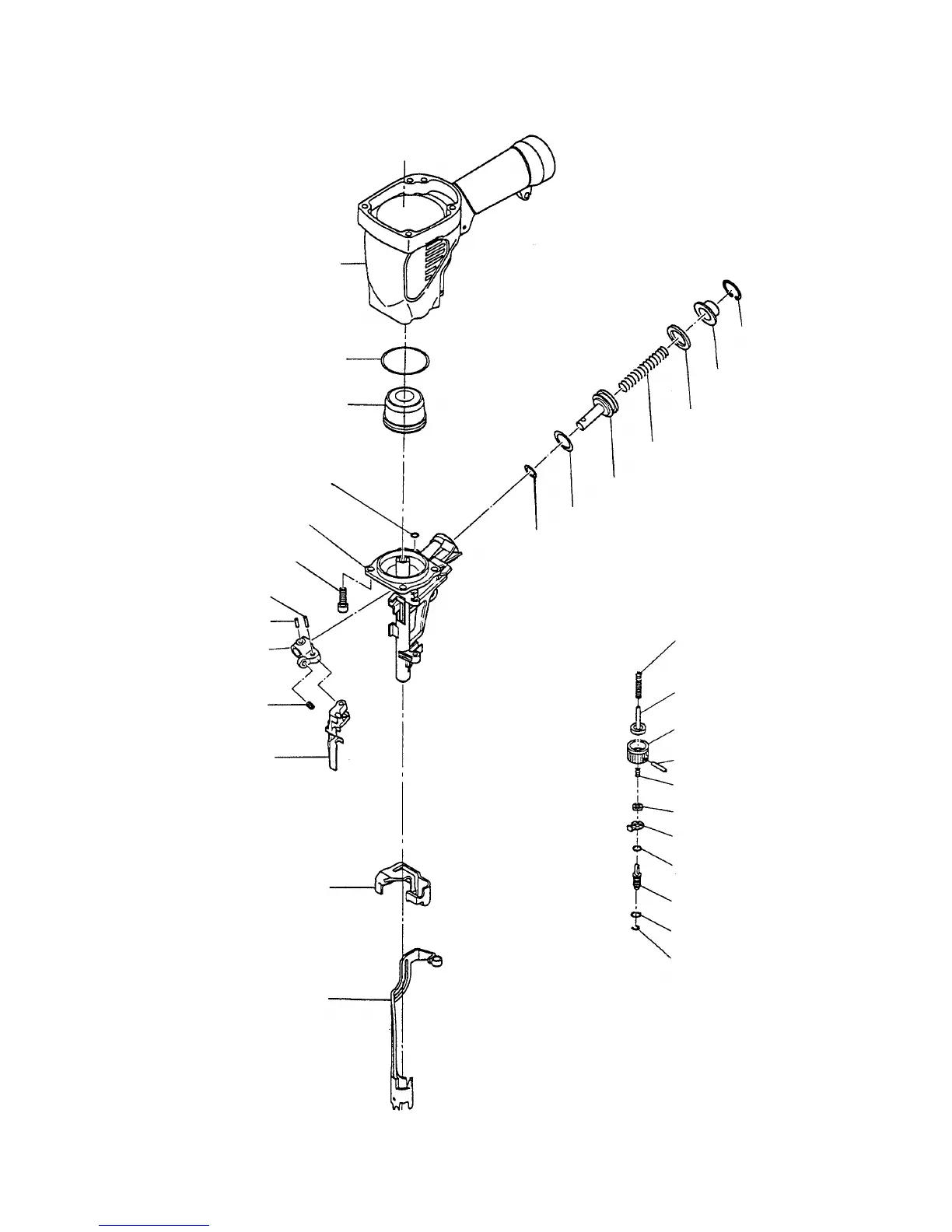

Fig. 21 Disassembly and reassembly of the driving section
Bumper [66]
Feed Piston Cover [67]
Feed Spring [65]
Nose [22]
Nylock High Tension
Bolt M6 x 20 [23]
Roll Pin D4 x 16 [25]
Pushing Lever Cover (B) [30]
Feeder Arm (B) [26]
Body [18]
O-ring (S-46) [13]
Pushing Lever Spring [41]
Pushing Lever (A) [31]
Pushing Lever (C) [42]
Adjuster [44]
Piston Bumper [20]
Feed Piston [64]
O-ring (P-4) [21]
Plunger (B) [24]
Feeder Spring [27]
Feeder [28]
Roll Pin D2 x 16 [43]
Adjuster Spring [45]
Adjsuter Plate (B) [46]
Adjsuter Plate (A) [47]
O-Ring (S-4) [48]
Pushing Lever (B) [49]
Retaining Ring (E-type)
for D3 Shaft [51]
O-ring (S-5) [50]
O-ring (P-9) [62]
O-ring (P-21) [63]
Retaining Ring for
D28 Hole [68]
