5-2. Nail Selection
The Model NV 75AG utilizes common round-head nails collated by wire or sheet into coils from 200 to 300 pieces.
Applicable nail dimensions are shown below. However, it is recommended to use genuine HITACHI nails to
ensure satisfactory driving quality.
CAUTION: Ensure that nails are as specified in Figs. 1, 2 and 3. Other nails will cause clogging of nails
and subsequent damage to the nailer.
NOTE: Aluminum nails may bend when driven into a hard workpiece. Test before use.
5.7 mm
(0.224")
45 mm (1-3/4")
Min.

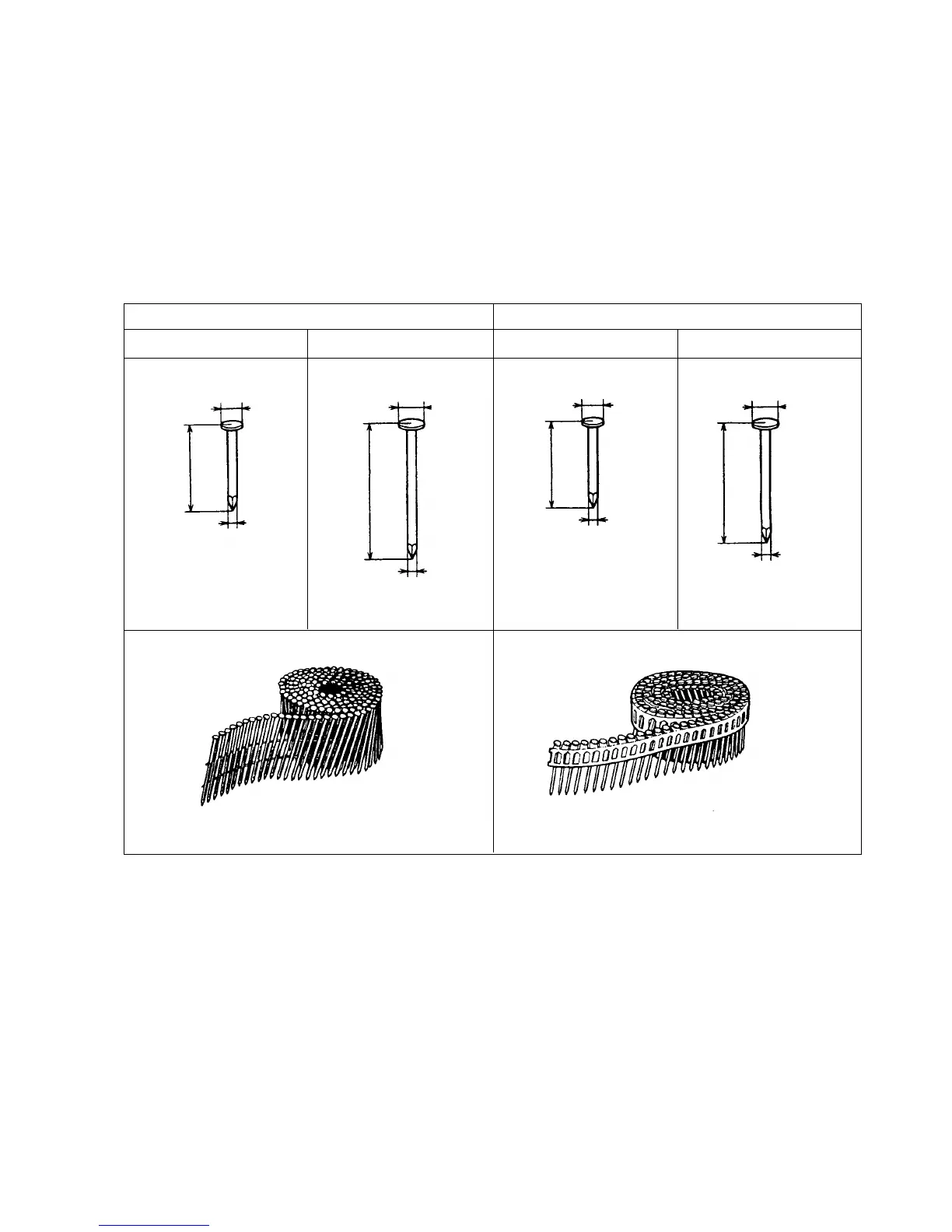

Fig. 1 Dimensions of nails
Max.
6 mm
(0.236")
2.5 mm
(0.099")
2.3 mm
(0.090")
6 mm
(0.236")
45 mm (1-3/4")
Min.
Max.
7.2 mm
(0.283")
75 mm (3")
3.3 mm
(0.131")
2.5 mm
(0.099")
Wire-collated nails
Sheet-collated nails
57 mm (2-1/4")
