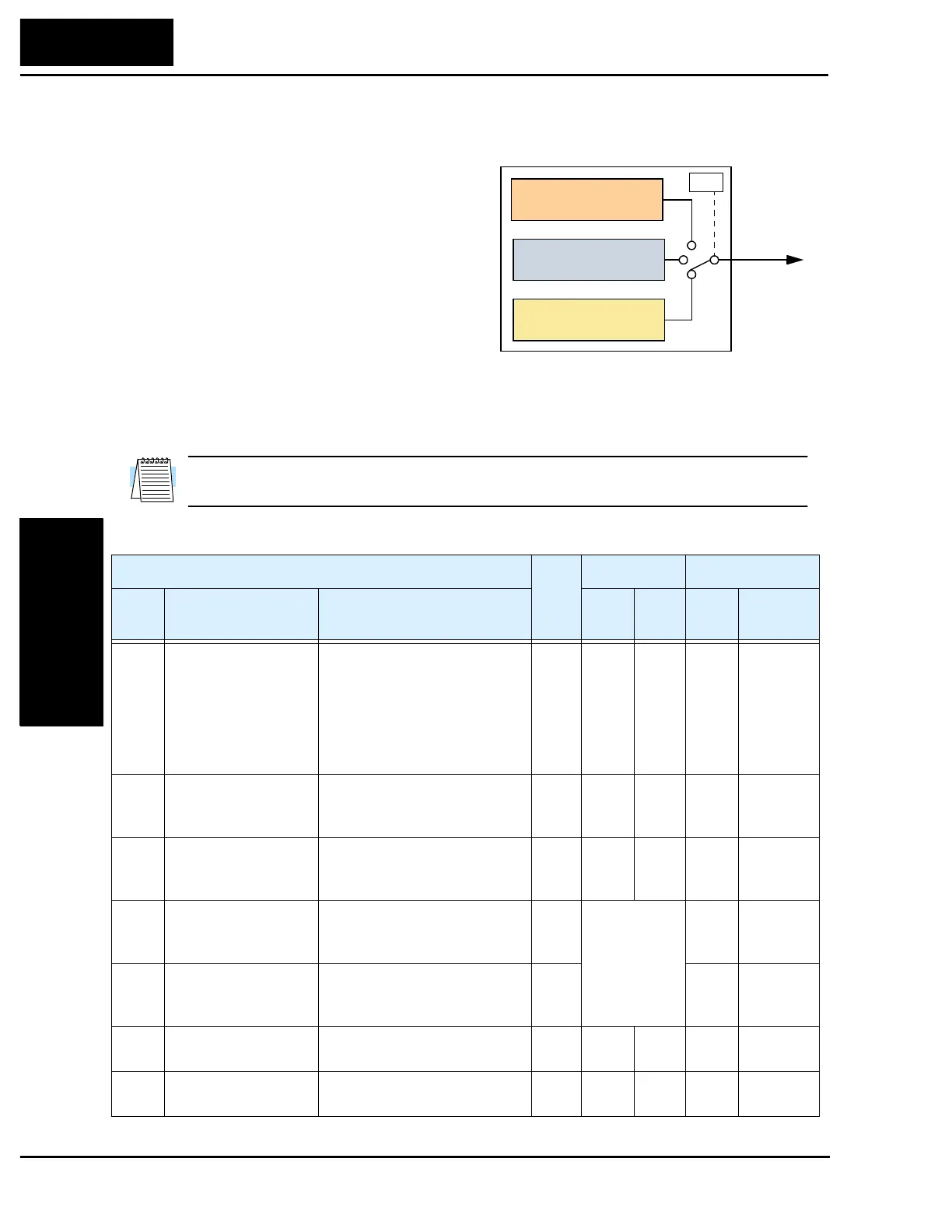

“H” Group: Sensorless Vector Functions
Configuring
Drive Parameters
3–36
“H” Group: Sensorless Vector Functions
The “H” group parameters configure the
inverter for the motor characteristics. You
must manually set H03 and H04 values to
match the motor. The remaining parame-
ters are related to sensorless vector control
(SLV), and are in use only when function
A44 is set for SLV as shown in the
diagram. The auto-tuning procedure on
page 4–30 automatically sets all the
parameters related to SLV. If you config-
ure the inverter to use SLV, we highly
recommend letting the auto-tuning procedure derive the values for you. If you want to
reset the parameters to the factory default settings, use the factory default initialization
procedure on page 6–8.
NOTE: The auto-tuning procedure and related warning messages are on page 4–30.
Please read these before trying to auto-tune the motor parameters.
Output
frequency
A44
Variable freq. control,
constant torque
Variable freq. control,
reduced torque
Sensorless vector
control
Inverter PWM Switching Algorithms
“H” Function
Run-
time
Edit
Defaults DOP,DRW,DOP+
Func.
Code
Name Description
EU/
US
Units
Func.
Code
Name
H01 Auto-tuning Setting Three states for auto-tuning
function, option codes:
00...Auto-tuning OFF
01...Auto-tune (rotate motor)
02...Auto-tune (measure motor
resistance and inductance,
without rotating)
✘
00 —
F-05 AUX
AUTO
H02 Motor data selection Two selections, option codes:
00...Use standard motor data
01...Use auto-tuning data
✘
00 —
F-05 AUX
DATA
H202 Motor data selection,
2nd motor
Two selections, option codes:
00...Use standard motor data
01...Use auto-tuning data
✘
00 —
F-05 2AUX
DATA
H03 Motor capacity Nine selections:
0.2 / 0.4 / 0.75 / 1.5 / 2.2 / 3.7
5.5 / 7.5 / 11
✘
specified by
the capacity
of each
inverter
F-05 AUX K
H203 Motor capacity, 2nd
setting
Nine selections:
0.2 / 0.4 / 0.75 / 1.5 / 2.2 / 3.7
5.5 / 7.5 / 11
✘
F-05 2AUX K
H04 Motor poles setting Four selections:
2 / 4 / 6 / 8
✘
4 poles
F-05 AUX P
H204 Motor poles setting,
2nd motor
Four selections:
2 / 4 / 6 / 8
✘
4 poles
F-05 2AUX P
To Next Page
