Using Intelligent Input Terminals
Operations
and Monitoring
4–6
Using Intelligent Input Terminals

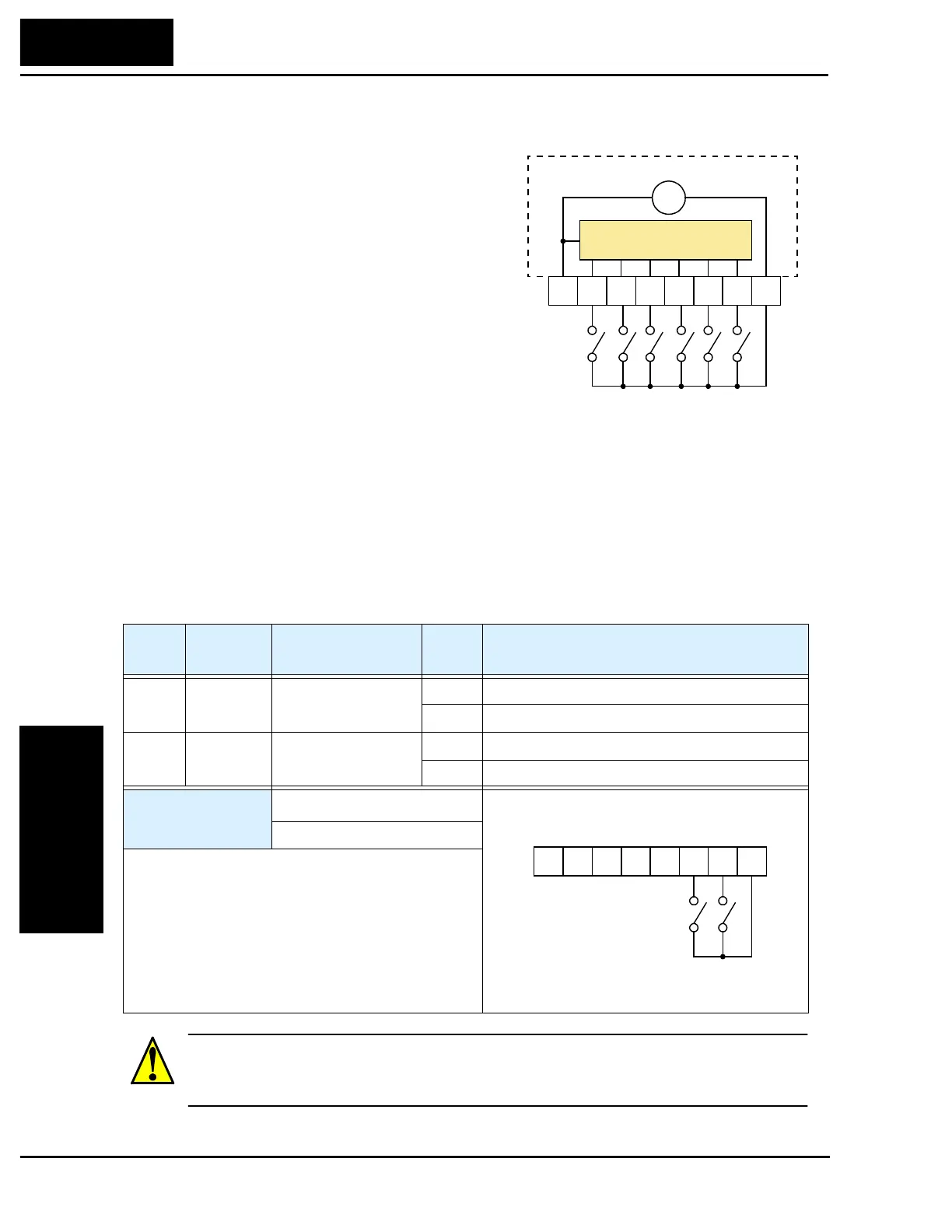

Terminals 1, 2, 3, 4, 5, and 6 are identical,
programmable inputs for general use. The
input circuits can use the inverter’s internal
(isolated) +24V field supply (P24) to power
the inputs. The input circuits are internally
connected to the power supply ground. As the
diagram shows, you can use a switch (or
jumper) to activate an input terminal which
has been programmed. If you use an external
supply, its GND terminal must connect to the
“L” terminal on the inverter to complete the
input circuit. We recommend using the top
row “L” logic GND for login input circuits
and the “L” GND on the bottom row of termi-
nals for analog I/O circuits.
Forward Run/Stop and Reverse Run/Stop Commands:
When you input the Run command via the terminal [FW], the inverter executes the
Forward Run command (high) or Stop command (low). When you input the Run
command via the terminal [RV], the inverter executes the Reverse Run command (high)
or Stop command (low).
WARNING: If the power is turned on and the Run command is already active, the motor
starts rotation and is dangerous! Before turning power on, confirm that the Run
command is not active.
P24
1236 45L
Input circuits
+
–
Inverter
24VDC
Option
Code
Terminal
Symbol
Function Name State Description
00 FW Forward Run/Stop ON Inverter is in Run Mode, motor runs forward
OFF Inverter is in Stop Mode, motor stops
01 RV Reverse Run/Stop ON Inverter is in Run Mode, motor runs reverse
OFF Inverter is in Stop Mode, motor stops
Valid for inputs:
C01, C02, C03, C04, C05, C06
Required settings:
A02 = 01
Notes:
•
When the Forward Run and Reverse Run
commands are active at the same time, the inverter
enters the Stop Mode.
•
When a terminal associated with either [FW] or
[RV] function is configured for
normally closed
,
the motor starts rotation when that terminal is
disconnected or otherwise has no input voltage.
P24
1236 45L
Example:
RV
FW
See I/O specs on page 4–5.
