First time use
test-bleed 3/3/06 10:18 AM Page 14

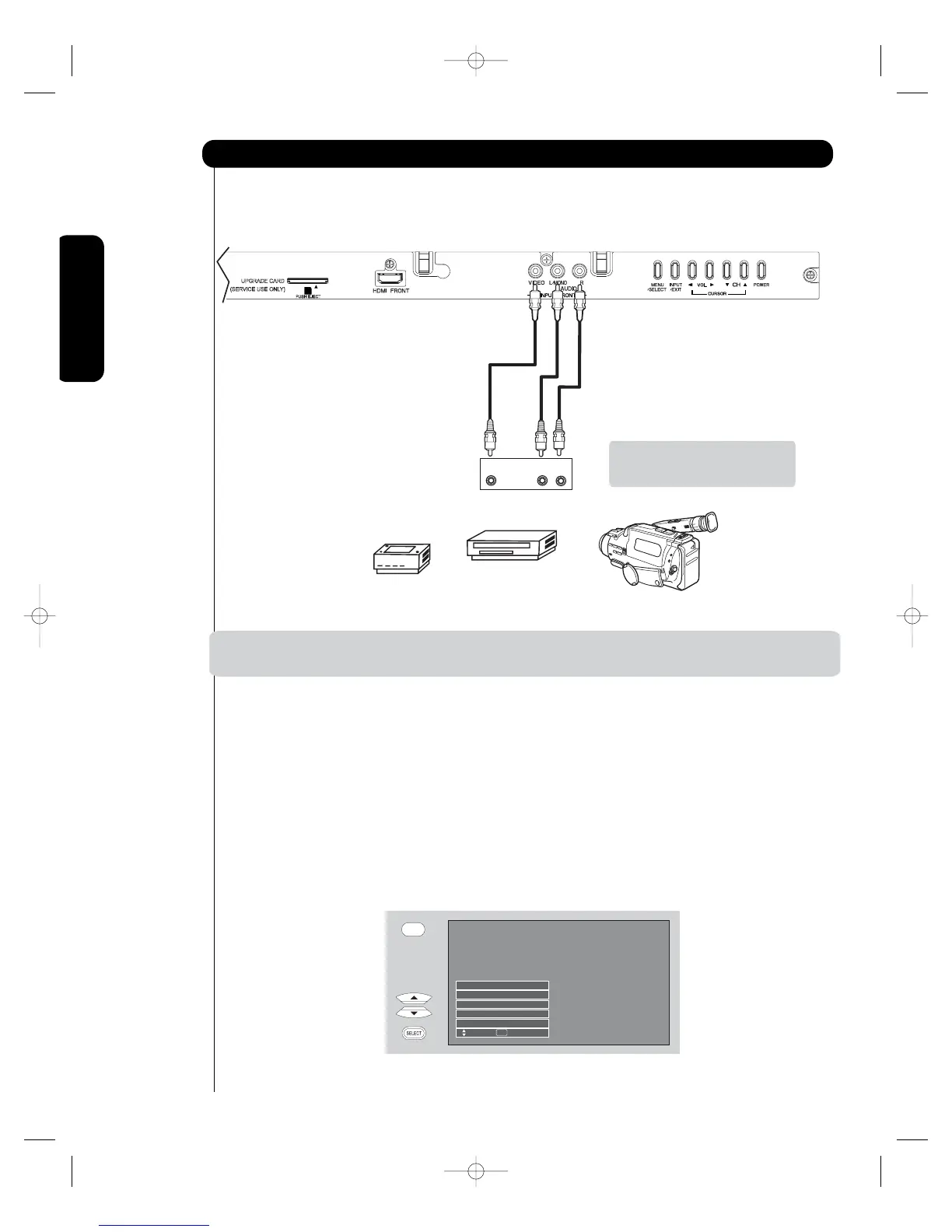

The FRONT panel jacks are provided as a convenience to allow you to easily connect a camcorder , DVD, Video
Game and a VCR as shown in the following examples:
NOTE:1. Completely insert connection cord plugs when connecting to front panel jacks. If you do not, the
played back picture may be abnormal.
Connecting External Video Sources
FRONT INPUT PANEL
specifications.
Note : Special device cables will be
according to the own device
Video Game
Video Camera
COMPOSITE VIDEO
OUTPUT CAPABILITY
DVD , Video Game
Console.
OUTPUT
L R
Video
PUSH EJECT
UPGRADE CARD
(SERVICE USE ONLY)
-
The exact arrangement you use to connect the VCR, camcorder, laserdisc player, DVD player, or HDTV Set
Top Box to your Plasma TV is dependent on the model and features of each component. Check the
owner’s manual of each component for the location of video and audio inputs and outputs.
The following connection diagrams are offered as suggestions. However, you may need to modify them to
accommodate your particular assortment of components and features. For best performance, video and
audio cables should be made from coaxial shielded wire.
Before Operating External Video Source
Connect an external source to one of the INPUT terminals, then press the INPUTS button to show the
INPUTS menu. Use the CURSOR PAD ( and ) to select the Input of your choice. Then press
the SELECT button or the CURSOR PAD to confirm your choice (see page 26).
HDMI 2
HDMI-Front
Cable
Air /
Input 1
Move SEL Sel.
Input 2
INPUTS
To Next Page
