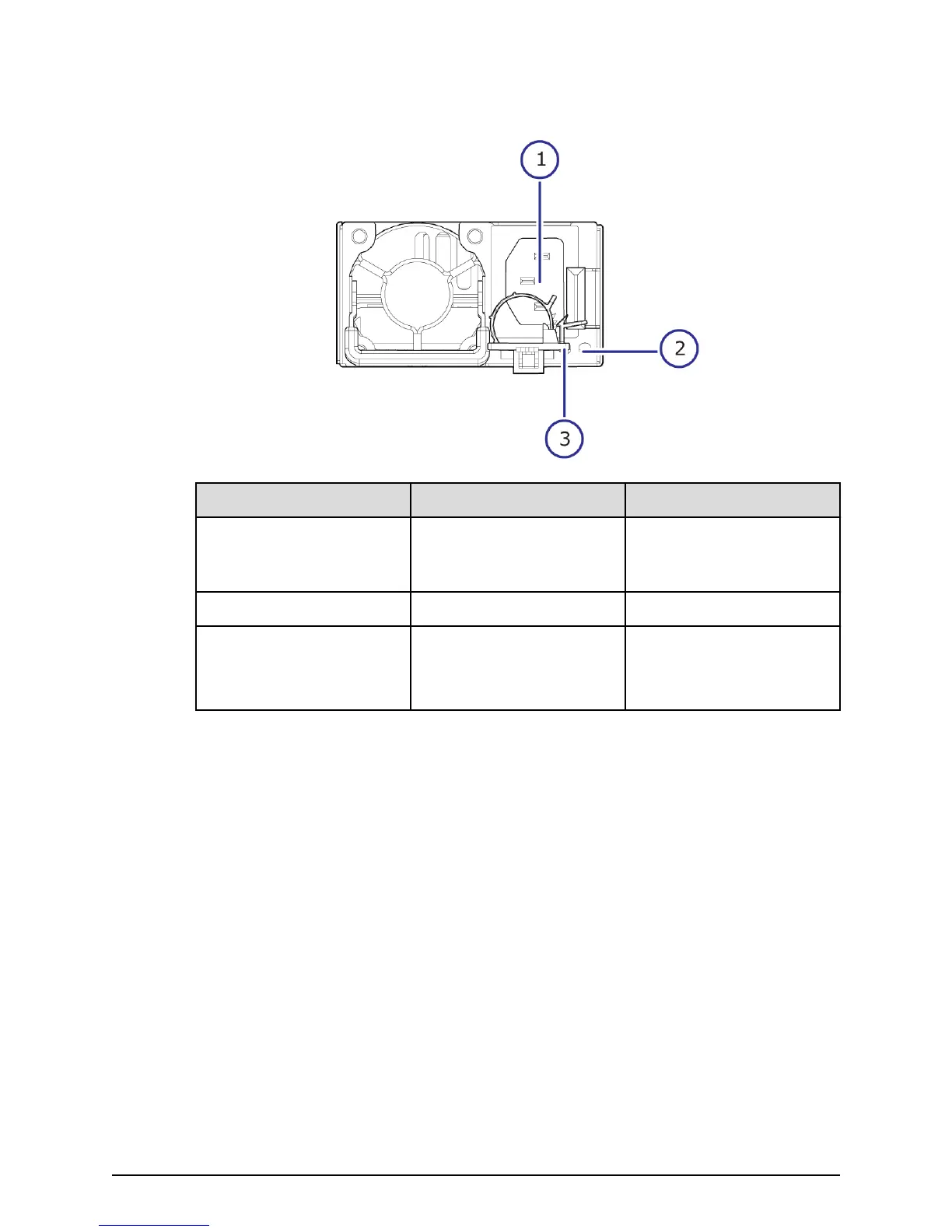

The following table describes the denitions of the CBSS controller AC power supply unit
LEDs and connectors.
Number Item Description
1 Receptacle Connects to the power
cable provided with the
storage system.
2 AC IN LED Blue: AC input is normal.
3 ALM/RDY LED Red: Power supply unit can
be replaced.
Green: Normal operation.
Controller chassis with large form-factor drive bays (CBSL)
The following describes the CBSL controller chassis technical specications and
associated physical features of the controller.
CBSL mechanical specications
The following table provides a description and specications of the CBSL controller
chassis.
Controller chassis with large form-factor drive bays (CBSL)
Chapter 2: Hardware components and specications
Hitachi Virtual Storage Platform G130 Hardware Reference Guide 26
