GENERAL / Painting
W1-3-1
PAINTING
M4FJ-01-001

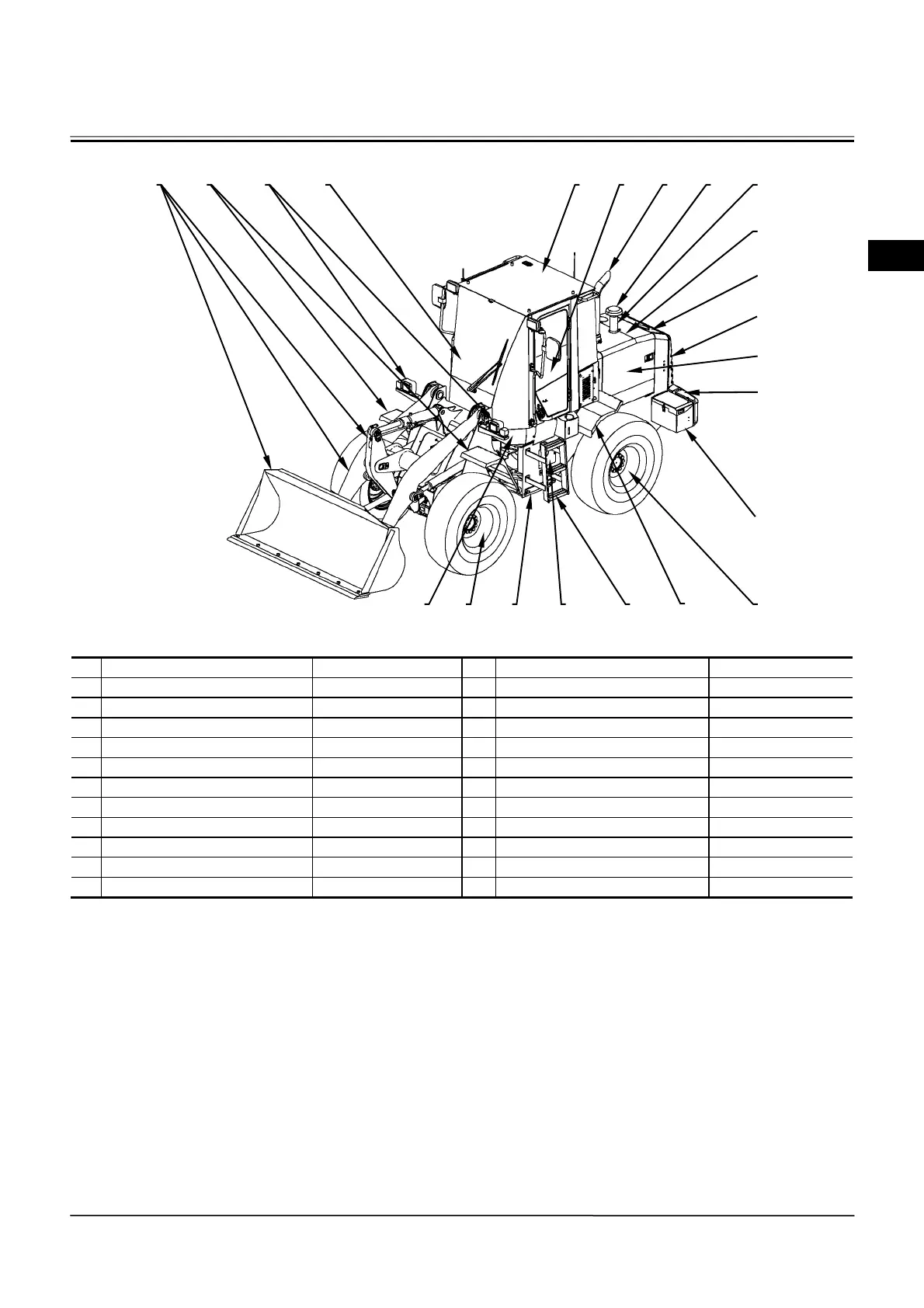

Surfaces to Be Painted Painting Color Surfaces to Be Painted Painting Color
1 Front Attachment YR-01[TAXI Yellow] 12 Rear Grill Not painted
2 Front Fender YR-01[TAXI Yellow] 13 Side Cover HG Beige Deep
3 Lamp Bracket Warm Gray 14 Counter weight YR-01[TAXI Yellow]
4 Inside of Cab HG Beige Deep 15 Battery Box YR-01[TAXI Yellow]
5 Outside of Cab HG Beige Deep 16 Rim YR-01[TAXI Yellow]
6 Cockpit and mounting parts HG Beige Deep 17 Rear Fender HG Beige Deep
7 Tail Pipe Not painted 18 Step Warm Gray
8 Pre-Cleaner Not painted 19 Side Cover YR-01[TAXI Yellow]
9 Extension HG Beige Deep 20 Articulate Lock Bar Red
10 Cover YR-01[TAXI Yellow] 21 Cockpit Skirt HG Beige Deep
11 Grill Support HG Beige Deep
IMPORTANT: When cleaning around front
attachment or cylinder, etc. fitted
with HN bushing, do not pour
washing liquid directly on the
bushing.
The ambient temperature should not
exceed 70 °C (158 °F) when painting
and drying.
1 2 3 4 5 6 7 8 9
10
16
17
181921
12
11
13
14
15
16 20
To Next Page
