139
MAINTENANCE

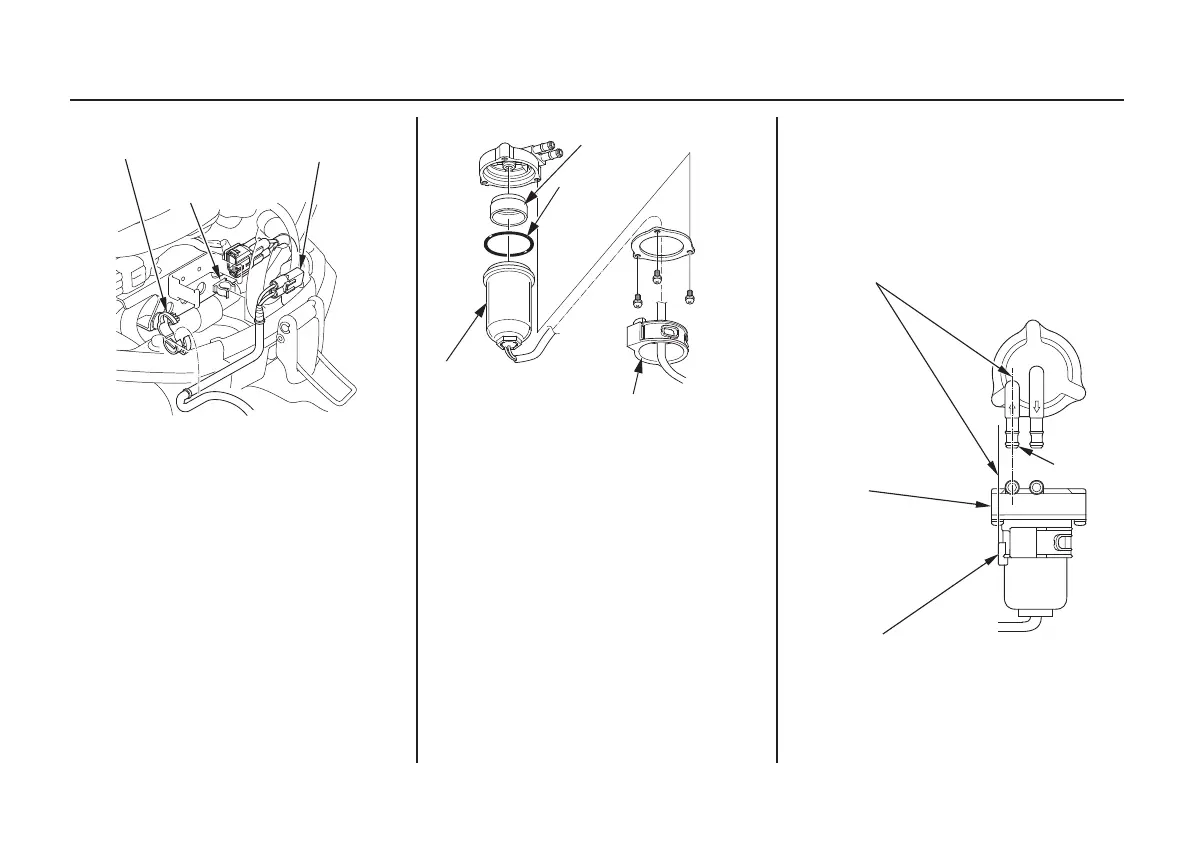

3. Open the harness clip and remove
the harness from the clip C, then
disconnect the water level sensor 2
pin connector.
4. Pinch the fuel tubes with tube clips
to prevent fuel leakage.
5. Disconnect the fuel tubes from the
water separator.
6. Remove the three screws and
separate the water separator cup
from the body.
7. Thoroughly clean the water
separator cup.
8. Reassemble the water separator
body and the cup using a new
O-ring.
TIGHTENING TORQUE:
4.2 N·m (0.43 kgf·m, 3.1 lbf·ft)
• Assemble so the flat part on the
back of the suspension is parallel to
the water separator joint as shown
below.
HARNESS
CLIP
WATER LEVEL SENSOR
2 PIN CONNECTOR
CLIP C
CUP
O-RING
(Replace)
WAT ER
SEPARATOR CUP
SUSPENSION
STRAP
Assemble so the flat part of the
suspension and the water separator
joint are parallel to each other.
JOINT
WATER
SEPARATOR
FLAT PART ON BACK
OF SUSPENSION
