CONTROLS AND FEATURES (R type)
Shifting gear into forward, reverse, or
neutral and the engine speed
adjustment can be performed with the
remote control lever.
FORWARD:
Moving the lever to the FORWARD
position (i.e. approximately 35° from
the NEUTRAL position) engages the
gear into forward. Moving the lever
further from the FORWARD position
will increase the throttle opening and
the boat forward speed.
NEUTRAL:
Engine power is cut off from the
propeller.
REVERSE:
Moving the lever to the REVERSE
position (i.e. approximately 35° from
the NEUTRAL position) engages the
gear into reverse. Moving the lever
further from the REVERSE position
will increase the throttle opening and
the boat reverse speed.

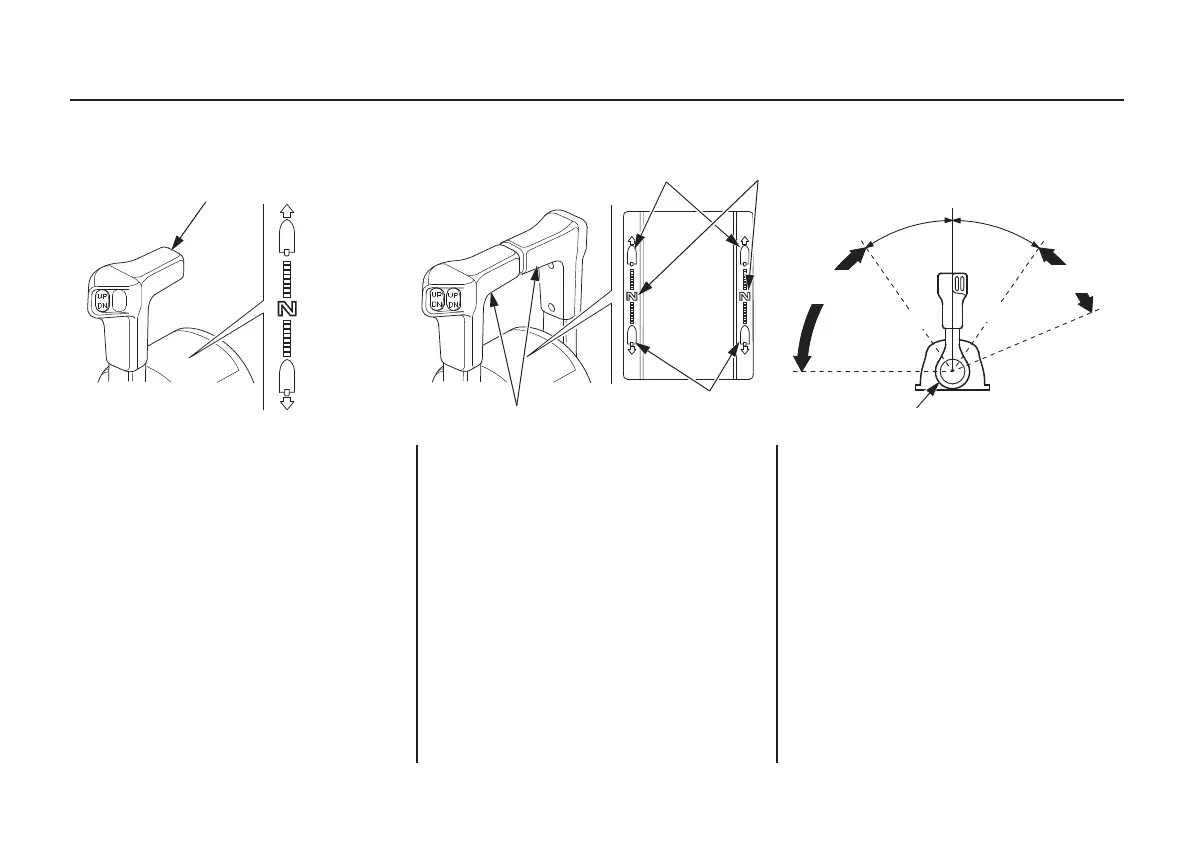

Remote Control Lever (R3 type)
REMOTE CONTROL LEVER
(SINGLE TYPE)
FORWARD
NEUTRAL
REVERSE
(DUAL TYPE)
REMOTE CONTROL LEVERS
FORWARD
NEUTRAL
REVERSE
MAXIMUM
MAXIMUM
35°35°
NEUTRAL
FORWARD
REVERSE
THROTTLE
OPENING
MINIMUM
MINIMUM
THROTTLE
OPENING
SHIFT SHIFT
REMOTE CONTROL LEVER
