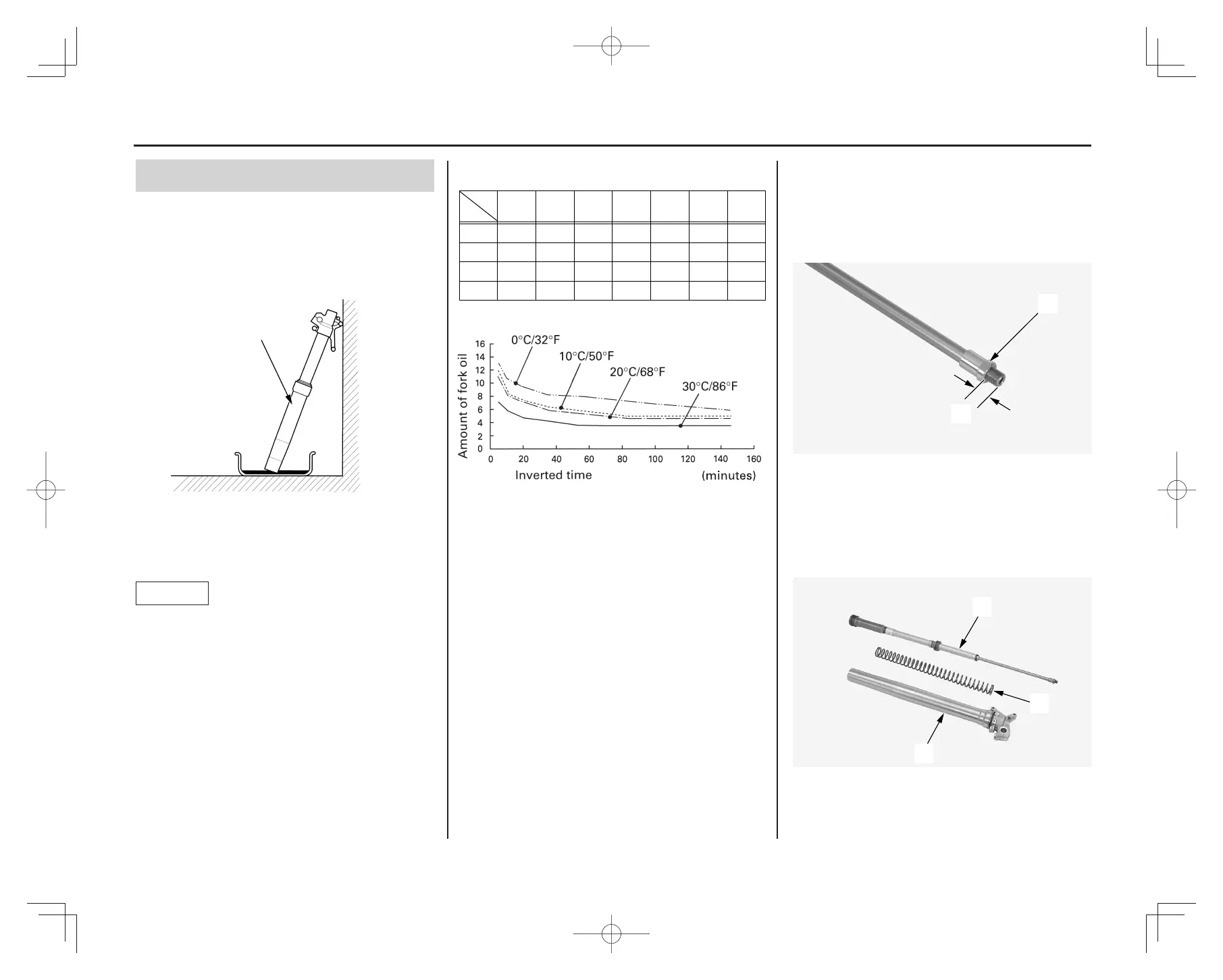

120 Adjustments for Competition
Front Suspension Adjustments
Fork Assembly
1. Drain the fork oil from the fork assembly (1)
by placing it upside down. (About 0.2 US
oz (7cm
3
) of fork oil will be left in the fork
assembly when it is left inverted for about 20
minutes at 20°C (68°F).)
(1)
(1) fork assembly
To properly dispose of drained fluids, refer to You
& the Environment (page 151).
NOTICE
Improper disposal of drained fluids is harmful to
the environment.
2. Tighten the fork center bolt lock nut (2) fully
and measure the thread length (A) as shown.
Standard: 0.4 – 0.5 in (11 – 13 mm)
Wipe the oil completely off the fork damper.
(2)
(A)
(2) fork center bolt lock nut
(A) thread length
3. Blow out the oil completely off the fork
spring (3) using the compressed air. Install
the fork spring. Install the fork damper
assembly (4) to the fork assembly (1).
(4)
(3)
(1)
(1) fork assembly
(3) fork spring
(4) fork damper assembly
Amount of fork oil left in the fork
(without damper and spring) unit: cm
3
minute
°
C/
°
F
30/86
20/68
10/50
0/32
5
7.1
10.6
11.8
12.9
10
5.9
8.2
8.3
10.6
20
4.7
7.1
7.2
9.4
35
4.2
5.9
6.2
8.2
55
3.5
5.6
5.8
7.9
85
3.5
4.7
4.9
7.1
145
3.5
4.7
4.8
5.9
(cm
3
)
17CRF450X31MEY710.indb12017CRF450X31MEY710.indb120 2016/06/0811:46:142016/06/0811:46:14
