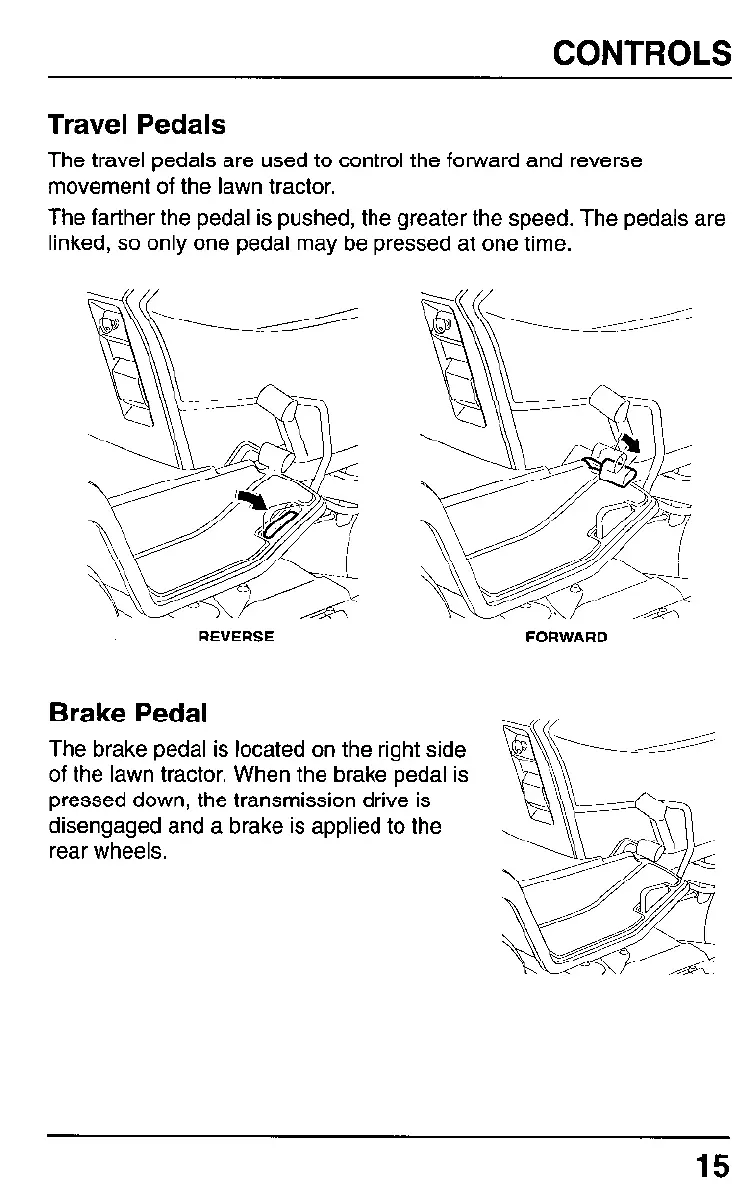

CONTROLS
Travel
Pedals
The
travel
pedals
are
used
to
control
the
forward
and
reverse
movement
of
the
lawn
tractor.
The
farther
the
pedal
is
pushed,
the
greater
the
speed.
The
pedals
are
linked,
so
only
one
pedal
may
be
pressed
at
one
time.
REVERSE
Brake
Pedal
The
brake
pedal
is
located
on
the
right
side
of
the
lawn
tractor.
When
the
brake
pedal
is
pressed
down,
the
transmission
drive
is
disengaged
and
a
brake
is
applied
to
the
rear
wheels.
FORWARD
15
16
18
