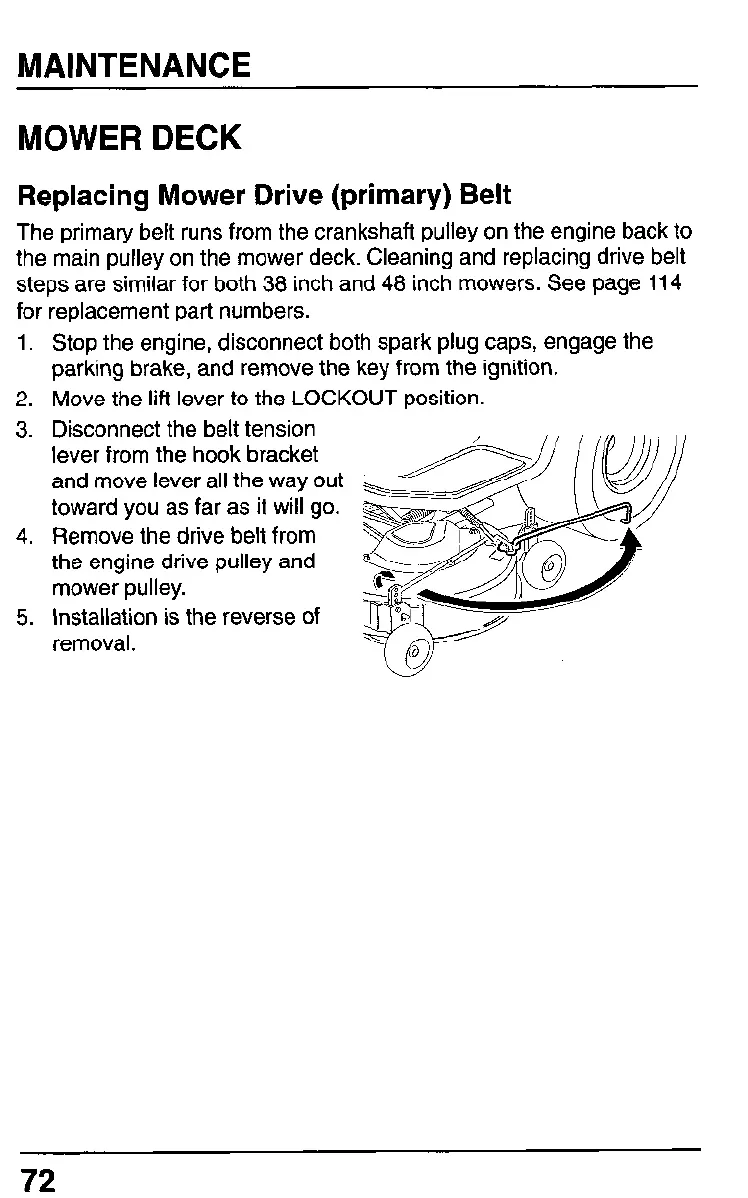

MAINTENANCE
MOWER DECK
Replacing Mower Drive (primary) Belt
The primary belt runs from the crankshaft pulley on the engine back to
the main pulley on the mower deck. Cleaning and replacing drive belt
steps are similar for both 38 inch and 48 inch mowers. See page 114
for replacement part numbers.
1.
2.
3.
4.
5.
Stop the engine, disconnect both spark plug caps, engage the
parking brake, and remove the key from the ignition.
Move the lift lever to the LOCKOUT position.
Disconnect the belt tension
lever from the hook bracket
and move lever all the way out
toward you as far as it will go.
Remove the drive belt from
the engine drive pulley and
mower pulley.
Installation is the reverse of
removal.
72
