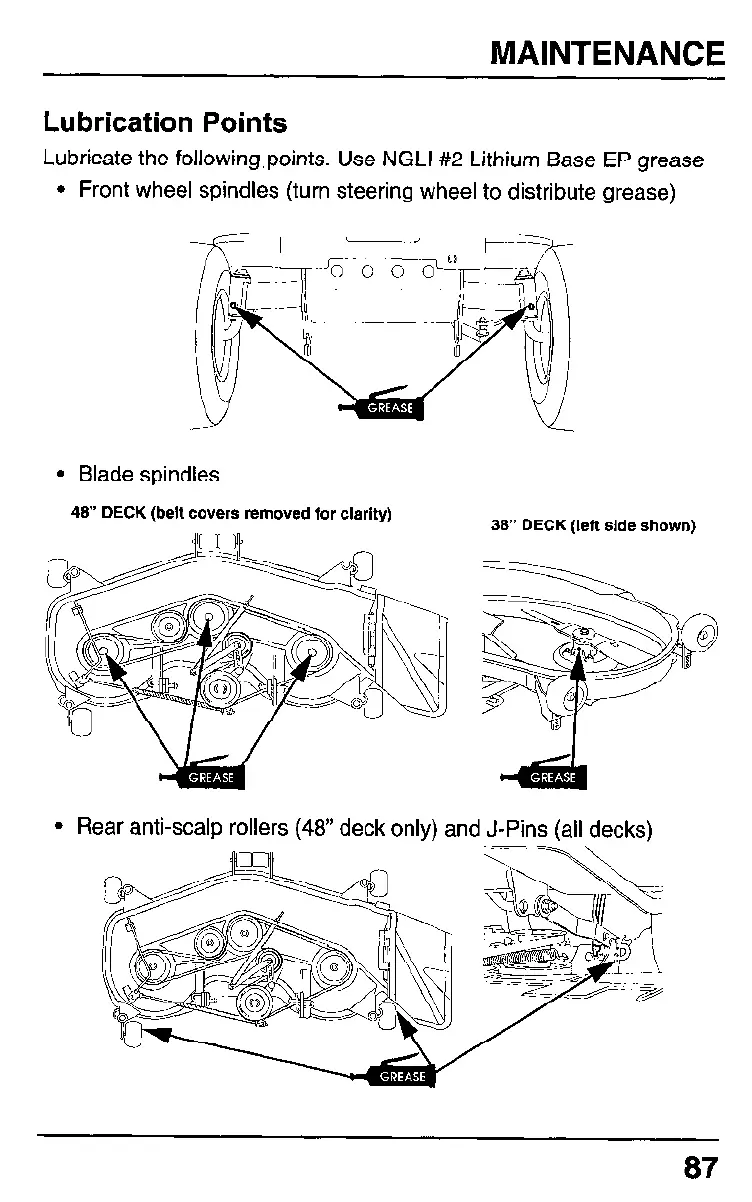

MAINTENANCE
Lubrication
Points
Lubricate
the
following,points.
Use
NGLI
#2
Lithium
Base
EP
grease
l
Front
wheel
spindles
(turn
steering
wheel
to
distribute
grease)
l
Blade
spindles
48”
DECK
(belt
covers
removed
for
clarity)
36”
DECK
(left
side
shown)
l
Rear
anti-scalp
rollers
(48”
deck
only)
and
J-Pins
(all
decks)
87
88
90
